Quick Details
-
Power (kW):
-
4
-
Range of Spindle Speed(r.p.m):
-
2500 - 6000 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Jieshun
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
500*600*1250mm
-
Weight (KG):
-
300 KG
-
Marketing Type:
-
New Product
-
Production capacity:
-
160-800kg/h
-
Feeding size:
-
<30mm
-
Fineness of products:
-
20-120mesh
-
Motor power:
-
11kw
-
Spindle speed:
-
3400r/min
-
Overall dimension:
-
900*800*1550mm
-
Gross weight:
-
420kg
-
Voltage and Frequency:
-
Customized
-
Function:
-
crushing
-
MOQ:
-
1 Set
Quick Details
-
Output (kg/h):
-
50 - 2000 kg/h
-
Feeding Size (mm):
-
10 - 100 mm
-
Output Size (mesh):
-
20 - 120 mesh
-
Power (kW):
-
4
-
Range of Spindle Speed(r.p.m):
-
2500 - 6000 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Jieshun
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
500*600*1250mm
-
Weight (KG):
-
300 KG
-
Marketing Type:
-
New Product
-
Production capacity:
-
160-800kg/h
-
Feeding size:
-
<30mm
-
Fineness of products:
-
20-120mesh
-
Motor power:
-
11kw
-
Spindle speed:
-
3400r/min
-
Overall dimension:
-
900*800*1550mm
-
Gross weight:
-
420kg
-
Voltage and Frequency:
-
Customized
-
Function:
-
crushing
-
MOQ:
-
1 Set
Main Application
The machine is widely used for material crushing in the industries of pharmaceutics, chemical and foodstuff, etc.
Working Principle
The machine uses high-speed relative motion of the active tooth plate and the fixed tooth plate to impact and crush the raw material. The different size of granules can be acquired by changing different screen. The whole machine is designed according to GMP standard and is made of stainless steel. The machine has the advantages of simple structure, low energy consumption, easy cleaning and is an ideal crushing equipment.
Classification of crushing knife plate
Tooth type/Hexagon bar type/Mill type
Hammer type /Fixed hammer type
Turbine type
Air-cooled type/Blade type/Wingpiece type
Cutter type/Active cutter type
Active Hammer type/Swing hammer type
Different knife plate structure can be selected according to the specific properties of different materials,and our salesman can recommend the suitable knife plate structure for you.
Main features
1.The whole machine is designed according to GMP standard and is made of stainless steel.
2.The machine has the advantages of simple structure, low energy consumption, easy cleaning and is an ideal crushing equipment currently.
3.For heat-sensitive materials or those materials that will become soft or even melt at a higher temperature,the water cooling device can be added to the machine [as shown below].
4.The machine has different types of configuration, such as single machine form,dust removal form,and cyclone dust removal form that suitable for assembly-line production.
|
Model |
15B |
20B |
30B |
40B |
50B |
60B |
80B |
100B |
|
Production capacity(kg/h) |
20-150 |
40-200 |
80-400 |
160-800 |
200-1000 |
250-1500 |
350-2000 |
500-3000 |
|
Feeding size(mm) |
<10 |
<10 |
< 12 |
< 15 |
<18 |
< 20 |
< 25 |
< 28 |
|
Fineness of products(mesh) |
20-120 |
20-120 |
20-120 |
20-120 |
20-120 |
20-120 |
20-120 |
20-120 |
|
Motor power(kw) |
2.2 |
4 |
7.5 |
11 |
15 |
22 |
30 |
37 |
|
Spindle speed(r/min) |
6000 |
4500 |
3800 |
3400 |
3000 |
2800 |
2400 |
2000 |
|
Overall dimension(mm) |
550*400 *850 |
600*550 *1250 |
700*600 *1450 |
900*800 *1550 |
1050*850 *1750 |
1100*900 *1880 |
1200*950 *2000 |
1350*1000 *2100 |
|
Weight(kg) |
150 |
220 |
280 |
420 |
600 |
900 |
1250 |
1580 |
The above is our technical data. We can also design and manufacture different varieties upon customer's request.
Machine configuration scheme
Vertical single machine → Horizontal single machine → Common dust-collecting → V ertical universal crusher with c yclone dust-collecting → Horizontal universal crusher with c yclone Dust-collecting (The attached pictures show the different configuration schemes )

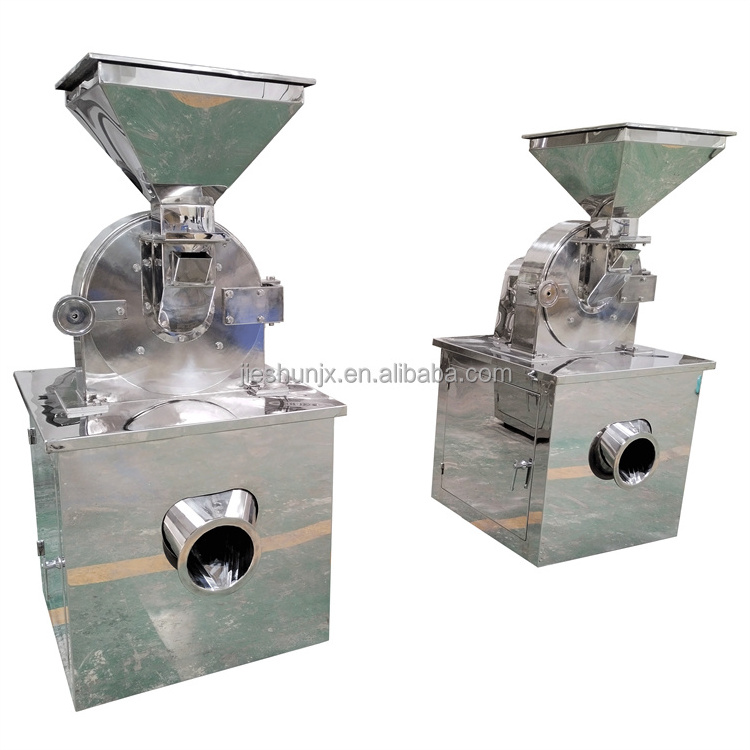

1.For crushing materials, there is no dust flying in the crushing process or no need for dust-collecting, we recommend the single machine; According to the workplace requirements , different production requirements, you can choose Vertical single machine or Horizontal single machine.
As shown in the picture below:
2.In the production process, dust removal is needed, however, if the production capacity is not big and no necessary to join the assembly line for continuous discharging work, you can choose Common dust-collecting;If continuous discharging is required,you can choose V ertical Universal Crusher With C yclone dust-collecting.
As shown in the picture below :
3.If you need large production capacity and continuous discharging ,please choose the Horizontal Universal Crusher With C yclone dust-collecting, the equipment operation is better.
Packing & Delivery
|
|
Packaging |
|
|
Size |
It depends |
|
|
Weight |
It depends |
|
|
Packaging Details |
The normal package is wooden box(Size: L*W*H). If export to E uropean countries,the wooden box will be fumigated. |
|
|
|
Packaging |
|
|
Size |
20 ft container; 40 ft container |
|
|
Weight |
It depends |
|
|
Packaging Details |
For big machine, we will pack the machine inside container directly with steel wires and nails.Then the machine won't move inside the container. |
|
FAQ
If you want to send inquiry to me about our crusher,could you please tell me?
1.What material you want to crush,is it dry?What is the size of raw material?
2.What capacity you expect?(kg/h)
3.What mesh or mm or micron(size)of the powder you want?
4.What voltage you want?For example,380V 50HZ 3P;440V 60HZ 3P;220V 50HZ 3P...
5.Usually we use stainless steel 304,if you want stainless steel 316,or carbon steel,or the other material,it's OK and please tell us.
Then our communication will be more efficient.
Thank you!
Our Service
1.Our engineers are able to go abroad to install the machines.
2.One year quality assurance:Guarantee against defects in materials and workmanship of equipment and parts for one year.Any parts in need of replacement will be shipped free of charge but labor for installation will not be included.Warranty does not cover abuse or user error.
3.24-hour on line service:Any questions will be replied within 24 hours.
4.Our company can agree payment by T/T, L/C,Cash.
5.Our company has our own exporting right and forwarder.
