- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Yachts/Boats Mooring
-
Floats Material:
-
LLDPE/HDPE
-
Frame Material:
-
Alu. Alloy/Galv. Steel
-
Decking Material:
-
WPC/Solid/FRP/Poly.
-
Fasteners Material:
-
SUS316 Grade
-
Dimension:
-
Accept Customizing
-
Feature:
-
Maintenance Free
-
Lifespan:
-
20 Years
-
Warranty:
-
3 Years
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HAO
-
Product Name:
-
Marina Floating Pontoon
-
Application:
-
Yachts/Boats Mooring
-
Floats Material:
-
LLDPE/HDPE
-
Frame Material:
-
Alu. Alloy/Galv. Steel
-
Decking Material:
-
WPC/Solid/FRP/Poly.
-
Fasteners Material:
-
SUS316 Grade
-
Dimension:
-
Accept Customizing
-
Feature:
-
Maintenance Free
-
Lifespan:
-
20 Years
-
Warranty:
-
3 Years
Aluminium floating dock with wood deck
Dock Description
|
Metal Frame Material
|
Marine Grade Aluminium 6061-T6
|
Hot Dip Galvanized Steel(Optional)
|
|
Dock Floats Material
|
LLDPE/HDPE with EPS Foam Filled
|
LLDPE/HDPE with EPS Foam Filled
|
|
Decking Boards
|
WPC/Solid Wood/FRP/Poly/Aluminium
|
WPC/Solid Wood/FRP/Poly/Aluminium
|
|
Structure Connection
|
Flexible Connection Solution
|
Flexible Connection Solution
|
|
Anchorage Solutions
|
Piling/Sinker/Elastic/H-Beam/Stiff Arm
|
Piling/Sinker/Elastic/H-Beam/Stiff Arm
|
|
Main Accessories
|
Fender/Cleat/Pedestal/Gangway
|
Fender/Cleat/Pedestal/Gangway
|
Project Cases
Commercial Marina Dock [Aluminium Structure]
Commercial Marina Dock [Galvanized Steel Structure]
Commercial Marina Dock [Galvanized Steel Structure]
Residential Marina Dock [Aluminium Structure]
Commercial Marina Dock
[Galvanized Steel Structure]
Commercial Marina Dock [Galvanized Steel Structure]
Residential Boat Dock [Aluminium Structure]
Commercial Marina Dock [Galvanized Steel Structure]
Residential Boat Dock [Wooden Keel Structure]
Residential Boat Docks
Technique Paramenters
|
Item
|
Dimension
|
Capacity
|
Freeboard
|
Draft
|
Dead Load
|
|
Aluminium Structure Floating Main Walkway #1
|
5.8m×2.0m
|
2.4 KPA
|
400~600mm
|
50~250mm
|
67.0 KG/m2
|
|
|
6.0m×2.0m
|
|
|
|
|
|
|
8.0m×2.0m
|
|
|
|
75.0 KG/m2
|
|
|
10.0m×2.0m
|
|
|
|
|
|
Aluminium Structure Floating Main Walkway #2
|
5.8m×2.5m
|
2.4 KPA
|
400~600mm
|
50~250mm
|
53.0 KG/m2
|
|
|
6.0m×2.5m
|
|
|
|
|
|
|
8.0m×2.5m
|
|
|
|
60.0 KG/m2
|
|
|
10.0m×2.5m
|
|
|
|
|
|
|
11.85m×2.5m
|
|
|
|
67.5 KG/m2
|
|
|
12.0m×2.5m
|
|
|
|
83.0 KG/m2
|
Parts & Accessories
LLDPE Floats

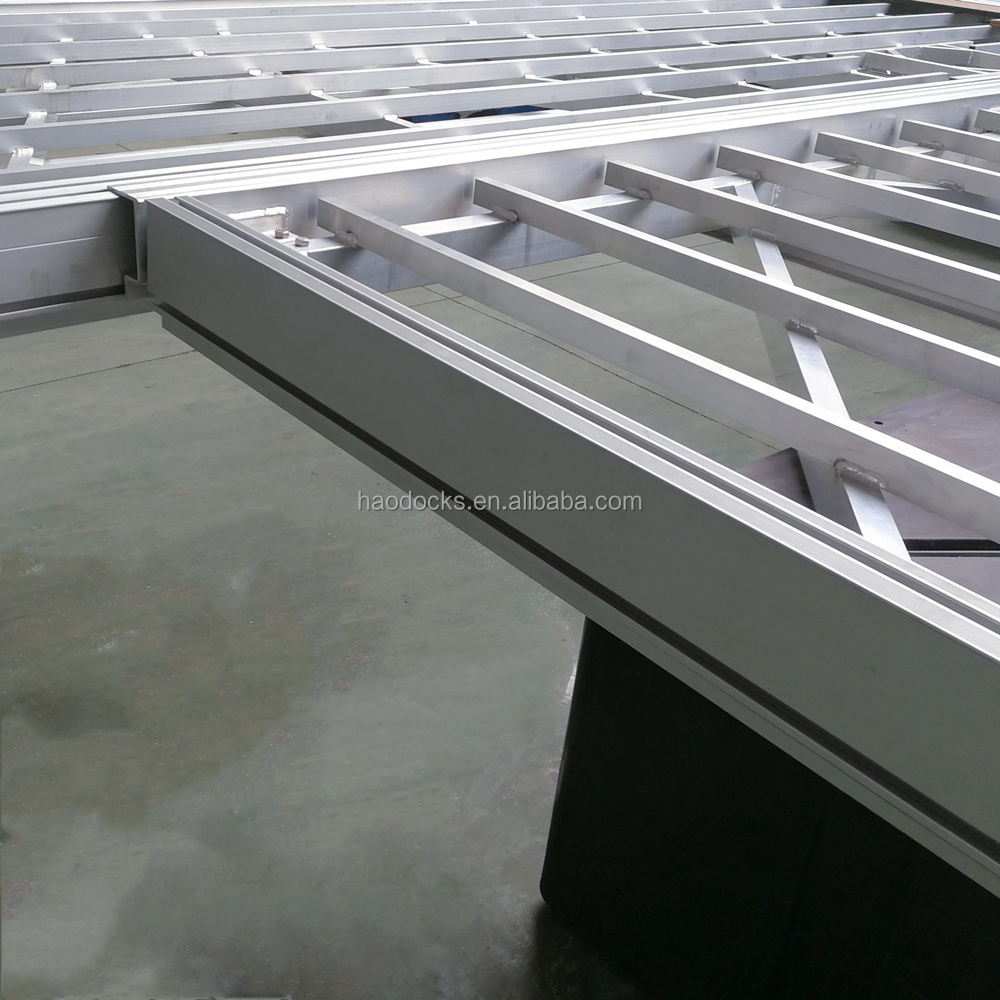

Aluminium Frame
Aluminium Gangway
WPC Decking
SUS316 Cleat
Edge Fender
Anchorage Solutions
Pile Guide
H-Beam
Stiff Arm
Sinker & Chain
Elastic Mooring
Packing & Shipping
Customers' Questions
Q: How is the installation?
A: It will be easy if you follow our guide.
Q: What raw material do you use? Will it pollute the water?
A: We use green & recyclable raw materials. No pollution and environmentally friendly.
Q: How do i know the exactly items i need for my project?
A: Let us know the full details of your project. So we can let our engineer to analyze and proceed with layout & solution.
Q: What is the lifespan of your dock?
A: Actually it depends on the environmental condition, like UV, weather, wave, wind, temperature, salinity and etc. Normally, 20 years in freshwater and 15 years in blackish water.
Q: Are you manufacturer?
A: Yes, we have our own factory.
Q: What is the product warranty?
A: Warranty is three years for main parts and one year for accessories.
Q: Do you offer OEM/ODM?
A: Yes, We accept OEM & ODM services.
Q: What is the payment?
A: Paypal,Western Union, T/T, L/C.
Q: What will be the delivery time?
A: It will be 15 working days after payment received.
Q: How to ship the order?
A: We ship by sea. Dock sections will get dismantled before loading into containers.
Q: How to proceed with an order?
A: We will send the invoice after details decided or agreement reached. Bulk orders will be shipped by sea within agreed period, when production finished and inspection fulfilled.
Q: Can I visit your company?
A: Sure, we are located in Taizhou of Zhejiang. Please discuss with our sales for the arrangement of the reception.
A: It will be easy if you follow our guide.
Q: What raw material do you use? Will it pollute the water?
A: We use green & recyclable raw materials. No pollution and environmentally friendly.
Q: How do i know the exactly items i need for my project?
A: Let us know the full details of your project. So we can let our engineer to analyze and proceed with layout & solution.
Q: What is the lifespan of your dock?
A: Actually it depends on the environmental condition, like UV, weather, wave, wind, temperature, salinity and etc. Normally, 20 years in freshwater and 15 years in blackish water.
Q: Are you manufacturer?
A: Yes, we have our own factory.
Q: What is the product warranty?
A: Warranty is three years for main parts and one year for accessories.
Q: Do you offer OEM/ODM?
A: Yes, We accept OEM & ODM services.
Q: What is the payment?
A: Paypal,Western Union, T/T, L/C.
Q: What will be the delivery time?
A: It will be 15 working days after payment received.
Q: How to ship the order?
A: We ship by sea. Dock sections will get dismantled before loading into containers.
Q: How to proceed with an order?
A: We will send the invoice after details decided or agreement reached. Bulk orders will be shipped by sea within agreed period, when production finished and inspection fulfilled.
Q: Can I visit your company?
A: Sure, we are located in Taizhou of Zhejiang. Please discuss with our sales for the arrangement of the reception.
