Quick Details
-
Filter material:
-
Ahlstrom filter cartridge
-
Number of filter cartridges:
-
9
-
Filter area:
-
243m2
-
Filter efficiency:
-
0.3μm; >99.9%
-
Processing air volume:
-
6500-9000m3/h
-
Voltage:
-
380V50Hz
-
Motor power:
-
11kW
-
Noise:
-
less than 75dB(A)
-
Dust cleaning method:
-
Pulse automatic blowing-back dust cleaning
-
color:
-
customized
Quick Details
-
Weight (KG):
-
960
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
POWER SPACE
-
Filter material:
-
Ahlstrom filter cartridge
-
Number of filter cartridges:
-
9
-
Filter area:
-
243m2
-
Filter efficiency:
-
0.3μm; >99.9%
-
Processing air volume:
-
6500-9000m3/h
-
Voltage:
-
380V50Hz
-
Motor power:
-
11kW
-
Noise:
-
less than 75dB(A)
-
Dust cleaning method:
-
Pulse automatic blowing-back dust cleaning
-
color:
-
customized

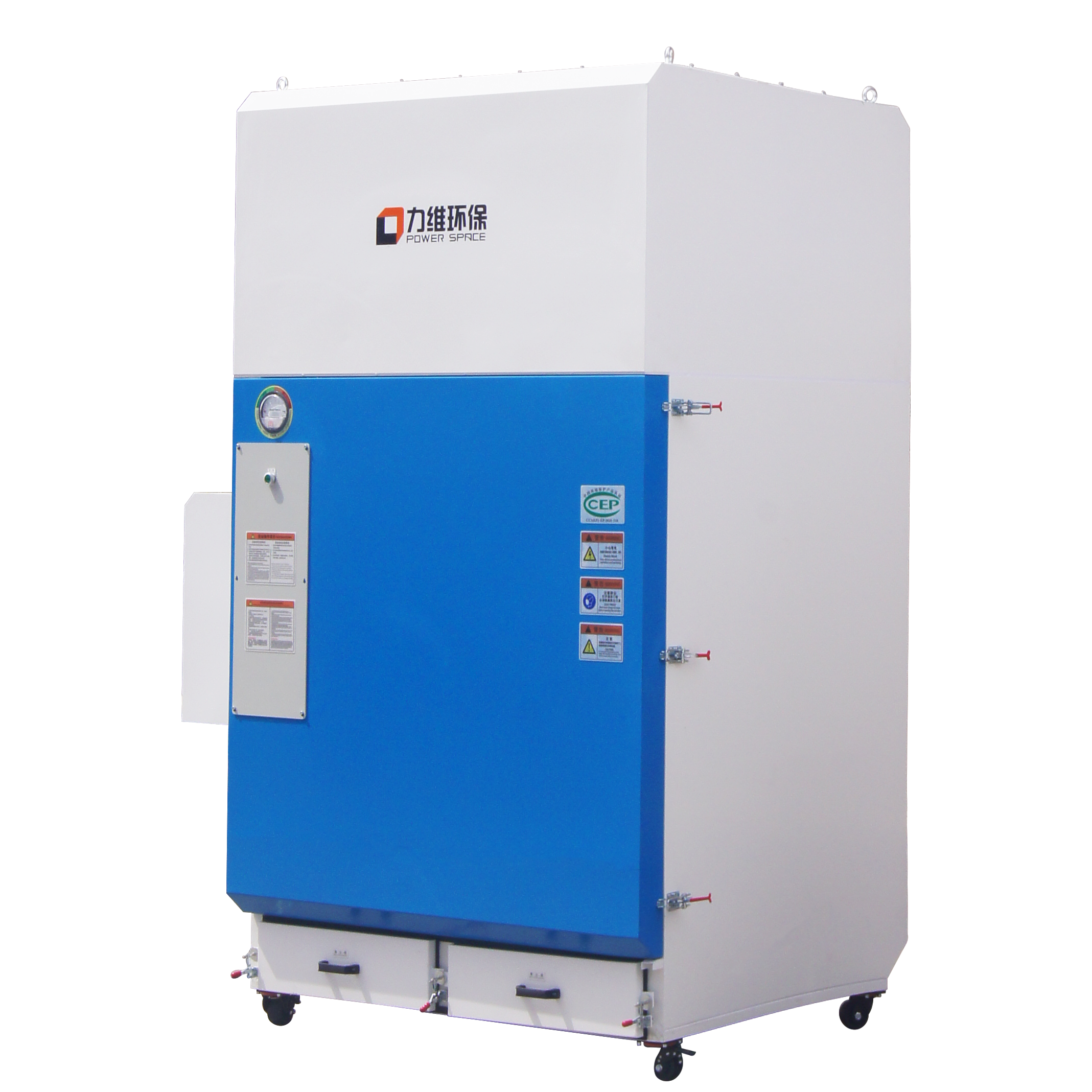

2024 New designed laser cutting dust collector fume extraction system
|
Item
|
Parameters
|
|
|
||
|
Model
|
LW1204-055
|
LW1206-075
|
LW1209-110
|
||
|
Processing capacity
|
2500-4500m³/h
|
4500-6500m³/h
|
6500-9000m³/h
|
||
|
Voltage
|
380V50Hz
|
380V50Hz
|
380V50Hz
|
||
|
Power
|
5.5kW
|
7.5kW
|
11kW
|
||
|
Filter area
|
56m²
|
84m²
|
144m²
|
||
|
QTY of filter cartridges
|
4
|
6
|
9
|
||
|
Compressed air (Mpa)
|
0.5-0.6
|
0.5-0.6
|
0.5-0.6
|
||
|
Filter element
|
Ahlstrom nano flame-retardant
|
Ahlstrom nano flame-retardant
|
Ahlstrom nano flame-retardant
|
||
|
Filter efficiency
|
0.3μm; >99.9%
|
0.3μm; >99.9%
|
0.3μm; >99.9%
|
||
|
Noise
|
≤76dB
|
≤76dB
|
≤76dB
|
||
|
Size(L*W*H)
|
1100*1100*1950mm
|
1100*1100*2470mm
|
1100*1100*2870mm
|
||
|
Dust cleaning method
|
Pulse automatic
blowing-back dust Removal system by compressed air |
Pulse automatic
blowing-back dust removal system by compressed air |
Pulse automatic
blowing-back dust removal system by compressed air |
||
Q:Do you have stock products to sell?
A:We produce according to order, so there is almost no stock. We have our own brand of POWER SPACE, but OEM order is acceptable .
Q:What is your minimum order quantity?
A:1set.
Q:What certificates can you offer?
A: CE, ISO
Q:What kind of payment do you accept ?
A: T/T, L/C, Alibaba Credit Insurance,etc
Q:What is the status of After-sale Services for customers and machines?
A:We provide on-line free technical support for whole life. Also ,if necessay, egineers available to service overseas, but extra charges will be charged.
Q:How many years since you have been in this field ?
A:We have been in this field for more than 12 years .We have rich experience for designing and manufacuturing the machinery.
A:We produce according to order, so there is almost no stock. We have our own brand of POWER SPACE, but OEM order is acceptable .
Q:What is your minimum order quantity?
A:1set.
Q:What certificates can you offer?
A: CE, ISO
Q:What kind of payment do you accept ?
A: T/T, L/C, Alibaba Credit Insurance,etc
Q:What is the status of After-sale Services for customers and machines?
A:We provide on-line free technical support for whole life. Also ,if necessay, egineers available to service overseas, but extra charges will be charged.
Q:How many years since you have been in this field ?
A:We have been in this field for more than 12 years .We have rich experience for designing and manufacuturing the machinery.
Q:How to contact us?
A: Wechat/Mobile:+86 15192713727 , e-mails: sales2@liweihb.com, I will reply you within 24 hours.
A: Wechat/Mobile:+86 15192713727 , e-mails: sales2@liweihb.com, I will reply you within 24 hours.
