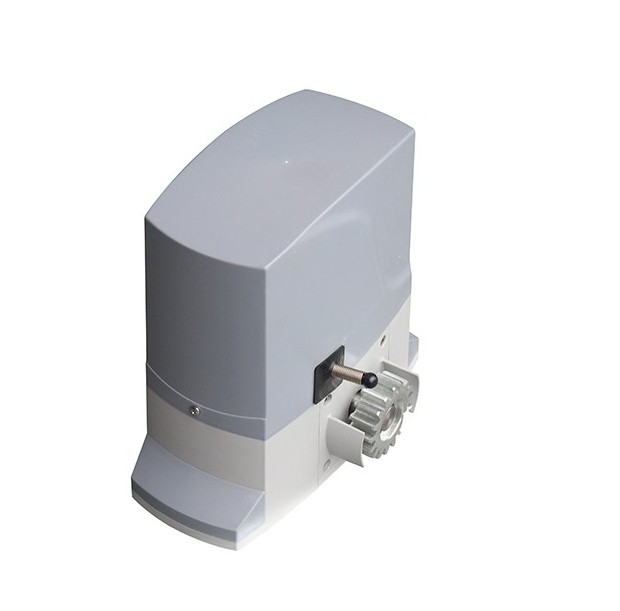

The AC powered sliding gate opener is designed to operate sliding gates up to 800kg in weight. It is an all in one motor and control panel, making it simple to install and extremely compact and neat.
* Weatherproof
* Manual Release
* All in one internal Motor and Weather Proof control panel
1.) Totally integrated electrical mechanical system (excludes racks)
2.) Control board interface for optional impact-proof infrared photocells
3.) Alarm lamp interface
4.) Automatic delayed closing
5.) Adjustable resistance sensitivity
6.) Auto gate stop and re-open when an obstacle is encountered
7.) Wireless remote control or wired remote control are optional
|
Model No.
|
PYM-A2401
|
PYM-A2204
|
PYM-A2205
|
|
Rated Voltage
|
240V 50HZ/120V 60HZ
|
240V 50HZ/120V 60HZ
|
240V 50HZ/120V 60HZ
|
|
Electric Motor
|
24V DC
|
220VAC
|
220VAC
|
|
Rated Motor Power
|
280W
|
380W
|
200W
|
|
Gear Modulus
|
M=4
|
M=4
|
M=4
|
|
Max loading Weight
|
500KG
|
800KG
|
1300KG
|
|
Open/Close Speed
|
12m/min
|
12m/min
|
18m/min
|
|
Output Speed
|
50r/min±10%
|
50r/min±10%
|
50r/min±10%
|
|
Output Torque
|
16.8-32.0N.m
|
16.8-32.0N.m
|
22.0Nm
|
|
Limit Switch Type
|
Magnetic/Spring
|
Magnetic/Spring
|
Spring
|
|
Max.Thrust
|
1100N
|
1100N
|
1100N
|
|
Noise
|
≤55dBa
|
≤55dBa
|
≤55dBa
|
|
Working Tenperature
|
-20°C~+55°C
|
-20°C~+55°C
|
-20°C~+55°C
|
|
Duty Cycle
|
80%
|
80%
|
80%
|
One set sliding gate opener including those items .
- 1 x Motor with built in Control Panel
- 2 x Remote Controls
- 2 x Manual Override Keys
- 1 x Motor mounting base plate
- 1 x Instruction Manual
MATCHABLE CONTROL BOARD
voltage:220v/110v AC
Frequency:433.92mhz
Modulation:ASK
Memory:30pcs remote control
Output voltage:AC24V
voltage:220V/110 AC
Frequency:433.92mhz
Modulation:ASK
Memory: 60pcs remote control
Output voltage: AC 24V
Adjustable working time
Adjustable resistance sensitivity
Adjust auto-closing time
Terminal availble for loop detector ,photocell,push button, keypad , access control equipment etc.
Custom rolling code makes the system more secure, high anti-theft performance
JJ-HW-01
The photocells should be installed at height of more than 20cm above the ground.
The distance between transmitter and receiver should be more than 50cm.
Working range 30-40m
More wearable
Longer using life
JJ-JD02
For lamp optional:
DC24V
AC220V
AC110V
AC/DC 12V-265V
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
|
Size
|
32 (L) * 24(W) *30 (D)
|
|
Weight
|
12KG
|
|
Packing Details
|
The normal package is carton(Size: L*W*H). .If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
FAQ
Q1: What is the Warranty for swing gate opener ?
A1:we have 1 year warranty time ,If any quality problems on our side occured in this period ,we will take resposible for it
Q2: What is connponents of 1 set swing gate opener ?
A2:Each Kit swing gate opener inclduing 2motors , 1 control panel , 2 remote control, 1 manual book, 1 set hardward accessories for installation.
Q3:What is the securiy device for swing gate opener ?
A3: Our control panel have terminals for infrared sensor ,flashing light , it can avoid some unnecessary accident.
Q4: How about the OEM?
A4: We can put costomers' information and logo on the products.
Q5: What is package size, weight ?
A5: Package size: 79cm*31cm*10cm . Gross Weight : 13KG
Q6: What is the Volatage input ?
A6: Volatage range : 110V-240V
Q7:Is there any quick release device for power failure?
A7:Our system have clutches device , when the power failure ,just use a Allen key to release the clutch , and push the door open or close by hand
Q8:Is there cheap shipping cost to import to our country?
A8: For small order,express will be best. test 2 sets the ship cost will be competitive .
For bulk order,sea ship way is best but take much time.
For urgent orders,we suggest via air to airport plus our ship partner send to your door.
