Name: Controller
Original: China
3 Axis Automatic and 2 Axis Automatic
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
BIGA
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2850x2150x1890mm
-
Weight (KG):
-
3600
-
Power (kW):
-
22.5
-
Product name:
-

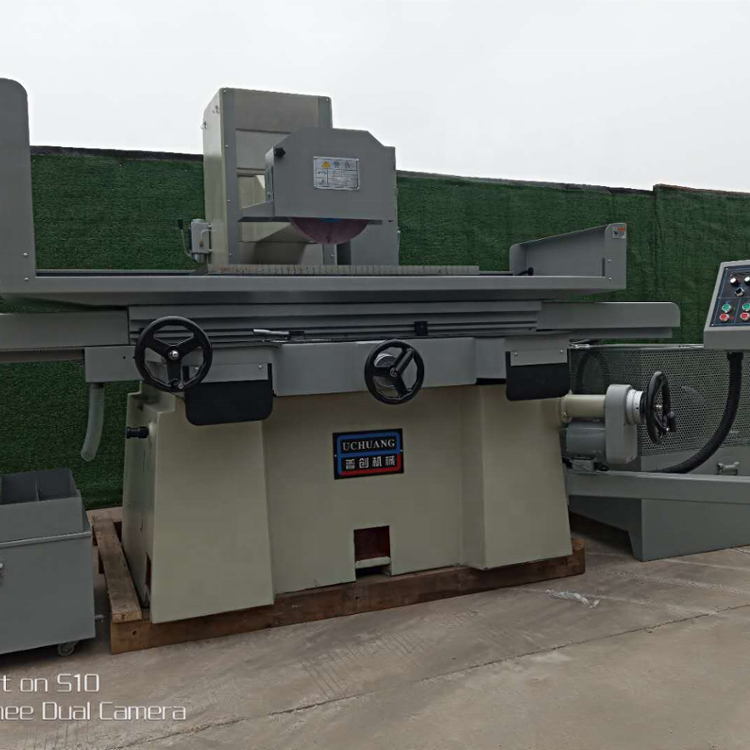

PSG40100 surface grinding machine
-
Weight:
-
3600KG
-
Table size:
-
400X1000mm
-
Function:
-
heavy cutting and fine grinding
-
Spindle motor:
-
7.5*4HXP
-
Max. Grinding Length:
-
1200
-
Power(W):
-
7.5KV
-
Max. Grinding Diameter:
-
490
Quick Details
-
Wheel Size(mm):
-
400*1000
-
Year:
-
2020
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BIGA
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2850x2150x1890mm
-
Weight (KG):
-
3600
-
Power (kW):
-
22.5
-
Product name:
-
PSG40100 surface grinding machine
-
Weight:
-
3600KG
-
Table size:
-
400X1000mm
-
Function:
-
heavy cutting and fine grinding
-
Spindle motor:
-
7.5*4HXP
-
Max. Grinding Length:
-
1200
-
Power(W):
-
7.5KV
-
Max. Grinding Diameter:
-
490
Grinding Machine
Product Application
It can be used for the plane grinding of parts. It can meet many grinding requirements, such as plane precision grinding, large allowance grinding and simple shape grinding. It can grind workpieces made of alloy steel, stainless steel, common steel and cast iron. The surface grinder has high accuracy, good reliability, reasonable structure design and sufficient static, dynamic and thermal stiffness. The accuracy of machine tools is maintained well, and advanced technology can be used to ensure that all levels of systems have good dynamic quality. The selected servo drive system has high precision, good reliability and fast response. The machine tool is easy to use, operate and maintain, beautiful in appearance and good after-sales service.
|
SPECIFICATIONS FOR PCA-40100 SURFACE GRINDING MACHINE
|
|
|
|
|||
|
General Capability
|
Table size
|
mm
|
400x1000
|
|||
|
|
X axis travel
|
mm
|
1200
|
|||
|
|
Y axis travel
|
mm
|
460
|
|||
|
Table X and Y Axis
|
Table T cell specification
|
mmxN
|
14x3
|
|||
|
|
Table speed
|
m/min
|
5-25
|
|||
|
|
Automatic feed
|
mm
|
0.1-8
|
|||
|
Motor
|
Spindle motor
|
HXP
|
7.5x4
|
|||
|
|
Hydraulic motor
|
HXP
|
3x6
|
|||
|
|
X Y axis motor
|
W
|
80
|
|||
Main Features
1)Three axis designed with high rigidity hard rail structure to ensure long-lasting precision spindle from Taiwan with spindle swing less than 2um.
2) Hydraulic system without vibration to ensure accuracy of the machine.
3) Suitable for heavy cutting and fine grinding with high processing efficiency.
4) AHR: automatic cross feed. Electronic rapid and down feed.
5) AHD: automatic cross feed. Automatic rapid up and down feed (with 750W servo motor)
Detailed Images
Machine Parts
Main Features
Name:
Work Table
Original:
China
Table Size: 250x500MM.
Machine Parts
Name:
Motor and Oil System
Original:
China
Spindle Motor: 3x2 HXP
Z Axis Motor: 80W
Y Axis Motor: 40W
Hydraulic Motor: 1x6 HXP
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
4200(L) * 2000 (W) * 1890 (D) mm
|
|
|
Weight
|
3600KGS
|
|
|
Packaging Details
|
PE film + Wood pallet. Or according to customers special request.
|
|
