60kg 120bs Mini Electromagnetic Lock for cabinet access control system

FOB Reference Price: Get Latest Price

≥1 Boxes

US $5

Free Inquiry

Customized Request

Quick Details

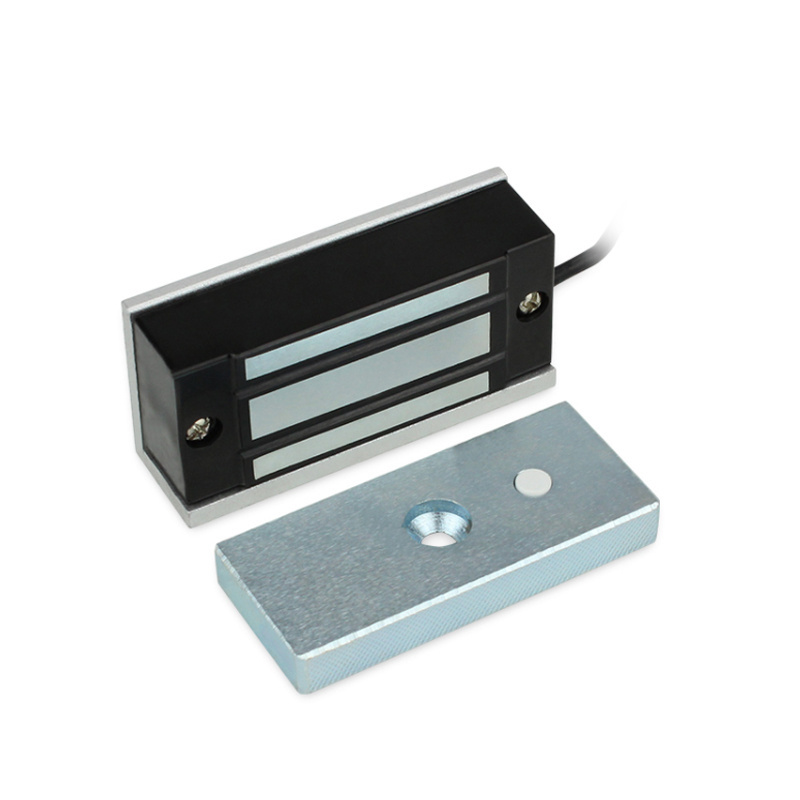

60kg 120bs Mini Electromagnetic Lock for cabinet access control system

Mini single door magnetic cabinet lock,special used to small cabinet door,like door window,

storage cupboard.Saves time and power when installation.Inward door,frameless glass door,

narrow door all have a complete set of accessories. Special Anti-residual magnetic design makes automatic access control safer and more convenient.

Specification

Size	80Lx36.5Wx24.1H(mm)
Armature Plate Dimension	75Lx32Wx10H(mm)
Holding Force	60kg(120Lbs)
Input Voltage	DC12V ( DC24V need order)
Current	12V/160mA(±10%);24V/80mA(±10%)
Suitable	File Cabinet ,Display Cabinet
Surface Temp	≤+20℃
Operating Temp	-20℃~+55℃(-4—131°F)
Humidity	0~95%(non-condensing)
Cover Finish	Anodized aluminum
Lock Finish	Zinc
Armature Plate Finish	Zinc
Weight	0.5KG
