Quick Details
-
Product name:
-
RG6T
-
Color:
-
Green Black Yellow White Blue
-
Conductor:
-
BC/CCS 1.02mm
-
Application:
-
CCTV
-
Certification:
-
CE/ROHS/ISO9001
-
Package:
-
100m/305m/500M
-
Shield:
-
Al Foil+braiding
-
Insulation:
-
Foam PE
-
Jacket:
-
PVC
Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
RG6T Coaxial Cable
-
Place of Origin:
-
Zhejiang, China
-
Product name:
-
RG6T
-
Color:
-
Green Black Yellow White Blue
-
Conductor:
-
BC/CCS 1.02mm
-
Application:
-
CCTV
-
Certification:
-
CE/ROHS/ISO9001
-
Package:
-
100m/305m/500M
-
Shield:
-
Al Foil+braiding
-
Insulation:
-
Foam PE
-
Jacket:
-
PVC
Customized CATV CCTV TV network RG6 RG59 RG11 Coaxial Cable
Overview
This 75 Ohm RG6 is the most commonly coaxial cable used in existing and next generation TV network and security
monitoring and control systems.
Features
• 75 Ohm data signal transmission;
• The inner conductor could be Copper Clad Steel or Bare Copper;
• The insulation is foam PE;
• Customized cable color , winding and connector, meet your different requirements;
• RoHS compliant;
Construction
|
Item |
Material |
Diameter(mm) |
Remarks |
|
Inner Conductor Insulation First Shield Second Shield Third Shield Jacket |
CCS Foam PE Bonded AluminumFoil AL-Mg Wire Braid Aluminum Foil PVC |
1.02 4.57 5.10 5.60 5.70 7.06 |
Per customer’s requirements: The inner conductor could be CCS or BC; The second shield could be 48,64,80,96,112,128 or 144 AL-Mg /TC wires braiding;Jacket could be PVC or PE |
Electrical Characteristics
|
Impedance (Ω) Capacitance (pF/m) Velocity of Propagation (%) Dielectric strength(kV) V.S.W.R Return Loss Screening Effectiveness(db) Min. Bending Radius (mm) Operating Temperature(°C ) |
75±3 54±2 84.0 1.6 ≤1.2 ≥20 ≥75 35.0 -25 to +70 |
Attenuation (@20 0 C)
|
Frequency(MHz) |
Max Attenuation(dB/100m) |
|
50 100 200 400 700 900 1000 |
5.2 6.8 9.4 13.9 19.0 20.6 21.5 |
Assemblies & Application

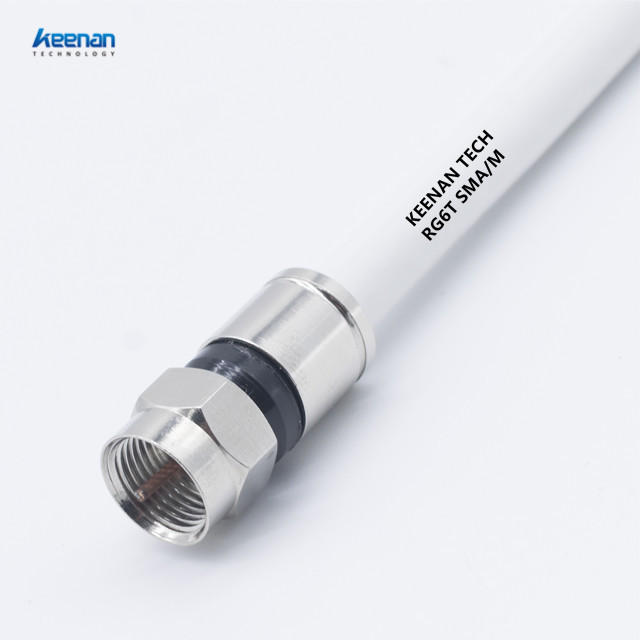

This 75 Ohm RG6 coaxial cable can be fixed with kinds of connectors,such as F,BNC,TNC connectors.These
versatile cable assemblies with various lengths have been widely applied to existing and next generation TV network
and security monitoring and control systems.
More Ideas
1) If require conventional construction and materials, please check RG6;
2) If require better shield effectiveness, please check RG6T or RG6Q;
3) If require two-way transmission, please check RG6 DUAL;
4) If require high tensile strength, please check RG6M or RG6DM;
5) If require both video transmission and power supply, please check RG6+2C;
6) If require a cable with smaller wire diameter, please check RG59 or MINI RG59;
7) If require a cable running through the window or door, please check FLAT WIRE;
8) For more RG6 assemblies,please check RG6 ASSEMBLIES;
