Quick Details
-
Brand Name:
-
Lumiax
-
Model Number:
-
MPPT0875-DC/MPPT1050-DC
-
Work Time (h):
-
12h/24h
-
Max PV Power:
-
100W/130W
-
Max PV Voltage:
-
60V/45V
-
Certificate:
-
CE,ISO9001,RoHS,ISO14001
-
Warranty:
-
3 Years
-
Protection Degree:
-
IP67
-
Grounding:
-
Positive
-
MPPT Efficiency:
-
>99.9%
-
Conversion MPPT Efficiency:
-
98.0%
-
Battery Type:
-
Liquid,GEL,AGM
-
Auto Dimming:
-
Yes,No,365
-
Communication:
-
Infrared Remote setting
-
OEM/Customer-tailored:
-
Yes
-
Dimensions(mm):
-
85.8*81*23.1mm
-
Net weight:
-
260g
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Lighting Controller, Voltage Controller, Solar System Controller
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Lumiax
-
Model Number:
-
MPPT0875-DC/MPPT1050-DC
-
Work Time (h):
-
12h/24h
-
Max PV Power:
-
100W/130W
-
Max PV Voltage:
-
60V/45V
-
Certificate:
-
CE,ISO9001,RoHS,ISO14001
-
Warranty:
-
3 Years
-
Protection Degree:
-
IP67
-
Grounding:
-
Positive
-
MPPT Efficiency:
-
>99.9%
-
Conversion MPPT Efficiency:
-
98.0%
-
Battery Type:
-
Liquid,GEL,AGM
-
Auto Dimming:
-
Yes,No,365
-
Communication:
-
Infrared Remote setting
-
OEM/Customer-tailored:
-
Yes
-
Dimensions(mm):
-
85.8*81*23.1mm
-
Net weight:
-
260g
Product Description

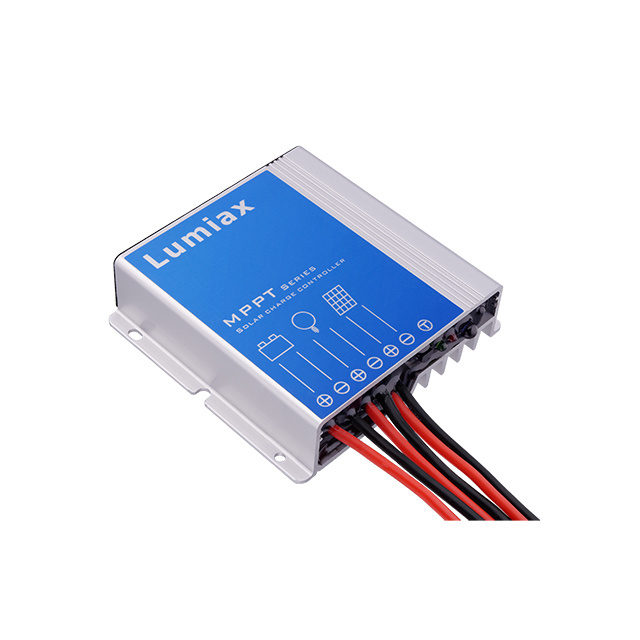

12V 8A 10A 15A 20A mppt solar charge controller for street light and lamp
MPPT-DC series have LED driver built-in,adjust LED brightness.
Product Paramenters
|
|
ltem
|
|
MPPT0850-DCLi
|
MPPT1050-DCLi
|
||
|
Battery
Parameters
|
System Woltage
|
|
12V
|
12V
|
||
|
|
Max Charging Current
|
|
8A
|
10A
|
||
|
|
Max volt on Bat Terminal
|
|
25V
|
25V
|
||
|
|
Battery Type
|
|
Liquid,Gel,AGM and Lithium (Programmable,default:Lithium)
|
|
||
|
|
Liquid,
Gel, AGM |
MPPT Charging Voltage
|
<14.5V@25℃
|
|
||
|
|
|
Boost Voltage
|
14.5V@25℃
|
|
||
|
|
|
Equalization Voltage
|
148V@25℃ (Liquid,AGM)
|
|
||
|
|
|
Float Voltage
|
13.7V @25℃
|
|
||
|
|
|
Low Volt Disconnect
|
10.8~11.8V(Programmable)
|
|
||
|
|
|
Reconnect Woltage
|
11.4~12.8V(Programmable)
|
|
||
|
|
|
Overcharge Protect
|
15.5V
|
|
||
|
|
|
Temp.Compensation
|
-4.17mv/K per cell (Boost,Equalization)，-3.33mV/Kper cell (Float)
|
|
||
|
|
Lithium
|
Charging Volt. target
|
10.0~17.0V(Programmable,default: 12.6V)
|
|
||
|
|
|
Charging Volt. recovery
|
92~16.8V(Programmable,default 124V)
|
|
||
|
|
|
Low voltage disconnect
|
9.0~15.0V(Programmable,default 90V)
|
|
||
|
|
|
Low voltage reconnect
|
9.6~16.0V(Programmable,default 9.8V)
|
|
||
|
|
|
0℃Charging protection
|
Yes slow,No(Programmable)
|
|
||
|
Panel
Parameters
|
Max volt on PV terminal
|
|
35V
|
45V
|
||
|
|
Max input power
|
|
100W-120W
|
120W-150W
|
||
|
|
Dusk/Dawn detect volt.
|
|
3.0~8.0V (Programmable)
|
3.0~8.0V (Programmable)
|
||
|
|
Day/Night delay time
|
|
0~30min (Programmable)
|
0~30min (Programmable)
|
||
|
|
MPPT tracking range
|
|
(Battery Voltage +1.V) ~Voc*0.9
|
|
||
|
Load
Parameters
|
output Power
|
|
1~50W
|
1~60W
|
||
|
|
Output Voltage
|
|
20 ~ 35V
|
20 ~ 45V
|
||
|
|
Current setting range
|
|
0.15~3.0A (Programmable)
|
0.15~3.0A (Programmable)
|
||
|
|
Min aurrent
|
|
100mA (Dimming)
|
100mA (Dimming)
|
||
|
|
Current precision
|
|
士2%
|
士2%
|
||
|
|
Dimming
|
|
0~100%(Programmable)
|
0~100%(Programmable)
|
||
|
|
Voltage of start dimming
|
|
11.8~12.5V(GelAGM and Liquid);10.0~17.0V(Lithium)
|
|
||
|
|
Dimming percertage
|
|
1~20%(Programmable)
|
1~20%(Programmable)
|
||
|
System
Paramelters |
Max tracking efficiency
|
|
>99.9%
|
>99.9%
|
||
|
|
Max charge conversion
|
|
96.50%
|
96.50%
|
||
|
|
MaxLED driver effidency
|
|
96%
|
96%
|
||
|
|
self consumption
|
|
6mA
|
6mA
|
||
|
|
Dimensions
mensions |
|
85.8*63*23.1mm
|
85.8*81*23.1mm
|
||
|
|
Weight
|
|
230g
|
260g
|
||
|
|
Ambient temperature
|
|
-35~+60℃
|
-35~+60℃
|
||
|
|
Ambient humidity
|
|
0~100%RH
|
0~100%RH
|
||
|
|
Protection degree
|
|
lP67
|
lP67
|
||
|
|
Max Altitude
|
|
4000m
|
4000m
|
||
