Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
IB19U-G10Z-E
-
Product type:
-
Waterproof push button Switch
-
Mounting hole diameter:
-
19mm
-
Head Shape:
-
High
-
Switch combination:
-
1NO
-
Operation type:
-
Latching
-
Terminal type:
-
Pin Teiminal
-
Material:
-
Nickel plated brass/Stainless steel/aluminum oxide
-
Led color:
-
Blue(or Red/Orange/White/Green/Yellow)
-
Led voltage:
-
3V/5V/12V/24V/36V/110V/220V
Quick Details
-
Protection Level:
-
IP65/IP67
-
Max. Current:
-
2A
-
Max. Voltage:
-
250V AC
-
Place of Origin:
-
China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
IB19U-G10Z-E
-
Product type:
-
Waterproof push button Switch
-
Mounting hole diameter:
-
19mm
-
Head Shape:
-
High
-
Switch combination:
-
1NO
-
Operation type:
-
Latching
-
Terminal type:
-
Pin Teiminal
-
Material:
-
Nickel plated brass/Stainless steel/aluminum oxide
-
Led color:
-
Blue(or Red/Orange/White/Green/Yellow)
-
Led voltage:
-
3V/5V/12V/24V/36V/110V/220V
Products Description

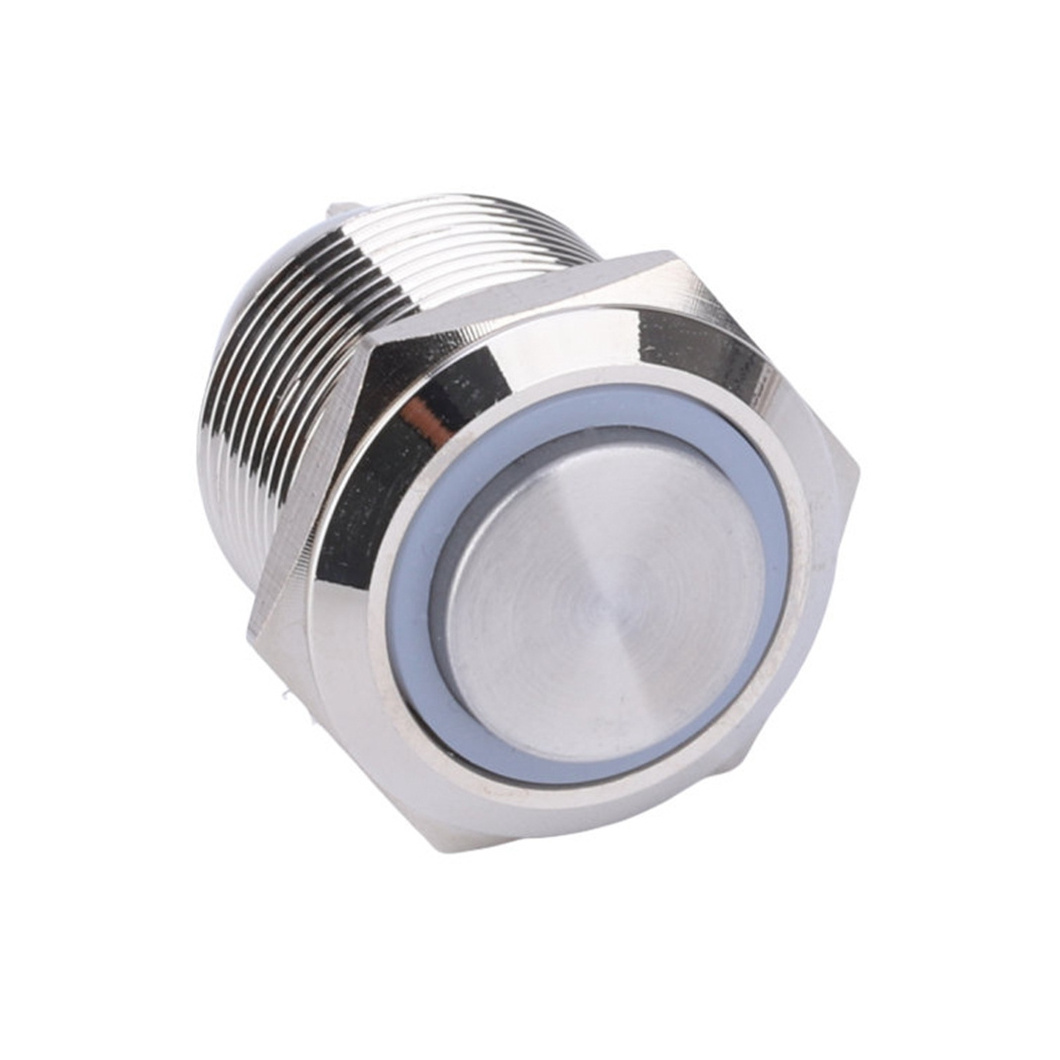

1NO Waterproof IP65 2A 19mm Latching 12V Led Illuminated 4 Pin Teiminal ON OFF Switch Ring Led Push Button Switch 2 buyers
We have anti-vandal p
ush-button switch with 7mm/8mm/10mm/12mm/16mm/19mm/22mm/25mm/30mm/40mm.
WATERPROOF MARINE SWITCH:
This push button switch can be used in a wet environment, no worry about rain or water anymore, which can be used outdoor and rainy day.
WIDE APPLICATION：
This 12V/24V push button switch is suitable for motorized vehicles of motor starting, power starting devices, and can also be an access control button.
What is Momentary(reset) function?
When you push switch and then move your finger, the actuator will back to the original position
What is Latching(Self-locking) function?
When you press the button, it will be ON and keeps locked until you press again, it will return to original position
Product Paramenters
|
Model Specification
|
|
|
|
Model NO.
|
Push Button Switch
|
|
|
Mounting diameter
|
7~40mm
|
|
|
Head shape
|
Flat/High/Domed
|
|
|
Switch Combination
|
1NO,1NC,1NO1NC,2NO2NC
|
|
|
Operation type
|
Latching / Momentary
|
|
|
Rated Current
|
2A-18A 250VAC
|
|
|
Illuminating type
|
Non-illuminated /illuminated LED
|
|
|
Illuminating color
|
Red,green,blue,yellow,orange,white,purple/RG/RGB
|
|
|
Lamp voltage
|
3V~250V
|
|
|
Shell material
|
Brass nickel,Stainless steel,aluminum oxide
|
|
|
Contact Resistance
|
50mΩ max
|
|
|
Insulation Resistance
|
2000VAC
|
|
|
Dielectric Intensity
|
2000VAC
|
|
|
Accessories
|
Nut, Rubber Waterproof O-ring
|
|
