Quick Details
-
Brand Name:
-
CIS
-
Model Number:
-
WS-C2960+24LC-S
-
Place of Origin:
-
GUA
-
PoE Ports:
-
Max 8 Port Support PoE
-
PoE Standard:
-
IEEE 802.3af, IEEE 802.3at
-
PoE Power Budget:
-
123 W
-
Dimensions:
-
4.4cm x 45.0cm x 33.2cm
-
Package Weight:
-
9.19kg
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
12G
-
Brand Name:
-
CIS
-
Model Number:
-
WS-C2960+24LC-S
-
Place of Origin:
-
GUA
-
PoE Ports:
-
Max 8 Port Support PoE
-
PoE Standard:
-
IEEE 802.3af, IEEE 802.3at
-
PoE Power Budget:
-
123 W
-
Dimensions:
-
4.4cm x 45.0cm x 33.2cm
-
Package Weight:
-
9.19kg

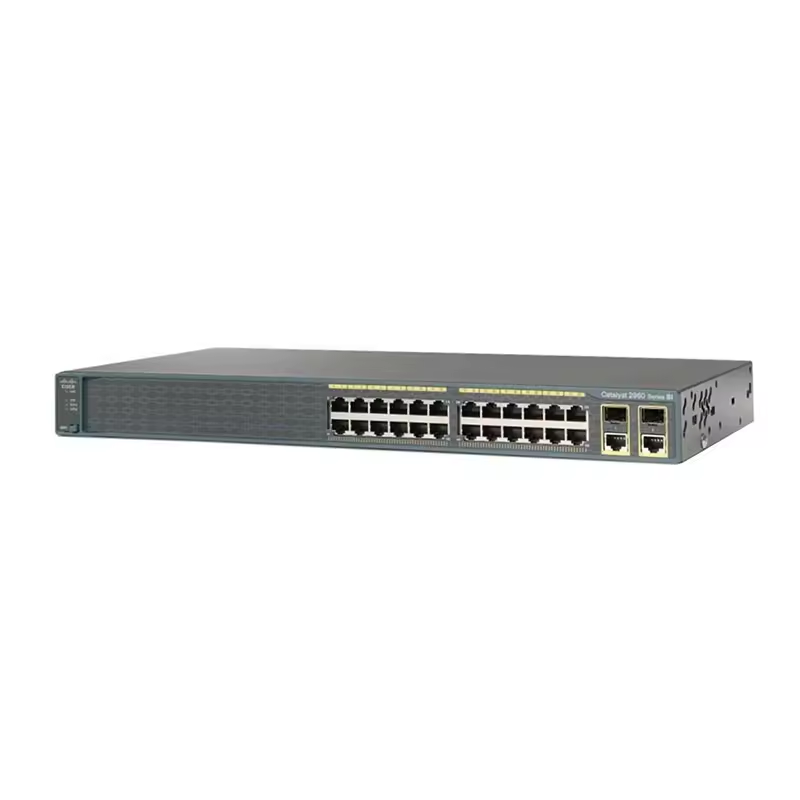

| Product Code | WS-C2960+24LC-S |
| Enclosure Type | Rack-mountable 1U |
| Feature Set | LAN Lite |
| Uplink Interfaces | 2 (SFP or 1000BASE-T) |
| Available PoE Power | 123W |
| Maximum Number of PoE (IEEE 802.3af) Ports | 8 ports up to 15.4W |
| Ethernet Ports | 24 x 10/100 Ethernet ports |
| Forwarding Bandwidth | 16 Gbps |
| RAM | 128 MB |
| Flash Memory | 64 MB |
| Dimensions | 4.4cm x 45.0cm x 33.2cm |
| Package Weight | 9.19 Kg |
2960-S Series Switches with LAN Lite Software have the following capabilities:
- 24 and 48 ports of Gigabit Ethernet (GbE) 10/100/1000 desktop connectivity
- 1 GbE Small Form-Factor Pluggable (SFP) uplinks
- USB storage interface for file backup, distribution, and simplified operations
- Enhanced troubleshooting for problem solving, including link connectivity and cable diagnostics
- Single IP address management for up to 16 switches
- A wide range of software features to provide ease of operation, secure business operations, sustainability and borderless networking experience
- Limited lifetime hardware warranty, including next-business-day replacement with 90-day service and support
The 2960 Series Switches with LAN Lite Software have the following capabilities:
- Fast Ethernet connectivity with Power over Ethernet (PoE) of up to 15.4W per port
- GbE for data connectivity
- Enhanced troubleshooting for problem solving, including link connectivity and cable diagnostics
- Single IP address management for up to 16 switches
- A wide range of software features to provide ease of operation, highly secure business operations, sustainability, and a borderless networking experience
Table 1. Configurations of 2960-S and 2960 Series Switches with LAN Lite Software
|
Switch Model |
Description |
Uplinks |
|
2960-S Switches with 1 Gigabit Uplinks and 10/100/1000 Ethernet Connectivity |
||
|
2960S-48TS-S |
48 Ethernet 10/100/1000 |
2 1 GbE ports |
|
2960S-24TS-S |
24 Ethernet 10/100/1000 |
2 1 GbE SFP ports |
|
2960 Switches with 1 Gigabit Uplinks and 10/100 Ethernet Connectivity |
||
|
2960-48PST-S |
48 Ethernet 10/100 PoE ports (370W capacity) |
2 fixed 10/100/1000 ports and 2 SFP ports |
|
2960-24PC-S |
24 Ethernet 10/100 PoE ports (370W capacity) |
2 dual-purpose ports (10/100/1000 or SFP) |
|
2960-24LC-S |
24 Ethernet 10/100 and 8 10/100 PoE ports (123W capacity) |
2 dual-purpose ports (10/100/1000 or SFP) |
|
2960-48TC-S |
48 Ethernet 10/100 |
2 dual-purpose ports (10/100/1000 or SFP) |
|
2960-48TT-S |
48 Ethernet 10/100 |
2 fixed 10/100/1000 ports |
|
2960-24TC-S |
24 Ethernet 10/100 |
2 dual-purpose ports (10/100/1000 or SFP) |
|
2960-24-S |
24 Ethernet 10/100 |
None |
|
Compact Switches |
||
|
8 Ethernet 10/100 compact size with no fan |
1 dual-purpose port (10/100/1000 or SFP) |
|
1. What version do you sell?
What we sell is a 100% original English version.
2. How to confirm the product is the Original Global English version?
Each product has its own S/N.
You can download software from the official website, only the original product is compatible with the software. Meanwhile, we promise that we won't sell fake products.
3. Do you offer OEM service?
Yes, OEM service is available, but there will be MOQ requirements.
4. Which payment do you accept?
Normally, we accept T/T by bank transfer or pay via Alibaba.
5. How about your delivery time?
Normally, we will arrange the shipment within one week for stocks. Around one month for bulk orders.
