Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Foneacc Motor
-
Model Number:
-
GM25-370
-
Torque:
-
0.1 Nm - 1 Nm
-
Product Name:
-
GM25-370 cylindrical metal spur gear motor
-
Driven motor:
-
RC-370 brush dc electric motor
-
Gear Material:
-
Powder Metallurgy
-
Gear type:
-
Spur Gearbox DC Motor
-
Gear reducer axial shaft diameter:
-
diameter 4mm with 0.5mm D-cut
-
Gear reducer round face P.C.D:
-
17 mm
-
Rotation Direction:
-
Reversible(CW&CCW)
-
Rated voltage:
-
1.5V to 24V free customization
-
Typical Applications:
-
Robot Wheel, electric lock, small grinder
-
Gear reducer axial shaft length:
-
Standard 12.5mm, free custom
Quick Details
-
Speed(RPM):
-
10 R/min - 3000 R/min
-
Continuous Current(A):
-
0.1A - 3A
-
Efficiency:
-
50%-60%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Foneacc Motor
-
Model Number:
-
GM25-370
-
Torque:
-
0.1 Nm - 1 Nm
-
Product Name:
-
GM25-370 cylindrical metal spur gear motor
-
Driven motor:
-
RC-370 brush dc electric motor
-
Gear Material:
-
Powder Metallurgy
-
Gear type:
-
Spur Gearbox DC Motor
-
Gear reducer axial shaft diameter:
-
diameter 4mm with 0.5mm D-cut
-
Gear reducer round face P.C.D:
-
17 mm
-
Rotation Direction:
-
Reversible(CW&CCW)
-
Rated voltage:
-
1.5V to 24V free customization
-
Typical Applications:
-
Robot Wheel, electric lock, small grinder
-
Gear reducer axial shaft length:
-
Standard 12.5mm, free custom

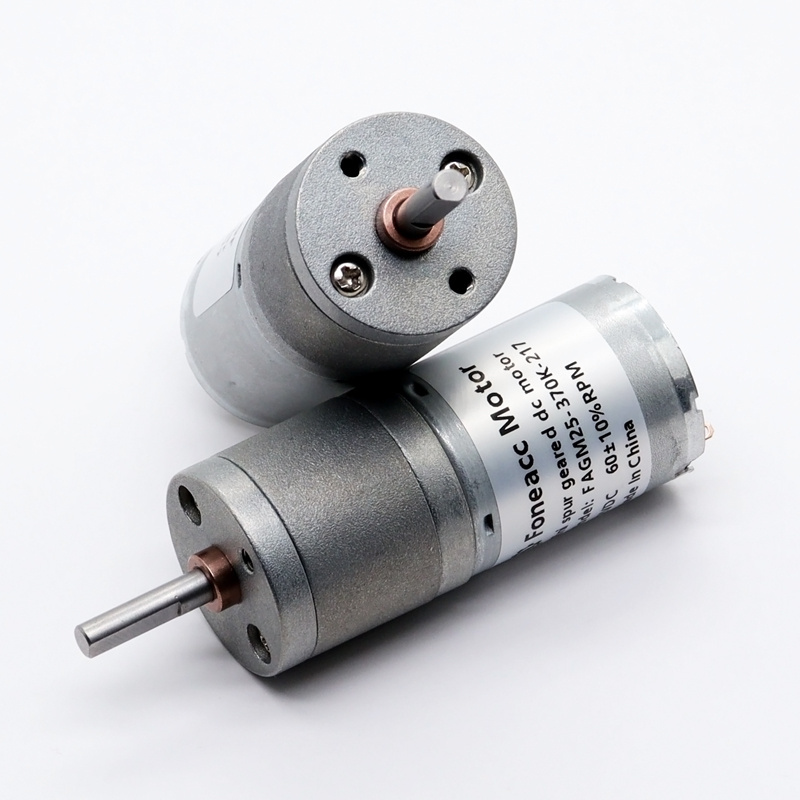

High Torque Low Noise Gm25-370 25mm Dc 3v-24v Dc Gear Motor With Encoder
Main features:
|- Model: GM25-370 micro metal gearmotor;
|- Gearbox: 25 mm metal spur gear reducer;
|- Rated Voltage: DC 1.5V,3V,4.5V,5V,6v,9v,12v,24v;
|- Rated Torque: Max. 5Kgf-cm ;
|- Size : Φ25 * L TBD ;
|- Shaft : Φ4mm D-cut 0.5mm, custom;
|- Encoder : Magnetic encoder available;
|- Commutation: Carbon brush/Graphite brush/Metal brush;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs
GM25-370 dc geared motor data examples:
GM25-370 Gear Box Data:
| Gearbox Length (mm) | Stages | Reduction Ratio | Rated Torque | Bearable Maximum Instant Torque | ||||||
| kg.cm | ||||||||||
| 19 | 4 | 15.5/1 | 20.4/1 | 1 | 3 | |||||
| 21 | 5 | 26/1 | 30/1 | 34/1 | 45/1 | 2 | 6 | |||
| 23 | 6 | 57/1 | 75/1 | 98/1 | 2.5 | 7 | ||||
| 25 | 7 | 125/1 | 165/1 | 217/1 | 3 | 8 | ||||
| 27 | 8 | 274/1 | 362/1 | 478/1 | 3 | 8 | ||||
GM25-370 Spur Geared Motor Data(for reference only, specs can be customized accordingly):
| Model |
Gear
Ratio |
Voltage | No Load | At Max Eff. | Stall | |||||||
| Range | Rated | Speed | Current | Speed | Current | Torque | P. out | Torque | Current | |||
| V | rpm | A | rpm | A | kgf.cm | W | kgf.cm | A | ||||
| GM25-370-26 | 26/1 | 3.0~12.0 | 12 | 231 | 0.09 | 162 | 0.43 | 1.1 | 1.83 | 3.7 | 1.2 | |
| GM25-370-20.4 | 20.4/1 | 3.0~12.0 | 12 | 400 | 0.05 | 340 | 0.36 | 0.4 | 1.39 | 2.6 | 2.1 | |
| GM25-370-98 | 98/1 | 3.0~6.0 | 6 | 50 | 0.05 | 41 | 0.21 | 1.6 | 0.67 | 9.8 | 1.06 | |
| GM25-370-165 | 165/1 | 3.0~12.0 | 12 | 88 | 0.26 | 43 | 1.27 | 6 | 2.65 | 35.3 | 6.2 | |
| GM25-370-478 | 478/1 | 3.0~12.0 | 12 | 7.8 | 0.03 | 7 | 0.07 | 2 | 0.14 | 19.5 | 0.52 | |
Dimensions and configurations of GM25-370 dc gear motor for reference:
Similar size spur geared motor with BLDC motor:
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
