High Precision Automated Glue Dispensing Systems For Smt Dispenser Machine For Sales Promotion Modern

FOB Reference Price: Get Latest Price

≥1 Pieces

US $26000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product Name:: glue dispensing RD-300D

Power Supply:: 220 V

Air pressure requirement:: 0.6 MPa

Support axis number:: X,Y,Z(U,R)

Track load:: 3 Kg

Mode of transport:: Anti-static belt

Transport Direction:: left to right or right to left

Substrate Thickness:: 0.5~6 mm

Protocol:: SMEMA

Max Operating Speed:: 1000 mm/s

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Right

Weight (KG):: 1200

Product Name:: glue dispensing RD-300D

Power Supply:: 220 V

Air pressure requirement:: 0.6 MPa

Support axis number:: X,Y,Z(U,R)

Track load:: 3 Kg

Mode of transport:: Anti-static belt

Transport Direction:: left to right or right to left

Substrate Thickness:: 0.5~6 mm

Protocol:: SMEMA

Max Operating Speed:: 1000 mm/s

High Precision Automated Glue Dispensing Systems For Smt Dispenser Machine For Sales Promotion Modern

Product Description

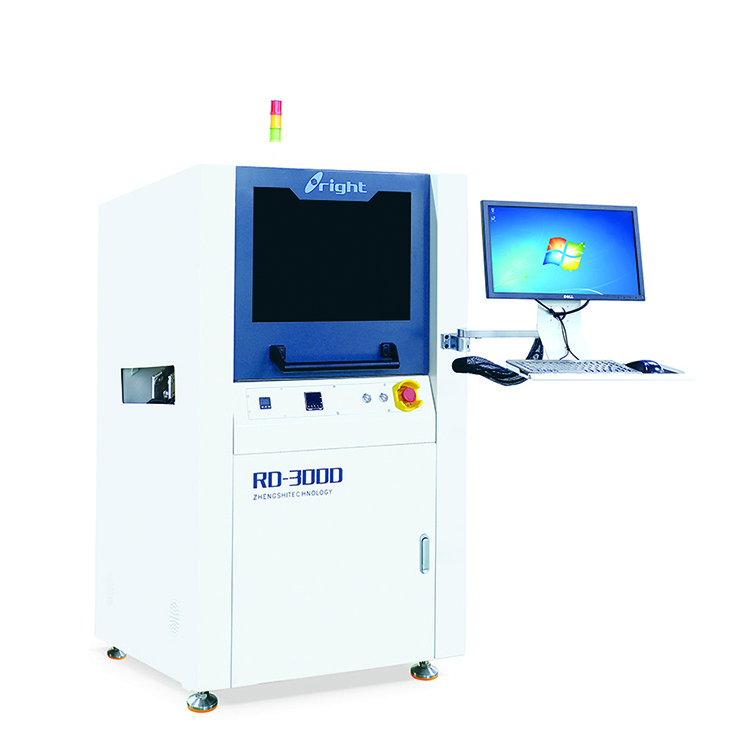

Right Dispensing Machine

The Right dispensing system has significant strength in cost performance. Being reliable, durable, and concisely designed, it can

be applied to PCB and base materials of different specifications. The UFD operating software ensures the stability and reliability
of the system. The system is designed for chip sealing, PCB assembly, SMT
red glue dispensing,led lens,and medical products.

Features

1. High cost performance.
2. Non-contact jet valve to realize smaller dispensing diameter and wider application area.
3. Jet valve can improve the reliability and uniformity of dispensing, and improve the output and material utilization rate.
4. Minimum width of excessive glue can be controlled in 0.2mm(related to the configuration and glue);.
5. Chip edge identification is much more accurate than mark-point identification.
6. ID identification, automatic program calling, fool-proofing and data statistics function helps to realize smart manufacturing.

CCD Vision System

Using high-phase camera imported from Germany for positioning and taking phase, automatic calibration of running accuracy.

Intelligent Transmission System

The direction of track transfer can be selected arbitrarily (left to right, right to left)

The track width is automatically and intelligently adjusted by the software, and the switching product efficiency is high.

Cleaning System

Vacuum suction

Rotary cleaning

Material wear-resistant

Easy to replace

Reduce hanging glue

Dual Valve Configuration System (Option）

* Synchronous double valve saves working time and improves working efficiency

* Asynchronous double valve to complete two
dispensing processes in the same machine

Rotary Tilt Dispensing System (Option)

* Realize inclination dispensing within ±30 degrees

* And suitable for precision dispensing of components with a height of more than 3 mm

Dual-track Transport System (Option)

* Reduce waiting time, improve production efficiency and capacity

* Realize different products dispensing operations on two tracks

Monitor Display System (Option)

* Real-time tracking of the production status of the glue dispenser trace

* Realize the pursuit of big data and realize intelligent
manufacturing factory

Applicable Fluid

UV glue, white glue, red glue, silver glue, solder paste, epoxy resin, hot melt glue

Specifications

Model	RD-300D
Power Supply	AC 220V, 50/60Hz, 2.2 KW, 10A
Product Weight	1200 KG
Dimensions	90015301540 (WDH)
Substrate Thickness	0.5~6mm
Max operating Speed	1000mm/s（XY）
Max acceleration	0.8g
Support Axis Number	X, Y, Z (U, R)
Track Load	3 KG
Mode of Transport	left to right or right to left
Track Width Adjustment	50~310 mm (double track） 50~560 mm (monorail)
Communication Protocol	SMEMA
Drive System	servo motor + precision ball screw
