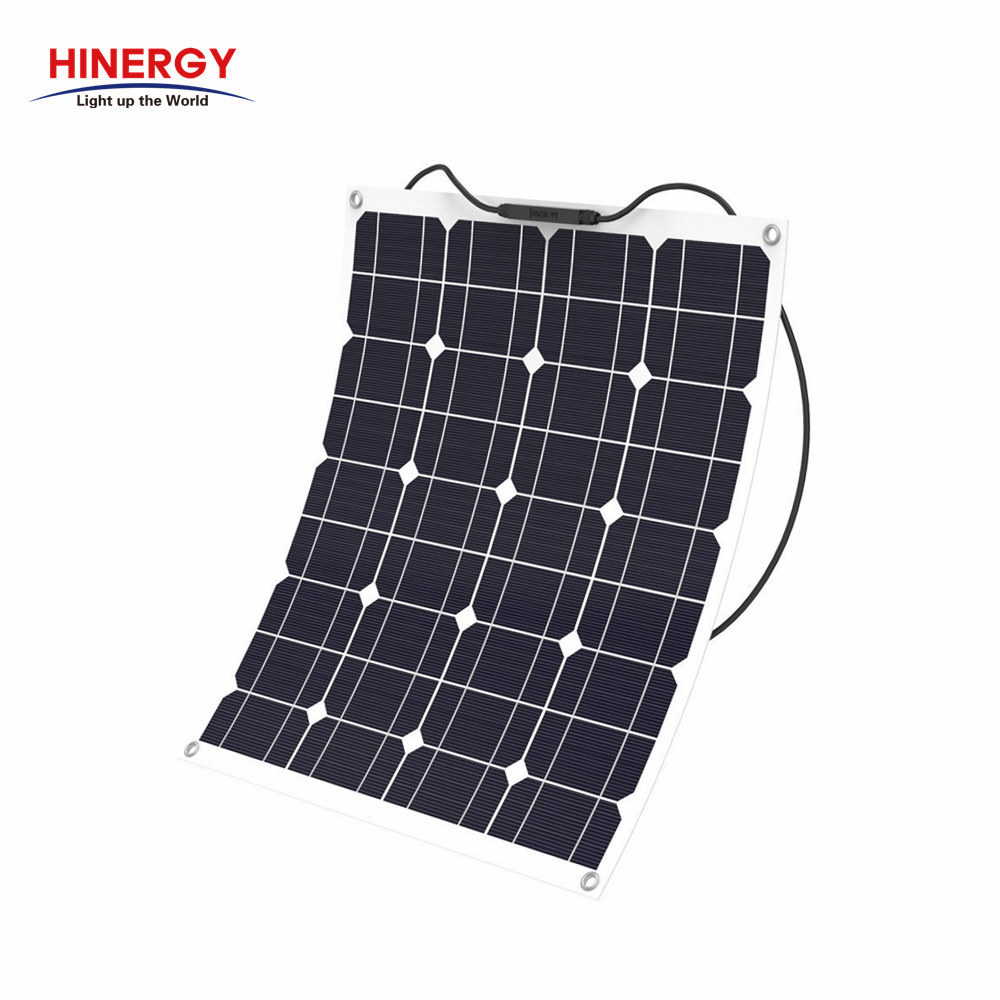

Monocrystalline Cell Small Motorhome Parts 50watt Flexible Solar Panel kits 50w 12v for RV Homes
Monocrystalline Cell Small Motorhome Parts 50watt Flexible Solar Panel kits 50w 12v for RV Homes
Monocrystalline Cell Small Motorhome Parts 50watt Flexible Solar Panel kits 50w 12v for RV Homes
Monocrystalline Cell Small Motorhome Parts 50watt Flexible Solar Panel kits 50w 12v for RV Homes
Monocrystalline Cell Small Motorhome Parts 50watt Flexible Solar Panel kits 50w 12v for RV Homes
Monocrystalline Cell Small Motorhome Parts 50watt Flexible Solar Panel kits 50w 12v for RV Homes
Monocrystalline Cell Small Motorhome Parts 50watt Flexible Solar Panel kits 50w 12v for RV Homes
Monocrystalline Cell Small Motorhome Parts 50watt Flexible Solar Panel kits 50w 12v for RV Homes

Monocrystalline Cell Small Motorhome Parts 50watt Flexible Solar Panel kits 50w 12v for RV Homes

FOB Reference Price: Get Latest Price
≥100 Pieces
US $0.79
≥1000 Pieces
US $0.75
≥10000 Pieces
US $0.69
≥50000 Pieces
US $0.59
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Shandong, China
Panel Dimensions:
1050*540mm
Panel Efficiency:
17-20%
Product Name:
Hinergy flexible solar panel
Solar Cell:
Monocrystalline Silicon
Surface Sheet:
PET / ETFE
Encapsulation Material:
0.5 MM
Junction Box:
IP67 Rated
Connector:
MC 4 Connector
Mounting Hole:
4-8 PCS
Bending:
30°
OEM Service:
Acceptable
Application:
Marine, Camping, RV, boat

Quick Details

Cell size:
125mmx125mm
Brand Name:
Hinergy
Model Number:
HNM-FLX-20-200Wp
Place of Origin:
Shandong, China
Panel Dimensions:
1050*540mm
Panel Efficiency:
17-20%
Product Name:
Hinergy flexible solar panel
Solar Cell:
Monocrystalline Silicon
Surface Sheet:
PET / ETFE
Encapsulation Material:
0.5 MM
Junction Box:
IP67 Rated
Connector:
MC 4 Connector
Mounting Hole:
4-8 PCS
Bending:
30°
OEM Service:
Acceptable
Application:
Marine, Camping, RV, boat
Products Description

Advantages:

* High Efficiency : Monocrystalline silicon cell with high conversion efficiency ensure max output power.

* Unique Material : Anti-corrosion, anti-fouling, easy to clean, and extend the life of solar panel.

* Bendable Panel : Semi flexible solar panel can be mounted on a curved surface.

* Durability : Ultra durable s emi-flexible Solar Panel is an ideal choice for RV,yacht,boats etc.

* Quality and Grade : CE and ROHS certified. Waterproof grade IP67 .
Model
Power (W)
Size (MM)
Vmp (V)
Imp(A)
Voc(V)
Isc (A)
HNM-FLX-10M
10
380*190*2.8
17.6
0.57
21.8
0.60
HNM-FLX-20M
20
350*340*2.8
17.6
1.14
21.8
1.19
HNM-FLX-30M
30
620*270*2.8
17.6
1.70
21.8
1.79
HNM-FLX-40M
40
540*340*2.8
17.6
2.27
21.8
2.38
HNM-FLX-50M
50
545*535*2.8
17.6
2.84
21.8
2.98
HNM-FLX-60M
60
615*535*2.8
17.6
3.41
21.8
3.57
HNM-FLX-70M
70
690*500*2.8
17.6
3.98
21.8
4.17
HNM-FLX-80M
80
820*535*2.8
17.6
4.55
21.8
4.77
HNM-FLX-100M
100
1050*535*2.8
18.0
5.56
22.0
5.90
HNM-FLX-120M
120
1175*535*2.8
18.0
6.67
22.0
7.08
HNM-FLX-140M
140
1145*650*2.8
18.0
7.78
22.0
8.26
HNM-FLX-160M
160
1190*660*2.8
18.0
8.89
22.0
9.45
HNM-FLX-180M
180
1460*660*2.8
18.0
9.99
22.0
10.63
*STC: Irradiance 1000W/m 2 , Module Temperature 25℃, Air Mass 1.5

Solar Cell

* High efficiency PERC monocrystalline .

* Solar cell can be bent 30 degrees.

* Excellent low light and partial shade performance.


* Best in class cell longevity without power deterioration.

Unique Material

* ETFE & PET surface sheet optional.


* Anti-corrosion,anti-fouling,easy to clean.

* Module efficiency is increased by 2%.

* Self-cleaning function.

Tailor-Made

* Eyelet No. and size can be customized .

* Round corners to avoid scratches .

* The mounting hole is reserved for easy installation .

* Maximum static loading 5400Pa/2400Pa.

Junction Box

* Junction box support 1000V system.

* Quality diode ensure running safety.

* Waterproof grade P67 or IP68.

* Heat dissipation,long service life

Production & QC Line

Cells Sorting

Ensure colour and power uniform.


Ensure high yields,consistent performance and durability.

First of 52 steps strict quality control and inspection process.

EL Testing

Before and following lamination

Ensure "Zero" micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and panel.

Zero Defect

Defects objective before shipment.

Most stringent acceptance criteria and tightest tolerance,

Ensure the best modules on the market- guaranteed!

Optimal Testing

Ensure 3% positive power tolerance.

Comprehensive QC information management system with barcode ID.Quality traceable system in place to allow quality data flow constantly.

Packing & Delivery
FAQ

Q:What's kinds of solar cells for your semi flexible solar panel?

A:Two kinds of solar cell for semi flexible solar panel, one is sunpower cell, the other is monocrystalline solar cell.

Q:What's materials is made of the flexible solar panel?
A:The flexible solar panel can be made by different raw material (PET, ETFE, Aluminum Backsheet and fiberglass etc.) for different purpose.


Q.Can I have a sample order for semi flexible solar panel?
A:Yes, we welcome the sample order for quality evaluation, and mixed samples are acceptable.

Q:Do you accept customized size and LOGO for our marine solar panel?
A:Yes, if the size and quantity is reasonable.

Q:Where can these flexible solar panel be used?
A:These bendable flexible solar panel use for charging RV, boat, cabin, tent, car, trailer battery system.

Q:What about the lead time?
A:It takes 3-5 days for the samples, and the delivery time of bulk goods depend on quantity.

Q:How would you deliver the goods and how long is the shipping time?
A:We usually make delivery by express for quantity less than 50 PCS. It usually takes 3-7 working days to arrive. Airline and sea shipping is also optional.

Q:How can I be your agent in my country?
A:Please leave feedback, it's better for us to talk about details.

Q:Whether the flexible solar panel system can work on cloudy days?
A:Yes, it still work, however, it produce less electricity than under full sun.


Q:How to connect these flexible solar panels for my solar power system in series & in parallel ?
A: Please check the following installation instruction.
