Quick Details
-
Filling Accuracy:
-
1
-
Voltage:
-
Single phase 220V, 50Hz / 110V 60Hz, Single phase 220V, 50Hz / 110V 60Hz
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HIGEE
-
Dimension(L*W*H):
-
1200*1200*1750mm
-
Weight:
-
350 KG, 350kg
-
Core Components:
-
other
-
Name:
-

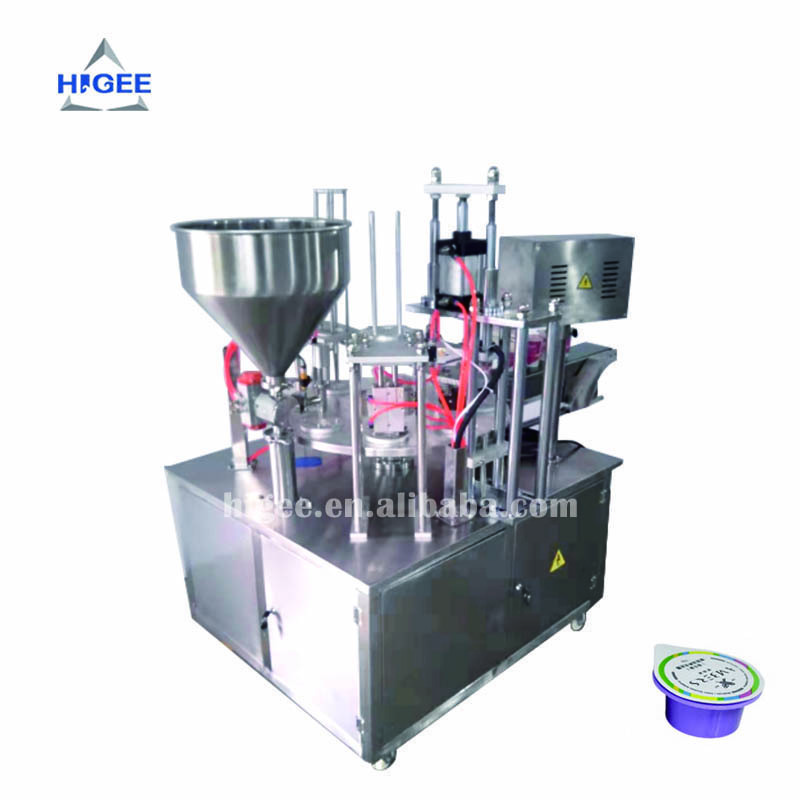

Cup Filling and Capping Machine
-
Output:
-
Max. 1200 CPH
-
Filling accuracy:
-
±1.5%
-
Tempt control (film seal part):
-
0-400℃
-
seal material:
-
PE PP PET/PE
-
Dimension:
-
1200*1200*1750mm
-
After Warranty Service:
-
Video technical support, Online support, Spare parts repair service
-
Optional::
-
Dust cover, coding machine
Quick Details
-
Machinery Capacity:
-
1000BPH
-
Packaging Material:
-
Plastic
-
Filling Material:
-
Other, Milk, Water, Oil, Juice, Powder
-
Filling Accuracy:
-
1
-
Voltage:
-
Single phase 220V, 50Hz / 110V 60Hz, Single phase 220V, 50Hz / 110V 60Hz
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HIGEE
-
Dimension(L*W*H):
-
1200*1200*1750mm
-
Weight:
-
350 KG, 350kg
-
Core Components:
-
other
-
Name:
-
Cup Filling and Capping Machine
-
Output:
-
Max. 1200 CPH
-
Filling accuracy:
-
±1.5%
-
Tempt control (film seal part):
-
0-400℃
-
seal material:
-
PE PP PET/PE
-
Dimension:
-
1200*1200*1750mm
-
After Warranty Service:
-
Video technical support, Online support, Spare parts repair service
-
Optional::
-
Dust cover, coding machine
Product Description
Product Description:
It is applicable to packing liquid like water, juice, oil, etc. Machine is controlled by Japan Mitsubishi PLC system. This machine is designed for cup filling sealing and capping with the following functions.
Application
Process:
1, Automatic feed the cup --- Cup should be put into the storage mould manually stack by stack
2, Cup detection. No cup no filling.
3, Filling liquid into cup. (with stirring)
4, Automatic film sealing of the cup.
5, Automatic feed the cap --- The sucking disk will suck the caps in feeding device then put it on the top of cap by mechanical action. The suction force can be adjusted by adjusting the air pressure.
4, Cap sealing --- The cap is sealed by the pressing device, the pressing force can be adjusted by adjusting the stroke (moving distance) of the cylinder and the air pressure.
5, Final product output by conveyor
Parameters:
|
Hopper size
|
20L
|
|
|
|
|||
|
Capacity
|
900CPH
|
|
|
|
|||
|
Filling head
|
1
|
|
|
|
|||
|
Power supply
|
220V/50Hz
|
|
|
|
|||
|
Power consumption
|
1kw
|
|
|
|
|||
|
Machine weight
|
abt. 200kg
|
|
|
|
|||
|
Overall size
|
About 900*750*1750mm (L*W*H)
|
|
|
|
|||
