Jinou BLE 5.0 Dual Mode Long Range Wireless Networking for Remote Wireless Dust-free Teaching WiFi Bluetooth Gateway Bridge

BLE 5.0 Dual Mode Long Range Wireless Networking WiFi Bluetooth Gateway Bridge for Remote Wireless Dust-free Teaching

Device 1: Dot matrix pen

Description:

The dot matrix pen is a writing tool and also a collection terminal of written information. Printing a layer of invisible dot patterns on the normal paper, and then the dot matrix pen can always capture the nib's movement trajectory through front-end high-speed camera. When the nib is pressed, the camera will take a picture of the dot matrix where the nib is going through. Meanwhile, the pressure sensor will send pressure data(that is dot matrix coordinate, handwriting sequence, pressure data, time of writing, writing speed, etc.) back to the data processor. Handwriting record process synchronizes with writing process. Finally, it will be connected with Jinou gateway via Bluetooth data, and then what students write can be directlly projected on the the screen with any normal projector. So easy to achieve mobile dust-free teaching!
Besides writing, the dot matrix pen can also achieve some other functions: offline temporary storage; one-key import; handwriting playback; timely represent writing process; synchronous sound record; synchronously record and playback the recording sound, etc.

Features:

1. Fast statistics to helps know students' understanding extent of knowledge immediately.
2. Based on the traditional writing method of digital pen writing on dot matrix materials, it can record teaching content and present the original handwriting.
3. Compatible with Windows platform and mobile smart terminal Android platform. It can always store and manage in diversified platforms.
Components of dot matrix pen:
Pressure sensor, high speed camera, processor, battery, data memory, Bluetooth module

Applications:
remote teaching, teleconference, electric blackboard in teaching, personal notes management, interactive classroom teaching, etc.

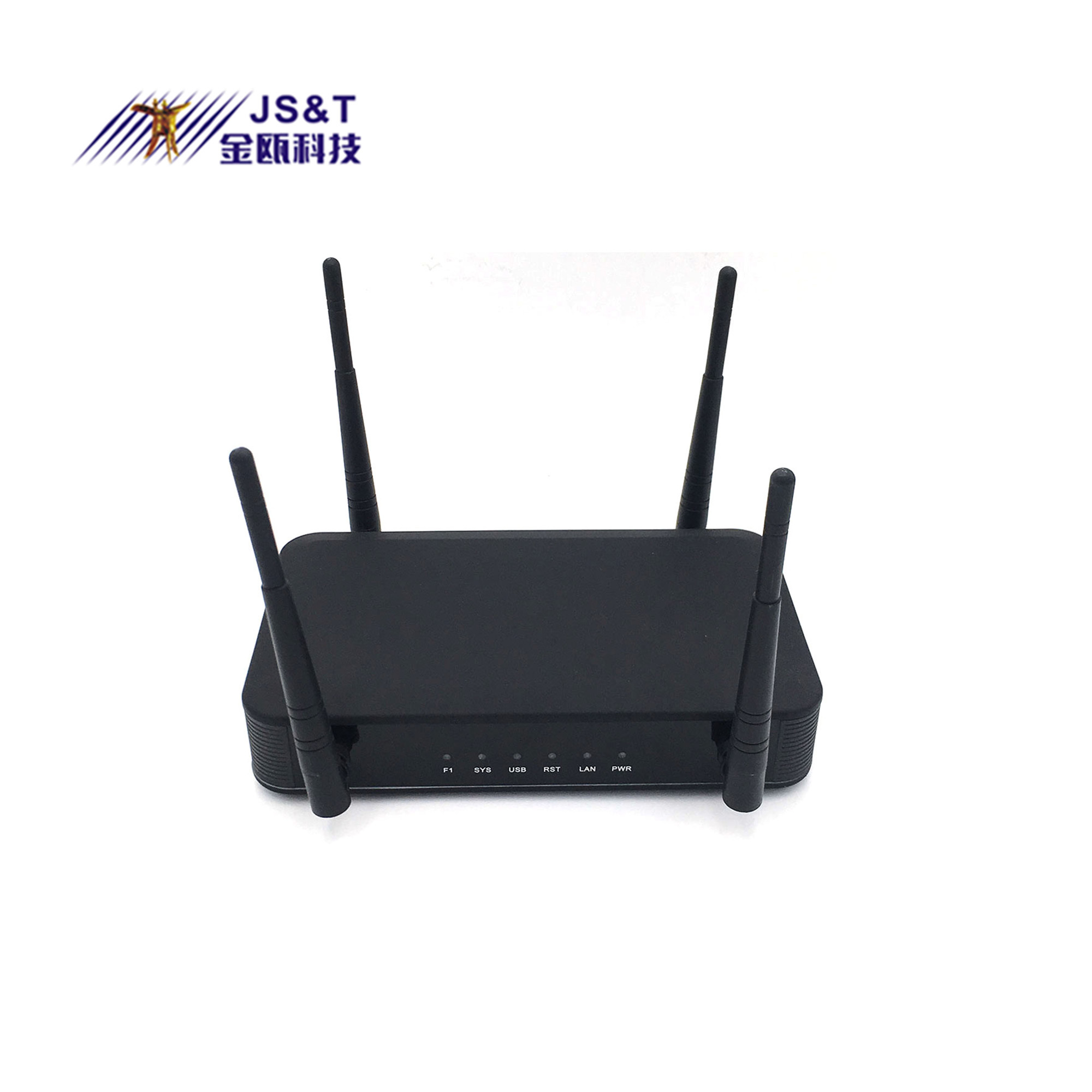

Device 2: BLE 5.0 Dual Mode Long Range Wireless Networking WiFi Bluetooth Gateway

The gateway which compatible with the dot matrix pen is a mobile wireless projection receiver based on Bluetooth and WiFi. The gateway can send the screen of laptop, tablet/phone of iOS/Android version to projector or a large screen wireless. With the function of integrating full screen with mirror image, it can mirror the screen of phone, tablet and PC to HD TV, projector and other devices. It can be widely used in family, entertaiment, business conference, teaching training, etc. In this system, gateway is mainly used to receive, memory and transmit Bluetooth data to make a corollary equipment with dot matrix pen.

Applications

Device data collection
Staff monitor in school, workshop, etc.
Smart home, building automation
Logistics, Medical, Exercise and fitness
IOT

Application

Device data collection

Staff monitor in school, workshop, etc.

Smart home, building automation

Logistics, Medical, Exercise and fitness

IOT
