Quick Details
-
Model Number:
-
sic axle sleeve
-
Standard or Nonstandard:
-
Nonstandard
-
density:
-
3.05
-
Temperature:
-
1500
-
light band:
-
within 2
-
Hardness:
-
115
Quick Details
-
Size:
-
custom
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CF
-
Model Number:
-
sic axle sleeve
-
Standard or Nonstandard:
-
Nonstandard
-
density:
-
3.05
-
Temperature:
-
1500
-
light band:
-
within 2
-
Hardness:
-
115

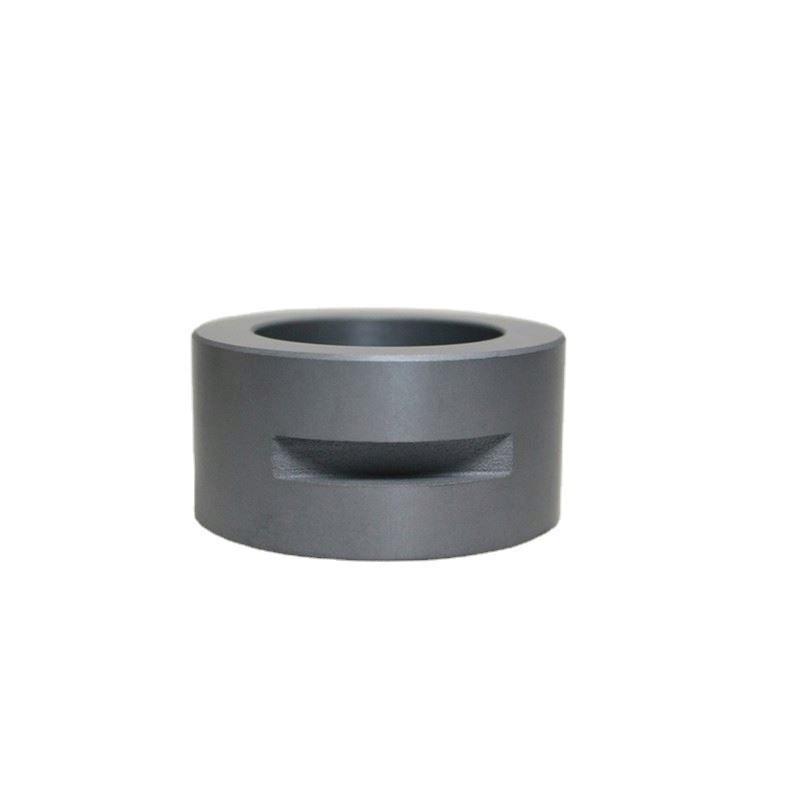

These are two Bush , can be put together, outer one and inter one .
1)we can promise band light within 2 lines
2)we can promise our production without dots on lapping face
3)we can promise our production without Chippings
1) Heat shock stablity
2) chemical corrosion-resistant
3) High temper-endure(up to 1650°)
4) Wearing/corrosion/oxidation resistant
5) Highly performance of mechanical strength
6) Cleaning or etching the hardest sub-surfaces
7) Used for grinding, lapping, and wire saw cutting as well as abrasive blasting
|
Parameter |
SSiC |
RBSiC |
Carbide SiC |
|
Purity( % ) |
>97 |
>90 |
30% |
|
Hardness( HRA ) |
≥90 |
≥90 |
≥85 |
|
Grain Size( um ) |
0.5-0.7 |
8-20 |
20-40 |
|
Density( g/cm3 ) |
3.06-3.15 |
>3.05 |
>2.65 |
|
Bend Strength( MPa ) |
400-580 |
350-450 |
200 |
|
Compressive Strength(MPa) |
3900 |
>2500 |
1800 |
|
Fracture Toughness( MPA ) |
3.05-4.6 |
4.3 |
|
|
Elastic Modulus( GPa ) |
380-410 |
420 |
|
|
Thermal Conductivity(W/M.K) |
102.6 |
35-110 |
125 |
|
Coefficient of heat Expansion( L/°C ) |
4.02x10-6 |
4.3x10-6 |
3x10-6 |
|
Poisson Ratio |
0.14 |
0.15 |
|
