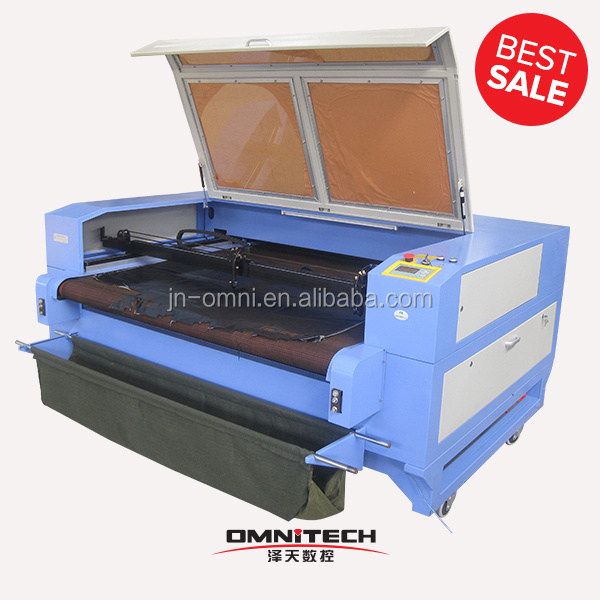

2020 New Type High Quality Energy Saving Rich Function 1390 Cnc Laser Cutting Machine

Product Description

OL1390 Laser engraving and cutting machine working video link: http://s1232.photobucket.com/albums/ff361/omnicnc/?action=view&current=MVI_7613.mp4

Training -----One technician will be assigned to client company for 3 working days free of charge. Customer is responsible for accomodation, food and air tickets.

Guarantee: one year for machine, 3 months for laser tube, mirror and lens.

Features:

1. Configure high power and quality laser tube, can work over 3000 hours.

2. DSP control system, rich function, can approach engraving on plane, gradient engraving by 360 degrees, cutting and drilling holes etc.

3. With function of restoring from poweroff, continuation function from break point.

4. Transmit files directly from Corel draw and Auto CAD, Photoshop, Tajima directly.

5. Adopt imported linear rail, high precision.

6. LCD screen monitor and USB interface support offline working from pen driver.

X,Y,Z working area	1300*900mm
Laser power	100w with superior quality CO2 sealed glass laser tube( 130W+$460 optional )
Cooling mode	Circulating-water-cooling, cw3000 industry chiller(US$152 optional)
Power adjusting	0-100%controlling,no segment and adjusting by software
Machine control and drive	Speedy DSP controlling with LCD screen panel , steper motor
motorized up and down working table	400mm (US$320 optional)
Rotary Device	See following pictures ( $160 optional )
Engraving Speed	1-60000mm/min
Cutting speed	1-10000mm/min
Cutting thickness	0-20mm plexiglass (others determined by materials.)
Support Graphic Format	*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las, Support AutoCAD,CoreDraw, Photo shop, Tajima direct outputting
Resolution ratio	< 0.01mm
Location precision	< 0.01mm
Gross power	< 1000W
Power supply	AC220V/50Hz; AC110V/60Hz
Operating temperature	5 °C -40 °C
Operating humidity	5%-95%(without condensed water) OR 5%-95% free of condensed water

cnc laser cutting machine

Accessories offered:

laser tube……1 piece

lens and mirro……1 set

"laser cut" software……1 set

exhaust fan……1 pc

water pump……1 pc

tool kit………1 pc

manual and demo……1 set

Leaser head

Configure high power and quality laser tube,can work 8000-10000 hours

Stepper motor

Hiwin linear guide:keep high precision

Control cabinet : Euro standard wire connection, electrical spare parts CE standard

Application and simples

Application

Acrylic ,double color board,glass,crystal,marble,bowlder,ceramic,wooden products,bamboo products,cloth,leather,plastic.paper,rubber and other nonmetal materials

Advertising and sign ,building decoration,art and craft,furniture,wooden package,toy,model,computerized embroidery and clipping,package and paper industry
