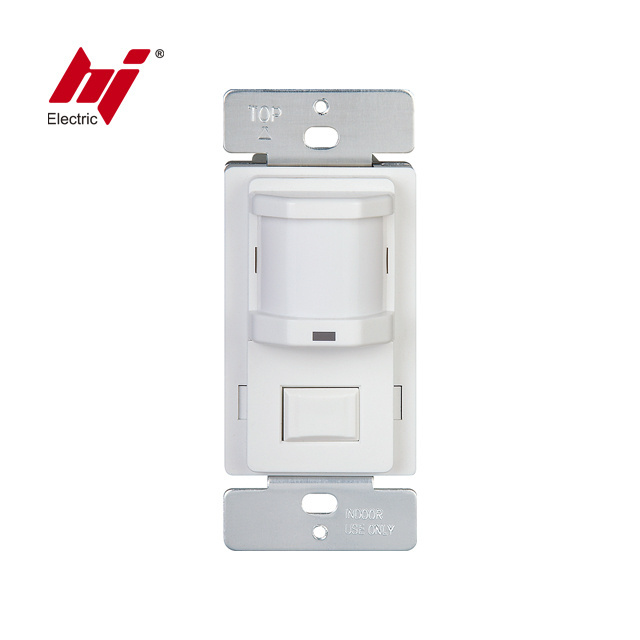

Single Pole Passive Infrared Wall Switch Occupancy Motion Sensor with UL
Single Pole Passive Infrared Wall Switch Occupancy Motion Sensor with UL
Single Pole Passive Infrared Wall Switch Occupancy Motion Sensor with UL
Single Pole Passive Infrared Wall Switch Occupancy Motion Sensor with UL
Single Pole Passive Infrared Wall Switch Occupancy Motion Sensor with UL
Single Pole Passive Infrared Wall Switch Occupancy Motion Sensor with UL
Single Pole Passive Infrared Wall Switch Occupancy Motion Sensor with UL
Single Pole Passive Infrared Wall Switch Occupancy Motion Sensor with UL

Single Pole Passive Infrared Wall Switch Occupancy Motion Sensor with UL

FOB Reference Price: Get Latest Price
≥100 Pieces
US $8.5
≥3000 Pieces
US $6
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Zhejiang, China
Brand Name:
HONGJI/OEM
Theory:
Passive Infrared Sensor
Output:
Analog SENSOR
Description:
Sensor Switch
Product name:
Wall Switch Occupancy Sensor
Material:
PC
Color:
White
Pole:
Single Pole
Time Delay:
15 Sec to 30 Mins
Coverage:
150°, 980ft2
Voltage:
120VAC
Keyword:
Occupancy Motion Sensor
Warranty:
2 Years
Certificate:
UL&CUL

Quick Details

Usage:
Position Sensor
Model Number:
WOSS
Type:
Sensor
Place of Origin:
Zhejiang, China
Brand Name:
HONGJI/OEM
Theory:
Passive Infrared Sensor
Output:
Analog SENSOR
Description:
Sensor Switch
Product name:
Wall Switch Occupancy Sensor
Material:
PC
Color:
White
Pole:
Single Pole
Time Delay:
15 Sec to 30 Mins
Coverage:
150°, 980ft2
Voltage:
120VAC
Keyword:
Occupancy Motion Sensor
Warranty:
2 Years
Certificate:
UL&CUL

Single Pole Passive Infrared Wall Switch Occupancy Motion Sensor with UL

Banner

Dimmers , Fan Speed Controls , Motion Sensors , Timers , GFCIs , USB Charger Receptacles ,
Switches , Receptacles , Floor Boxes , Plugs and Connectors , Flush Mount Receptacles ,
Locking Devices , Data-Com Devices , Wallplates

Our Advantage
1. 10+ years experience in design and manufacturing.
2. We have UL recognized laboratory.
3. A wide selection of products.
4. ALL of our goods have got certificates such as cULus and cETLus etc.
5. We have sold our products to GE, THD, LOWE'S, Wal-Mart, etc.
6. The capabilities of our team and equipment allow us to design, develop, and do more than just OEM and ODM.
7. The production area is about 20000square meter (WENZHOU).

Product Description

WOSS
Electrical Specifications
Voltage 120VAC, 60Hz
Fluorescent 500VA
Motor 1/8Hp
Incandescent 500W
Time Delay 15 Sec to 30 Mins
Light Level 30 Lux-Daylight
Control Relay Control
Coverage
Coverage 150°,  980ft2
Environment Specifications
Operating Temperature 32℉-131℉
Material Specifications
Material PC
Standards & Certifications
Certification/Listing UL
Warranty 2 Year Limited

WOSS-K
Electrical Specifications
Voltage 120VAC, 60Hz
Motor 1/8Hp
Incandescent Min.25W to Max.500W
Time Delay 15 Sec to 30 Mins
Light Level 30 Lux-Daylight
Control SCR Control
Coverage
Coverage 150°,  980ft2
Environment Specifications
Operating Temperature 32℉-131℉
Material Specifications
Material PC
Standards & Certifications
Certification/Listing UL
Warranty 2 Year Limited


Lighting controls have traditionally been used to control the intensity of lighting within a space and allow the atmosphere of the room to be adjusted to the user’s desires. Over the last decade, occupancy sensors have been designed into control systems that control a wide variety of areas in residential, commercial and industrial buildings. These applications consist of individually enclosed offces, large open work spaces, conference rooms, hallways, storage closets and more. Overall, occupancy sensors together with built-in photocell technology have been proven to reduce lighting related energy consumption up to 45 percent depending on application.

Currently, modern building designs are integrating electric light sources with natural light that penetrates the room through strategically placed windows. This enables the building owner to incorporate motion and photo controls to automatically adjust the electric lighting to a lower level and takes advantage of the natural light entering the space. The overall goal is to provide a comfortable and well-illuminated space for the user while reducing energy consumption and saving electricity.

With multi-level wiring, installing occupancy/vacancy sensors in residential, commercial and industrial buildings can reduce lighing energy consumption signifcantly. Hongki sensors are of the highest quality for energy management and conservation. Our occupancy/vacancy sensors are place in residential, commercial or industrial buildings and can reduce lighting energy consumption signifcantly.
