- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Hotel
-
Working Time (hours):
-
25000
-
Product Weight（kg）:
-
0.6
-
Wattage:
-
12
-
Working Temperature(℃):
-
-20-40
-
Lamp Luminous Flux(lm):
-
800
-
Brand Name:
-
starlux
-
Working Lifetime(Hour):
-
25000
-
Beam Angle(°):
-
360
-
Input Voltage(V):
-
AC 220V
-
CRI (Ra>):
-
70
-
IP Rating:
-
IP20, Ip20
-
LED Chip Brand:
-
STARLUX
-
Product name:
-
Sensor lamp
-
Light source:
-
12W LED
-
Color:
-
white
-
Material:
-
Glass
-
Application fields:
-
Entrance,Hallway,Aisle,Kitchen,ect
-
Certificates:
-
CE ROHS
-
Style:
-
Celing lamp
-
Warranty:
-
3 Years
Quick Details
-
Type:
-
INFRARED SENSOR LAMP
-
Lamp Luminous Efficiency(lm/w):
-
80
-
Warranty(Year):
-
3-Year
-
Application:
-
Hotel
-
Working Time (hours):
-
25000
-
Product Weight（kg）:
-
0.6
-
Wattage:
-
12
-
Working Temperature(℃):
-
-20-40
-
Lamp Luminous Flux(lm):
-
800
-
Brand Name:
-
starlux
-
Working Lifetime(Hour):
-
25000
-
Beam Angle(°):
-
360
-
Input Voltage(V):
-
AC 220V
-
CRI (Ra>):
-
70
-
IP Rating:
-
IP20, Ip20
-
LED Chip Brand:
-
STARLUX
-
Product name:
-
Sensor lamp
-
Light source:
-
12W LED
-
Color:
-
white
-
Material:
-
Glass
-
Application fields:
-
Entrance,Hallway,Aisle,Kitchen,ect
-
Certificates:
-
CE ROHS
-
Style:
-
Celing lamp
-
Warranty:
-
3 Years
Welcome to use our ST77AE Infrared LED Sensor Lamp!

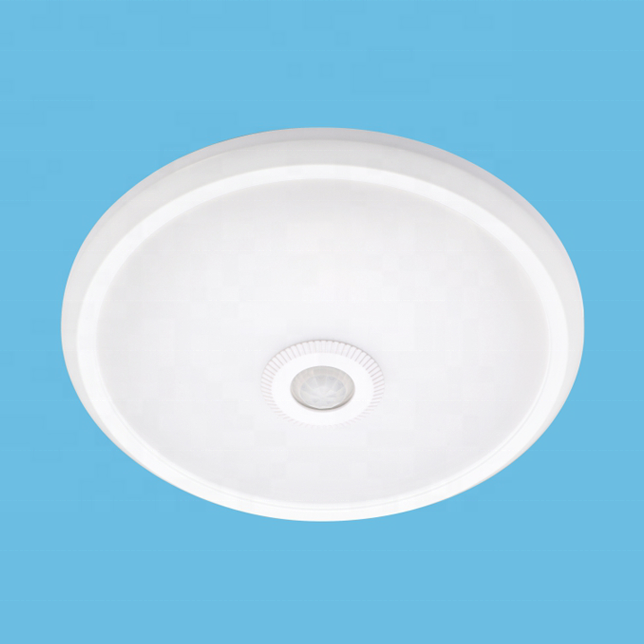

Modern Indoor Home design ST77AE Round 12W LED Ceiling light Sensor lamp PIR Infrared Motion detector lights
The product is an energy-saving automatic sensor lamp, adopting integrated circuit and precise detecting components. It gathers automatism, convenience, safety, saving-energy and practical functions. Its performance is stable. It can identify day and night. The lamp can turn on when one enters detection field and can turn off automatically when one leaves detection field.
Specifications:
Power Source: 110-240V/AC Detection Range: 360 °
Power Frequency: 50/60Hz Detection Distance: max.6m(<24 ℃ )
Ambient Light:<3-2000LUX(adjustable) Working Temperature: -20~+40 ℃
Emergency load: 1.2W(DC) Battery: 3.7V/1500mAH lithium battery
Time Delay:Min.10sec ± 3sec Working Humidity : <93%RH
Max.3min ± 30sec Installation Height: 2.2-4m
Rated Load: ST77AE (12W) Detection Moving Speed: 0.6-1.5m/s
ST77BE(16W)
ST77DE(20W)
Lifetime and Warranty:
|
Lifetime (hr) |
26000-45000 at least |
|
Warranty |
3 years |
FUNCTIONS:
Ø Can identify day and night: The consumer can adjust working state in different ambient light. It can work in the daytime and at night when it is adjusted on the “sun” position (max). It can work in the ambient light less than 3LUX when it is adjusted on the “moon” position (min). As for the adjustment pattern, please refer to the testing pattern.
Ø Time-Delay is added continually: When it receives the second induction signals within the first induction, it will restart to time from the moment.
Ø Adjustable Time Delay: the length of time delay could be set according to the customers’ requirement, the minimum time of this item is 10sec±3sec, and the maximum is 3min±30sec.
INSTALLATION:
Ø Switch off the power.
Ø Unscrew the plastic screw nut and remove the PC lampshade.(refer to figure1)
Ø Pass the wire through the hole in the bottom and connect the power wire into connection-wire column according to the connection-wire diagram. Install the sensor lamp in the position where you need with inflated screws. (refer to figure2)
Ø Switch on the power and test it.
CONNECTION-WIRE DIAGRAM:
SENSOR INFORMATION:
Our company adopts automatic machines, such as: SMD, auto component inserter, wave solder, auto injection machines,the daily output is up to 20000-30000 pcs.
The concept of our company is"advocating new modern living environment",which focuses on researching and developing the contemporary household intelligent product.Our product can be truly satisfied for different customer's requirement,most of them are available with CE GS ROHS R&TTE REACH certification .
