Quick Details
-
Warranty:
-
one year
-
price:
-
best
-
material:
-
Zinc alloy
-
weight:
-
0.3KG
-
stablity:
-
Excellent
-
using:
-
office cabinet,sauna cabinet,document cabinet
-
unlock:
-
password(4-10 byte)
-
styles:
-
keypad cabinet lock
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Color:
-
Black
-
power:
-
DC6V
-
Warranty:
-
one year
-
price:
-
best
-
material:
-
Zinc alloy
-
weight:
-
0.3KG
-
stablity:
-
Excellent
-
using:
-
office cabinet,sauna cabinet,document cabinet
-
unlock:
-
password(4-10 byte)
-
styles:
-
keypad cabinet lock

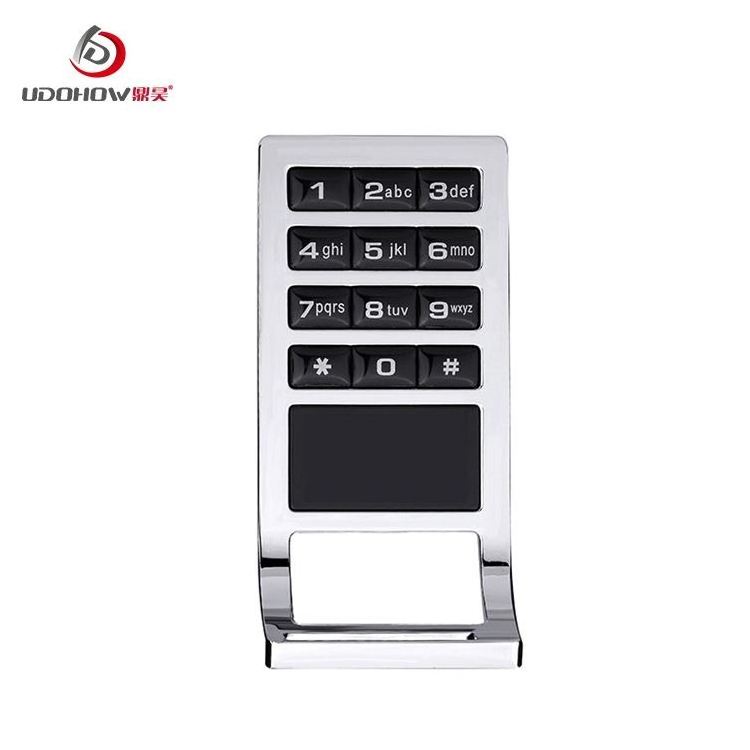

UDOHOW Top Quality RFID Keypad Electronic Cabinet Lock for Gym DH-113
1.Product Specifications
1.Input password and turn handle to open door, don't need card or key.
2.Have two versions: Master code version or Jump code version
3.Two Classes management--- Master code, and User code.
4.Low power alarm: When battery have not enough power, lock will have a indication.
5.Emergency open: When battery power off and can't open lock, at this time can use a external power supply to insert into a socket of lock to supply power to open lock .
6. 1-10 numbers, you can set password as you want.
7. Easy installation and operation, very easy to use.
8. Usage: filing cabinet, wardrobe, drawer...
Unlock method : Password
Power Supply
:
DC6V can be used for more than 1 year. Attached power supply head is prepared.
The main chip of circuit board is the US.
Texas Instrument Chip, the power consumption is low.
Static Current:≤5-10uA
Lock Opening Current: about 300mA(last for 0.3s).
Working temprature:-20~70 °C
Humidity:≤95% RH;
Lack of voltage indication
:
when the voltage is less than 4.8V, the lock will give a indication and the red LED will light. At the same time, you can still open the lock for more than 50 times;
Application
:
hotels sauna centres , office cabinet doors and so on
System Settings
:
a front lock body, a core of lock,a door holder module.
Size:
Operate method: Input password and turn handle
Main parts: Lock panel and lock body, handle door catch.
[ External power supply(Emergency power supply used to supply power to lock when battery have no power), this parts would be send by free as from 1% to 3%
Power supply: 4 pcs AA Batteries
