Quick Details
-
Standard:
-
AiSi GB/T
-
Place of Origin:
-
CHN
-
Model Number:
-
sk5 ck45 ck75 ,aisi 1080 1095
-
Application:
-
Automotive suspension system, mechanical spring
-
Product Name:
-

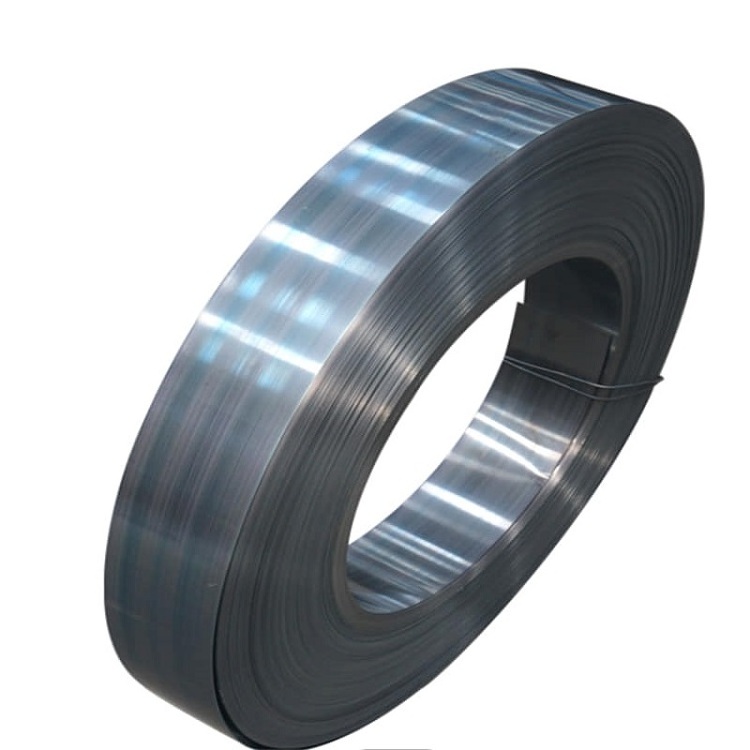

Low Carbon Spring Steel Strip
-
Material:
-
sk5 ck45 ck75 ,aisi 1080 1095
-
Surface:
-
Grey-blue,Nature
-
Technique:
-
Cold Rolled
-
MOQ:
-
5 Tons
-
Edge:
-
Mill Edge Slit Edge
-
Width:
-
5-300mm
-
Thickness:
-
0.1-10mm
-
Hardness:
-
40-55HRC
-
Price Term:
-
FOB
Quick Details
-
Grade:
-
sk5 sk7 65Mn AiSi 1095
-
Tolerance:
-
±1%
-
Dimensions:
-
0.1-10mm*5-300mm
-
Standard:
-
AiSi GB/T
-
Place of Origin:
-
CHN
-
Model Number:
-
sk5 ck45 ck75 ,aisi 1080 1095
-
Application:
-
Automotive suspension system, mechanical spring
-
Product Name:
-
Low Carbon Spring Steel Strip
-
Material:
-
sk5 ck45 ck75 ,aisi 1080 1095
-
Surface:
-
Grey-blue,Nature
-
Technique:
-
Cold Rolled
-
MOQ:
-
5 Tons
-
Edge:
-
Mill Edge Slit Edge
-
Width:
-
5-300mm
-
Thickness:
-
0.1-10mm
-
Hardness:
-
40-55HRC
-
Price Term:
-
FOB
Products Description
|
Product Name
|
Spring Steel Strip
|
|
|
|
|||
|
Standard
|
AiSi/SAE JIS EN GB/T
|
|
|
|
|||
|
Grade
|
Carbon Steel
|
AISI 1006 1008 1010 1045 1050 1060 1070 1074 1075 1080 1095 Q195 Q215A 45# 50# 60# 70# SUP6 SUP7 SUP9 SUP9A SU910 60Si2Mn 65Mn 70Cr3 85Cr7 55CrMnA
|
|
|
|||
|
|
Alloy
|
50CrV4 51CrV4 60Si2Mn 55CrMnA etc.
|
|
|
|||
|
|
Stainless Steel
|
AiSi 302 304 316 EN1.4310 1.4401 17-7PH etc.
|
|
|
|||
|
Thickness
|
0.1-10mm
|
|
|
|
|||
|
Width
|
5-300mm
|
|
|
|
|||
|
Hardness
|
40-55 HRC
|
|
|
|
|||
|
Modulus of elasticity
|
190-210 Gpa
|
|
|
|
|||
|
Tensile strength
|
600-1300 Mpa
|
|
|
|
|||
|
Yield strength
|
400-1000 Mpa
|
|
|
|
|||
|
Applications
|
Automotive suspension system, seat spring, mechanical spring, knife blade, etc
|
|
|
|
|||
|
|
Vehicle suspension system, large mechanical equipment
|
|
|
|
|||
|
|
Food processing equipment, medical equipment, chemical equipment
|
|
|
|
|||
|
|
Electrical connectors, electronic devices, elastic conductive materials etc.
|
|
|
|
|||
|
MOQ
|
5 ton
|
|
|
|
|||
|
Price term
|
FOB EXW
|
|
|
|
|||
|
Sample
|
Provided for your evaluation
|
|
|
|
|||
Product Details Display
Technical Parameters
We have selected typical materials as a reference, and we will provide quality inspection certificates according to the material or use you need.
|
Grade
|
C
|
Mn
|
Si
|
Cr
|
S
|
P
|
Ni
|
|
50CrV4
|
0.47-0.55
|
0.70-1.10
|
0.10-0.40
|
0.80-1.10
|
0.025max
|
0.025max.
|
--
|
|
AiSi 301
|
0.15max.
|
2.0max.
|
--
|
16-18
|
--
|
--
|
6-8
|
|
65Mn
|
0.60-0.70
|
0.90-1.20
|
0.17-0.37
|
--
|
0.030max
|
0.030max
|
--
|
|
Grade
|
Modulus of elasticity
|
Tensile strength
|
Yield strength
|
Elongation
|
Hardness
|
Heat treatment condition
|
|
50CrV4
|
210Gpa
|
1100-1300Mpa
|
800-1000Mpa
|
|
32-42HRC
|
Cold rolling, quenching
|
|
AiSi 301
|
190Gpa
|
1200Mpa min.
|
500Mpa min.
|
|
25-39HRC
|
Cold rolling, quenching
|
|
65Mn
|
200Gpa
|
800Mpa min.
|
600Mpa min.
|
10% min.
|
48-55HRC
|
Quenching and tempering
|
