Quick Details
-
Wheel Size(mm):
-
180
-
Surface Roughness(μm):
-
0.32 μm
-
Table Size(mm):
-
460*180
-
Year:
-
2021
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WOJIE
-
Voltage:
-
Customer's Requirement
-
Dimension(L*W*H):
-
1550*1150*1590
-
Weight (KG):
-
750
-
Power (kW):
-
1.1
-
Type:
-
Surface Grinding Machine
-
Table cutting area:
-
500*190*335mm
-
Distance From Table Surface To Center:
-
335mm
-
Work load:
-
200mm
-
Number of T -Slot:
-
14*1mm
-
Table speed:
-
3-23m/min
-
Front and rear wheel feed:
-
0 02/Graduation 2.5/revolution
-
On the hand wheel feed:
-
0.01/Graduation 1.25/revolution
-
Wheel Size:
-
180*13*31.75mm
-
Cooling pump:
-
0.04mm
Quick Details
-
Grinding Length(mm):
-
500
-
Table Travel (X) (mm):
-
500
-
Table Travel (Y) (mm):
-
190
-
Wheel Size(mm):
-
180
-
Surface Roughness(μm):
-
0.32 μm
-
Table Size(mm):
-
460*180
-
Year:
-
2021
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WOJIE
-
Voltage:
-
Customer's Requirement
-
Dimension(L*W*H):
-
1550*1150*1590
-
Weight (KG):
-
750
-
Power (kW):
-
1.1
-
Type:
-
Surface Grinding Machine
-
Table cutting area:
-
500*190*335mm
-
Distance From Table Surface To Center:
-
335mm
-
Work load:
-
200mm
-
Number of T -Slot:
-
14*1mm
-
Table speed:
-
3-23m/min
-
Front and rear wheel feed:
-
0 02/Graduation 2.5/revolution
-
On the hand wheel feed:
-
0.01/Graduation 1.25/revolution
-
Wheel Size:
-
180*13*31.75mm
-
Cooling pump:
-
0.04mm

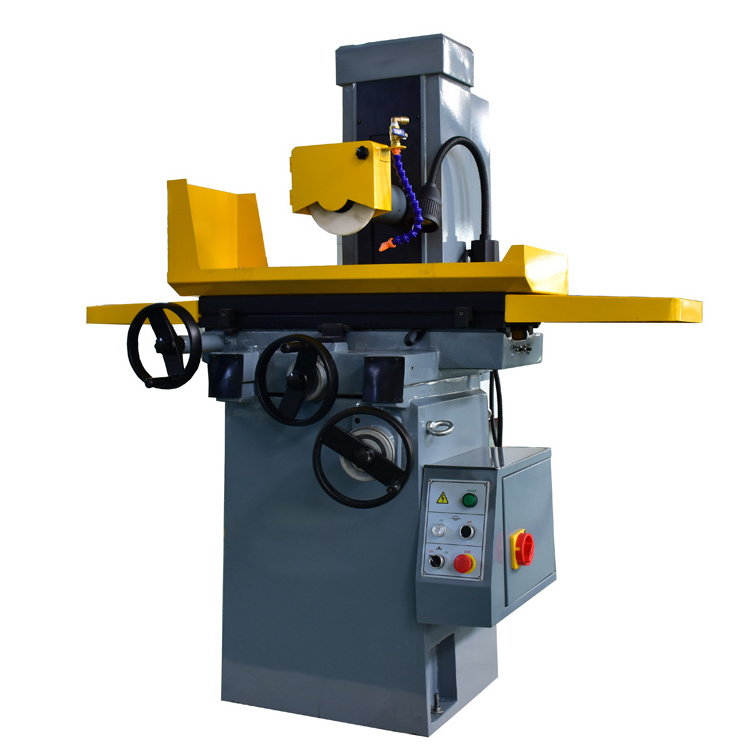

Detailed Images
Product Application
Adopt the exceeding precise class 7(P4 level) ball bearing for spindle;
Bring transmission by synchronous belt, operating simple and convenient;
3-axis manual operation, X, Y axis can be electric auto operation;
High rigidity H-frame column with spindle center to table;
Enhanced ribbed full cast iron base;
Enlarged spindle housing for heavier grinding;
Cartridge w/4 pre-load class 7 (P4) bearing;
Roller steel balls on linear table ways for easy and smooth longitudinal movements;
Double -V saddle ways for rigidity;
Manual lubrication system;
Product main technical specifications:
Adopt the exceeding precise class 7(P4 level) ball bearing for spindle;
Bring transmission by synchronous belt, operating simple and convenient;
3-axis manual operation, X, Y axis can be electric auto operation;
High rigidity H-frame column with spindle center to table;
Enhanced ribbed full cast iron base;
Enlarged spindle housing for heavier grinding;
Cartridge w/4 pre-load class 7 (P4) bearing;
Roller steel balls on linear table ways for easy and smooth longitudinal movements;
Double -V saddle ways for rigidity;
Manual lubrication system;
Product main technical specifications:
|
Technical Parameters
|
|
Unit
|
M618
|
|
|
Table maximum cutting area((L X Wx H )
|
|
mm
|
500*190*335
|
|
|
Working table movement |
Max Grinding Length
|
mm
|
500
|
|
|
|
Max. Grinding width
|
mm
|
190
|
|
|
Distance From Table Surface To Spindle Center
|
|
mm
|
335
|
|
|
Slide way
|
|
|
V-type rall with steel-ball
|
|
|
Maximum work load
|
|
kg
|
200
|
|
|
Table size
|
|
mm
|
460*180
|
|
|
Number of T -Slot
|
|
mm*n
|
14*1
|
|
|
Table speed
|
|
m/min
|
3-23
|
|
|
Front and rear wheel feed
|
|
mm
|
0 02/Graduation 2.5/revolution
|
|
|
On the hand wheel feed
|
|
mm
|
0.01/Graduation 1.25/revolution
|
|
|
Wheel Size (diaXwidth X bore)
|
|
mm
|
180*13*31.75
|
|
|
Spindle speed |
50HZ
|
rpm |
2800
|
|
|
|
Variable frequency motor (matching)
|
|
0--6000
|
|
|
Spindle motor
|
|
Kw
|
1.1
|
|
|
Cooling pump
|
|
Kw
|
0.04
|
|
|
Packing Size (LxWxH)
|
|
mm
|
1240*1080*1800
|
|
|
Cross,Net
|
|
T
|
0.75,0.65
|
|
Standard Accessories:
Coolant tank
Shandard electro magnetic chuck
Balancing arbor
Wheel flange
Wheel extractor
Leveling wedge and bolt
Tool box and tools
Standard grinding wheel
Working lamp
Wheel dresser shant(not include diamond pen)
Build inelectro magnetic chuck controller
2 axis DRO
CE protection
Machine vice
Vacumn pump
Coolant tank
Shandard electro magnetic chuck
Balancing arbor
Wheel flange
Wheel extractor
Leveling wedge and bolt
Tool box and tools
Standard grinding wheel
Working lamp
Wheel dresser shant(not include diamond pen)
Build inelectro magnetic chuck controller
Optioanl accessories:
2 axis DRO
CE protection
Machine vice
Vacumn pump
Product Description
