Quick Details
-
Brand Name:
-
Woolkom
-
Model Number:
-
43TD
-
Screen:
-
4.3" Color TFT LCD
-
Video Input:
-
AV1/AV2
-
Power Supply:
-
DC 12V-24V
-
Size:
-
4.3 inch Lcd Mirror Screen
-
Operation System:
-
NTSC Automatically
-
System:
-
PAL NTSC AUTO
-
Operation temperature:
-
-25~+75 Celsius degree
-
Aspect ratio:
-
16:9
Quick Details
-
Resolution:
-
648X488 pixels, 648X488 pixels
-
Connection:
-
AV connector, 4 pin connector
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Woolkom
-
Model Number:
-
43TD
-
Screen:
-
4.3" Color TFT LCD
-
Video Input:
-
AV1/AV2
-
Power Supply:
-
DC 12V-24V
-
Size:
-
4.3 inch Lcd Mirror Screen
-
Operation System:
-
NTSC Automatically
-
System:
-
PAL NTSC AUTO
-
Operation temperature:
-
-25~+75 Celsius degree
-
Aspect ratio:
-
16:9
Woolkom Brand 7inch TFT-LCD Mirror Display;
|
Product description: |
|

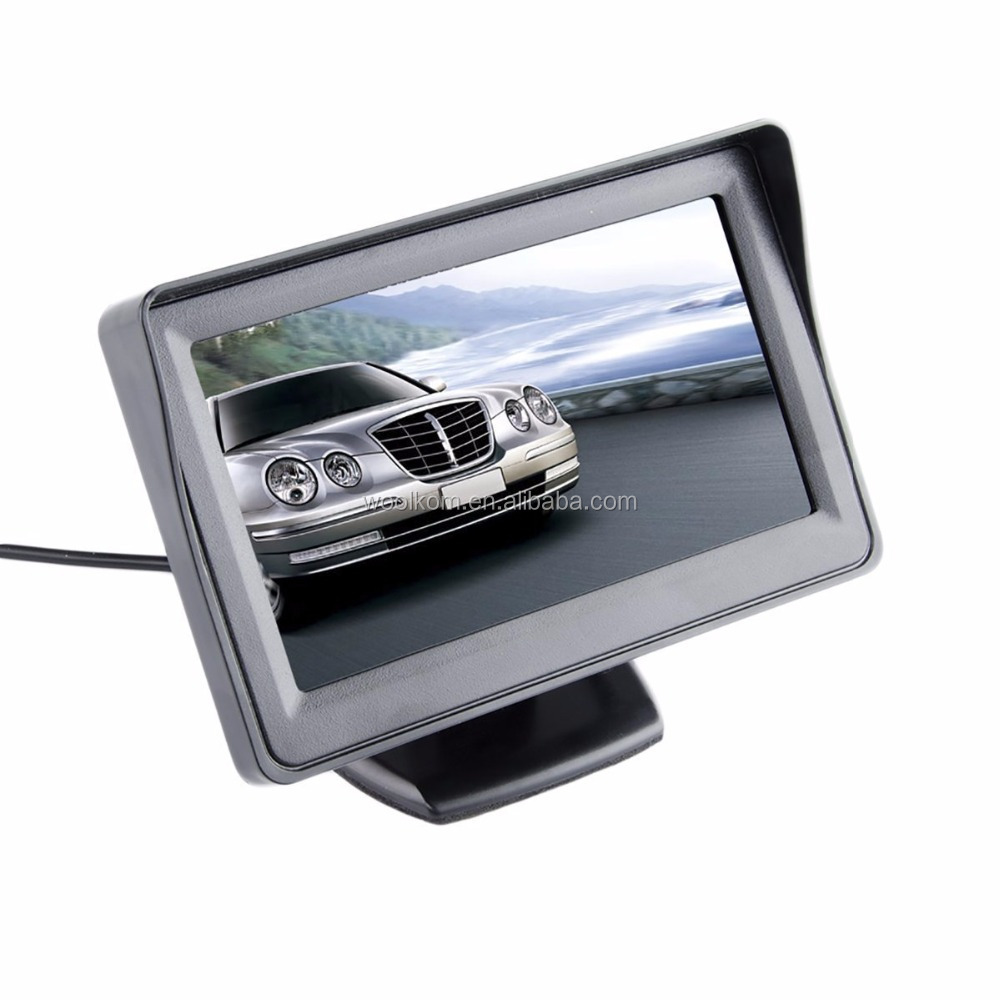

1. 4.3" TFT LCD Color Screen Monitor |
|
2. Contrast: 350 : 1 |
|
3. Display Format: 16:9 |
|
4. Video: 2 AV input auto switching |
|
5. System: PAL / NTSC system(auto switch) |
|
6. Power supply: DC 12V±10% |
|
7. S/N Ratio: ≥48dB |
|
8. Resolution: 480 x R.G.B x 272 dots, high resolution, digital panel |
|
9. Video output: RCA connector, 1.0vp-p.750hm |
|
10. White Balance: Auto |
|
11. Waterproof Level: IP67 |
|
12. Suitable for camera/DVD/VCD player |
|
13. Ultra-low power consumption, to prevent over heat. |
|
14. Operating Temperature(Deg. C): -20~+75(RH95% Max.) |
|
15. Storage Temperature(Deg. C): -30~+85(RH95% Max.) |
|
16. Product Size: 285mm x 82mm x 20mm |
|
17. Woolkom brand/Neutral or OEM is acceptable |
|
Product Features: |
|
1. It is with high quality and good durability |
|
1. With small appearance,convenient for carry |
|
3. Support 2-channel video input(V1, V2) |
|
4. With high definition for good image |
|
5. Support multi-role display |
|
6. Display black screen on no signal |
|
Package Contain: |
|
1 x 4.3 inch TFT LCD Monitor |
|
2 x Power Cable(1.5m/4.5ft) |
|
1 x English User Manual |
- The monitor with flexible mounting pad and 3M tape mounts on either the vehicle windshield or dashboard.
- Choose a suitable monitor location in your vehicle that will not block your view for safe driving.
- Clean the mounting area you¡¯ve chosen with a quality glass cleaner or alcohol to remove any dirt or residue.
- Peel off the protective film from the 3M adhesive mounting pad on the bottom of the monitor bracket and then affix the pad to the desired location. (NB: Once put in place, the mounting pad cannot be easily removed. Therefore, before mounting, please be sure of your desired location.)
- Connect the power cable to the monitor cable.
- Conceal the monitor cable behind the windshield trim piece and then continue along under the head liner to the rear of the vehicle.
Woolkom Industry FAQ:
Q1. What is your terms of delivery?
A:
EXW, FOB, CFR, CIF, CPT...
Q2. What is your terms of Packing?
A:
Generally, we pack our goods in neutral color boxes and brown cartons.
If you need, we can OEM your brand Giftbox, Manual, Label, Cartons artwork.
Q3. What is your terms of payment?
A:
We always do T/T 30% as deposit, and 70% before shipment.. For small orders Or Samples order Paypal is acceptable.
Q4. How about your delivery time?
A:
Generally, it will take 3-7 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A:
Yes, we can produce according to your samples or technical drawings. We can build the molds and fixtures, but it need MOQ
Q6. What is your sample policy?
A:
We can provide the sample for you if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost. We can deduct the sampels cost for you when have the Bulk order.
Q7. Do you test all your goods before delivery?
A:
Yes, we have 100% test before delivery. All of our products have Passed the CE and Rohs.
Q8. What's your quality Warranty policy?
A:
Our products Warranty time always 1-2 years, if any defective products we can make up for you at free cost with the next new orders.
