Small Fridge Ice Maker Faucet Drinking Bottled Water Dispenser Pump Dispensing System For 5 Gallon

Specification

The Flojet bottled water dispenser system is a popular solution for dispensing water from large water bottles in various settings. Here are some common applications for Flojet bottled water dispenser systems:

1. Home Use:

   • Many homeowners use Flojet bottled water dispensers as a convenient way to access purified or spring water at home without the need for a built-in water filtration system.

2. Office Environments:

   • Offices often utilize bottled water dispensers to provide employees with easy access to drinking water. It eliminates the need for individual water coolers at each desk.

3. Commercial Establishments:

   • Restaurants, cafes, and other commercial establishments may install Flojet systems to offer customers a convenient and hygienic way to access water.

4. Retail Stores:

   • Retail stores, especially those selling bottled water, can use Flojet dispensers to offer samples or provide customers with a place to fill their own reusable bottles.

5. Healthcare Facilities:

   • Hospitals, clinics, and other healthcare settings may use Flojet dispensers to provide clean water for patients, staff, and visitors.

6. Educational Institutions:

   • Schools, colleges, and universities may install bottled water dispensers in various locations on campus to ensure students and staff have access to clean drinking water.

7. Gyms and Fitness Centers:

   • Fitness facilities often install bottled water dispensers to keep members hydrated during workouts.

8. Outdoor Events:

   • Flojet dispensers can be used at outdoor events, such as concerts, festivals, and sports games, to provide attendees with a convenient source of water.

9. Hotels and Resorts:

   • Hospitality establishments may offer bottled water dispensers in common areas or guest rooms to enhance guest experience.

10. Construction Sites:

    • On construction sites or other temporary locations, bottled water dispensers can provide a convenient source of hydration for workers.

11. RVs and Boats:

    • Flojet systems are popular in recreational vehicles (RVs) and boats, providing a reliable way to access clean water on the go.

12. Emergency Preparedness:

    • In emergencies, bottled water dispensers can be set up in temporary shelters to provide clean drinking water to those affected.

Remember that the suitability of the Flojet bottled water dispenser system depends on the specific model and its features. It's important to review the product specifications and guidelines to ensure it meets the requirements of the intended application.

HOW THE SYSTEM WORKS

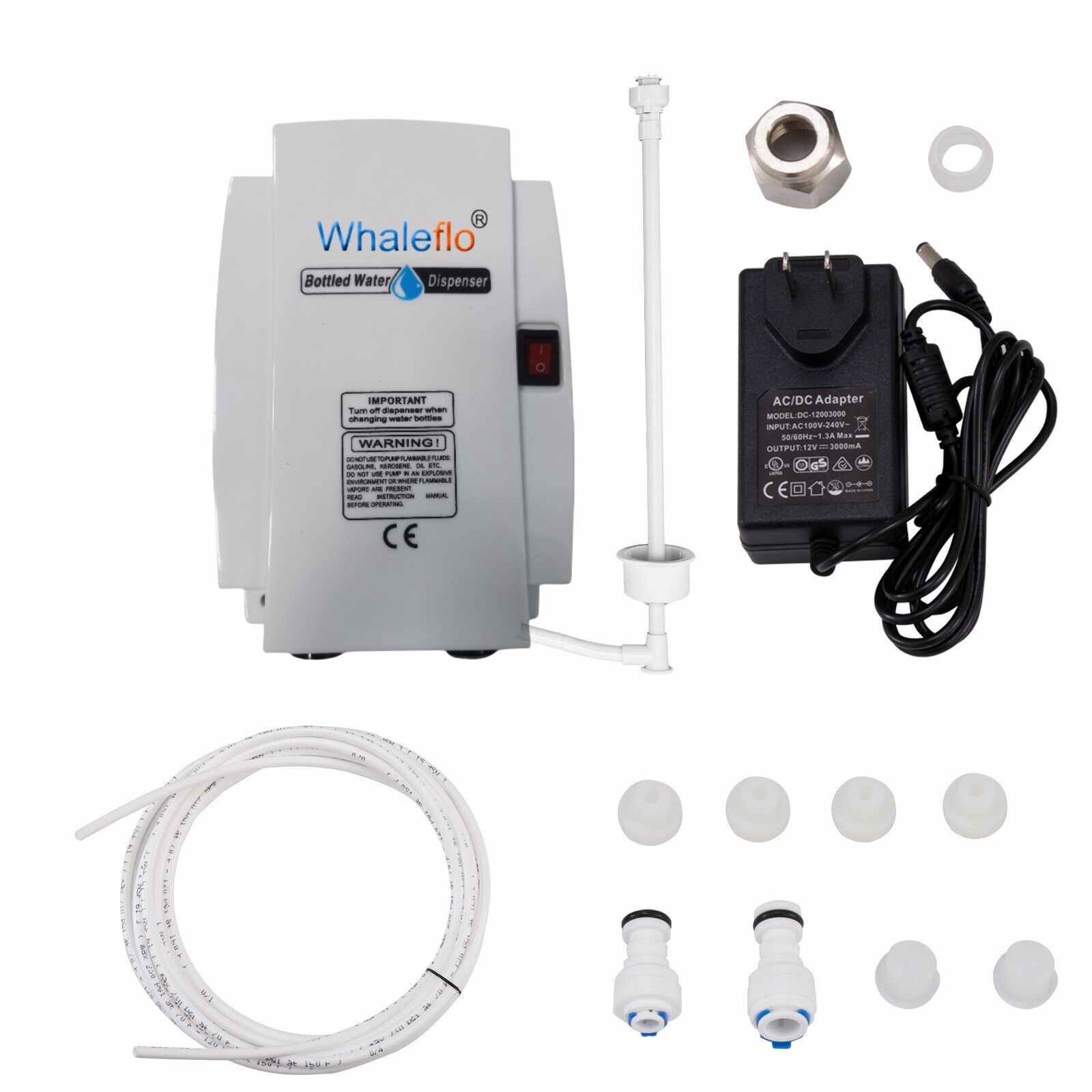

Whaleflo Bottled water pump for refrigerator Similar to the Flojet Bottled Water Dispensing System was designed to pump puried water from a  commercial 5-gallon purified water bottle. The system will deliver the water under pressure to an individual drinking water faucet,the water inlet of a refrigerator for the ice maker and chilled drinking water tap, and to certain commercial coffee/tea brewers.

When the suction wand is inserted into the standard 5-gallon bottle, it will activate the float switch on the end of the wand and turn on the pump. This same float switch shuts off the system when the bottle is empty. The wand has a built-in back-flow preventer valve that prevents water in the system from flowing back into the bottle, or spilling while changing bottles.

The heart of the system is the pump module that automatically adjusts the flow and pressure to fill an appliance or faucet, and stops automatically.

The system is equipped with an automatic thermal cut-off device for additional protection.

TROUBLESHOOTING

System Will Not Dispense Water

• Check on/off switch position
• Check power to the dispensing system
• Check the location of the suction wand in the bottle
• Check for empty bottle
• Check for air in system

Discharge Tube Leaks At Fitting

• Push tube all the way into tube stop
• Remove tube and cut 1/4 in.(6.35mm)off end,square and reinstall
• Check correct tube size in fitting,tube size is 1/4 in.(6.35mm)O.D.Fitting should be 1/4 in.(6.35mm)I.D.

System Gets Warm and Turns Off

• Check the float switch
• Check for leaks in discharge tube

System Will not Shut-Off

• Check for leaks in tubing system
• Check for leaks at bube fittings
• Check for leaks at faucet,ice maker or refrigerator water valve
• Check pressure switch by turning faucet off and on
• Check float switch position in bottle

System Continually Turns Off and On While in Use

• Check for restriction devise at appliance inlet.
• Check for filter unit in line.
• Check for internal filters in the refrigerator

Q: What is your MOQ?

A: no MOQ requirement for sample testing.



Q: Do you accept OEM/ODM service?

A: Yes. The MOQ is 1000 pcs per model per order for OEM/ODM orders ( offer private brands,  labels, different colors etc.)



Q: How can I pay for my order?

A: we accepted  Alibaba Trade Assurance pay, T/T, Paypal, Western Union Transfer.etc.



Q: What is your terms of payment?

A: Payment is less than 5000USD, 100% in advance. Payment is more than 5000USD, 30% T/T in advance, finish balance before cargo ready.

If you have any other questions, please feel free to contact us.



Q: What is the delivery time?

A: It depends on the order quantity. It usually takes 15-25 days upon receipt of your 30% deposit by T/T.

The sample can be delivered within 7 days.



Q: How about the freight cost?

A: It depends on your final order quantity, final gross weight and final dimension when shipped by sea and by air.

If orders by air, we advise you to use your own TNT, FedEx, DHL account for freight collection.



Q: What is your warranty?

A: 1-2 years, and within 24 hours reply will be provided to solve customers' problems.
