Quick Details
-
Lock Body:
-
220Lx34Wx38H(mm)
-
Magnetic Plate:
-
105Lx25Wx3H(mm)
-
Bolt:
-
16(length)* 16(diameter)(mm)
-
Voltage:
-
12VDC±10%
-
Start Current:
-
1200mA
-
Standby Current:
-
200mA
-
Signal Output:
-
Door signal: NO/COM
-
Suitable For:
-
Wooden door, metal door, fireproof door, glass door
-
Weight:
-
1.0kg
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YLI
-
Feature:
-
Fail Safe
-
Lock Body:
-
220Lx34Wx38H(mm)
-
Magnetic Plate:
-
105Lx25Wx3H(mm)
-
Bolt:
-
16(length)* 16(diameter)(mm)
-
Voltage:
-
12VDC±10%
-
Start Current:
-
1200mA
-
Standby Current:
-
200mA
-
Signal Output:
-
Door signal: NO/COM
-
Suitable For:
-
Wooden door, metal door, fireproof door, glass door
-
Weight:
-
1.0kg
Product Description
Product Application

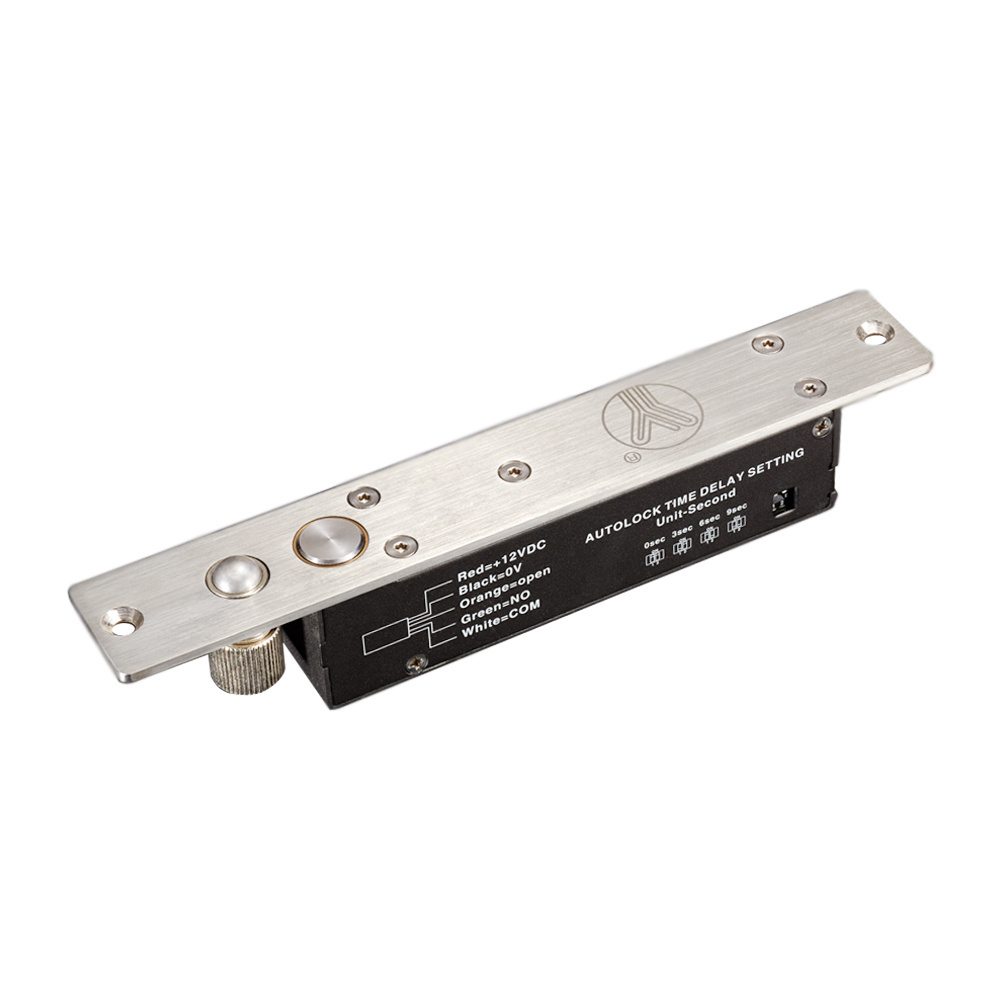

YB-800A to prevent the damage of the lock caused by the improper locking position. To align the position of the magnetic plate and the bolt in a short time, which can reduce the relock time of the electric bolt.
YB-800A is an Fail Safe electric bolt with all-metal construction.with 304 stainless steel solid bolt and 2000kg holding force. The Door signal is NC.It can operate at the temperature of 60 ℃ or -40℃ below zero based on the all-metal linkage parts.
|
Feature
|
Fail Safe
|
|
|
||
|
Lock Body
|
220Lx34Wx38H(mm)
|
|
|
||
|
Magnetic Plate
|
105Lx25Wx3H(mm)
|
|
|
||
|
Bolt
|
16(length) * 16(diameter)(mm)
|
|
|
||
|
Bolt
|
12VDC±1 0 %
|
|
|
||
|
Start Current
|
1200mA
|
|
|
||
|
Standby Current
|
200mA
|
|
|
||
|
Signal Output
|
Door signal: NO/COM
|
|
|
||
|
Suitable For
|
Wooden door, metal door, fireproof door, glass door
|
|
|
||
|
Detection Distance
|
Within 8mm
|
|
|
||
|
Material
|
304 stainlesssteel , wiredrawfinishing
|
|
|
||
|
Weight
|
1.0kg
|
|
|
||
Installation Diagram
