Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
TW Equipment
-
Model Number:
-
DS-906A
-
Warranty:
-
12 Months
-
Rim clamp from outside:
-
10-20"
-
Rim clamp from inside:
-
13-24"
-
Turntable rotation:
-
7rpm
-
Net weight/grass weight:
-
221kg/250kg
-
Packing size:
-
1120*860*860mm
-
Tire width:
-
3-14"
Quick Details
-
Motor Power:
-
0.75/1.1KW
-
Operating Pressure:
-
8-10bar
-
Power Supply:
-
110v 220v 240v 380v
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
TW Equipment
-
Model Number:
-
DS-906A
-
Warranty:
-
12 Months
-
Rim clamp from outside:
-
10-20"
-
Rim clamp from inside:
-
13-24"
-
Turntable rotation:
-
7rpm
-
Net weight/grass weight:
-
221kg/250kg
-
Packing size:
-
1120*860*860mm
-
Tire width:
-
3-14"

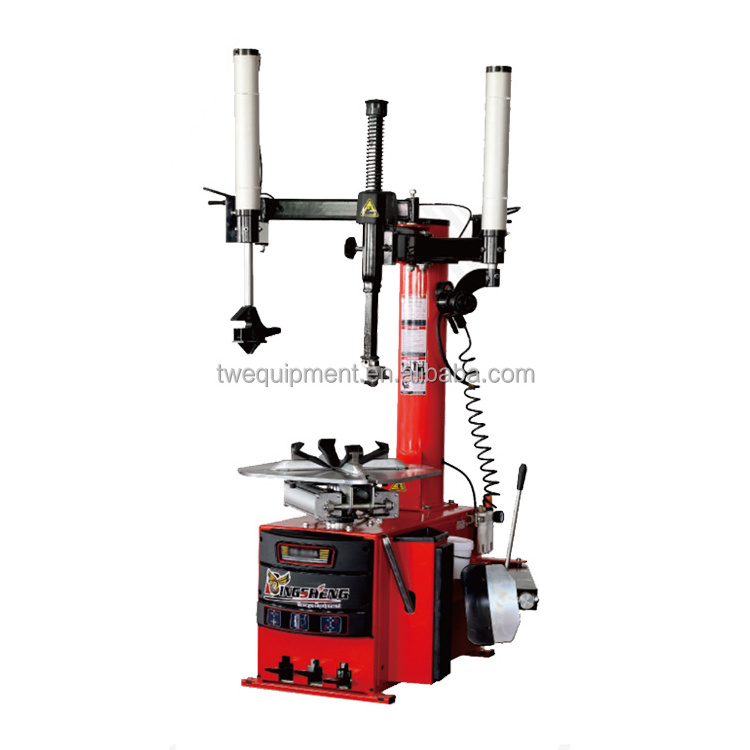

Product introduction
1. Equipped with double helper arm,save space,easily operation.
2. The motion structure of the four self centering damping jaws on the turntable is link mechanism,which has synchronizing function and self centering function when clamping from outside to inside.
3. One-step molding design of mobile slider,made it not easy to deformation.
4. The turntable has self centering and fine adjustment function which demount the tire more easy and smooth.
5. The noise is low when running.
6. Equipped with protective sleeves and pads to working head, clamping jaws, and bead breaker, avoid damage to the rim.
7. Body design dignified, thick sheet material, strong rigidity.
8. Universal bead breaker, more suitable for operation.
9. Iron stamping pedal, durable for life (optional aluminum pedal).
10. Change the clamping range by adjusting the position of the slider.
tire changer with
double
Assist Arm
|
Voltage
|
110v 220v 240v 380v
|
|
Rim clamp from outside
|
10-20"
|
|
Rim clamp from inside
|
13-24"
|
|
Power
|
0.75/1.1KW
|
|
Working pressure
|
8-10bar
|
|
Turntable rotation
|
7rpm
|
|
Net weight/grass weight
|
220kg/250kg
|
|
Max.wheel diameter
|
1040mm
|
|
Packing size
|
1120*860*860mm
|
|
Tire width
|
3-14"
|
Related products
About us
Tongwang Equipment Co.,Ltd
Tongwang is a professional large manufacturer of garage equipment, including various kinds of car lift, tire changer ,wheel balancer,car bench, oil drains, motorcycle lifts and related products for over 15 years experience
Warranty
12 month warranty since out of factory ,during warranty time , if parts damaged, we will send to you for free.
