Quick Details
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
CE,CQC, ISO9001, ISO14001, OHSAS18001
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Jinhong solar
-
Model Number:
-
JHSZ
-
Load Power (W):
-
10kw/15kw
-
Output Voltage (V):
-
110V/220V
-
Output Frequency:
-
50/60hz
-
Work Time (h):
-
24 Hours
-
Module number:
-
40 units
-
Module Size:
-
1650 * 992mm
-
Tracking precision:
-
≤ 1°
-
Azimuth angle:
-
-120° ~ +120°
-
Pitch angle:
-
0~60°
-
Power Supply:
-
90~264VAC,47~63HZ
-
Electricity consumption:
-
≤0.25(KW.h)
-
Bracket Material:
-
Hot Galvanizing
-
Design Life:
-
> 25 years
Quick Details
-
Application:
-
Home
-
Solar Panel Type:
-
Monocrystalline Silicon, Polycrystalline Silicon
-
Battery Type:
-
Lead-Acid, Lithium Ion
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
CE,CQC, ISO9001, ISO14001, OHSAS18001
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Jinhong solar
-
Model Number:
-
JHSZ
-
Load Power (W):
-
10kw/15kw
-
Output Voltage (V):
-
110V/220V
-
Output Frequency:
-
50/60hz
-
Work Time (h):
-
24 Hours
-
Module number:
-
40 units
-
Module Size:
-
1650 * 992mm
-
Tracking precision:
-
≤ 1°
-
Azimuth angle:
-
-120° ~ +120°
-
Pitch angle:
-
0~60°
-
Power Supply:
-
90~264VAC,47~63HZ
-
Electricity consumption:
-
≤0.25(KW.h)
-
Bracket Material:
-
Hot Galvanizing
-
Design Life:
-
> 25 years
Product Description

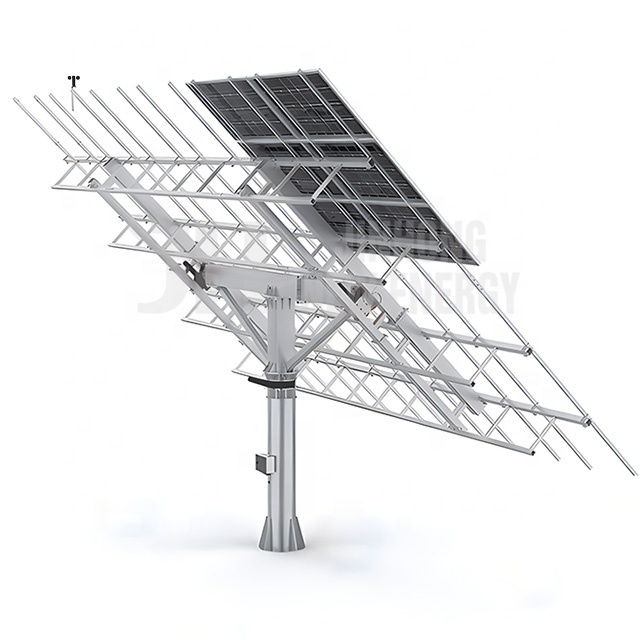

15KW dual axis solar tracker
The dual axis solar tracker solar panels tracking system uses high-precision astronomy algorithm to calculate the angle of the sun, combined with high-performance microcontroller (DSP core), making the system accurate and reliable, not rainy days inte
rference,using international first-line brand tilt sensor, real-time closed-loop feedback tracking angle, automatic tracking, wit
hout human intervention.
Main Features
1) Power generation efficiency increased by 30%~50%.
2) Simple structure ,easy in installation and debugger application.
3) Provide installation video ,introduction and foundation design drawing.
4) Adopting advanced world famous brand components in inclination,electric parts and actuator parts.
5) The tracker could adjusts solar panels into horizontal when meeting strong wind.
6) Adapt to outdoor environment,working temperature -40~70C°.
2) Simple structure ,easy in installation and debugger application.
3) Provide installation video ,introduction and foundation design drawing.
4) Adopting advanced world famous brand components in inclination,electric parts and actuator parts.
5) The tracker could adjusts solar panels into horizontal when meeting strong wind.
6) Adapt to outdoor environment,working temperature -40~70C°.
Product Paramenters
Notice:
This product can be installed with 40PCS-1956*992*40 solar panels . If not, please provide the size (length, width, height) of your solar panel.
|
Dual Axis SolarTracker Solar Panels Tracking System Technical Parameters
|
|
|
|
|||
|
Module Num
|
40 units
|
Module Size
|
1956 * 992*40mm
|
|||
|
Tracking Precision
|
≤ 1°
|
Communicating Protocol
|
RS485-MODBUS
|
|||
|
Power Supply
|
90~264VAC,47~63HZ
|
Electricity Consumption
|
≤0.25(KW.h)
|
|||
|
Elevation angle Angle
|
0° ~ +60°
|
Azimuthal angle Range
|
-120° ~ +120°
|
|||
|
Bracket Area
|
≈ 80m2
|
Operating Temperature
|
-40 ℃ ~ +80 ℃
|
|||
|
Bracket Material
|
Hot Galvanizing
|
Device Weight
|
≈ 2000Kg
|
|||
|
Standard
|
GBT 29320-2012
|
Design Life
|
> 25 years
|
|||
|
Certification
|
CE,CQC, ISO9001, ISO14001, OHSAS18001
|
|
|
|||
Details Images
Bracket
Q235（A3）
Hot Galvanizing
65um.
Hot Galvanizing
65um.
Controller
Power Supply:110/220VAC Tracking Precision: ≤ 1° Stainless Steel IP :65
Sensor
Feedback position in the north-south direction
Slewing Driver
Slewing Driver drives the solar tracker bracket to rotate in the east-west direction IP:65 DC:24V
GPS
Accurately locate the latitude and longitude of the installed location
Wind Speed
It can measure the instantaneous wind direction wind speed data.
Certifications
Best dual axis solar tracker
Our company carry out the IT plan,adopt the ERP enterprise resource planning,the OA office automation and 6S management.Our
company continuously pursues excellence and creates outstanding performance through the perfect continuous training system.
company continuously pursues excellence and creates outstanding performance through the perfect continuous training system.
Packing & Delivery
Dual axis solar tracker solar panels tracking system packing Details :
10 packing/unit. 8 stere/unit. 1950KG/unit. 8 units/40 HQ container .
Dual axis solar tracker solar panels tracking system delivery Details :
Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, it is according to quantity.
Our Company
Shandong Jinhong New Energy Co., Ltd.
Shandong Jinhong Energy is a high-tech enterprise. With 18 years of successful design experience in photovoltaic tracking system, more than 20 patented technologies in the field of photovoltaic tracking, successfully developed China's first dual-axis photovoltaic tracking system in 2005, and launched the world's largest single-unit 20.8KW dual-axis power station in 2008.
Sales Map
In addition to selling well in the domestic market,
our products are also exported to five continents and more than 20 countries. This quantity is increasing year by year. Our products are well received by users at home and abroad.
Customer Photos
FAQ
Q: How long is your delivery time?
A: Generally solar tracker is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, it is according to quantity.
Q: Does any country support T/T,L/C,D/A,D/P,Western Union,Money Gram?
A: Our payments vary according to different countries and regions.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
