Quick Details
-
Weight (KG):
-
300
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TOP Y MACHINERY
-
Dimension(L*W*H):
-
(L)1100mm*(W)2030mm*(H)2200mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Packing speed::
-
15-60bags/min
-
Warranty::
-
24months
-
Bag width::
-
60-200mm
-
Bag Length::
-
80-300mm
-
Driven System::
-
Panasonic servo motors for film pulling
-
Machine Material::
-
SS#304 or Carbon/Mild Steel
-
Roll film Width& Diameter::
-
Max: (W)420mm, (D)320mm
-
Film Material::
-
OPP/CPP,OPP/PE, MST/PET/PE
-
Controller System::
-
PLC
Quick Details
-
Function:
-
FILLING, Laminating, Sealing, Wrapping
-
Packaging Type:
-
Bags, Film, Foil, Pouch, Stand-up Pouch
-
Packaging Material:
-
Paper, Plastic, Wood
-
Weight (KG):
-
300
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TOP Y MACHINERY
-
Dimension(L*W*H):
-
(L)1100mm*(W)2030mm*(H)2200mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Packing speed::
-
15-60bags/min
-
Warranty::
-
24months
-
Bag width::
-
60-200mm
-
Bag Length::
-
80-300mm
-
Driven System::
-
Panasonic servo motors for film pulling
-
Machine Material::
-
SS#304 or Carbon/Mild Steel
-
Roll film Width& Diameter::
-
Max: (W)420mm, (D)320mm
-
Film Material::
-
OPP/CPP,OPP/PE, MST/PET/PE
-
Controller System::
-
PLC

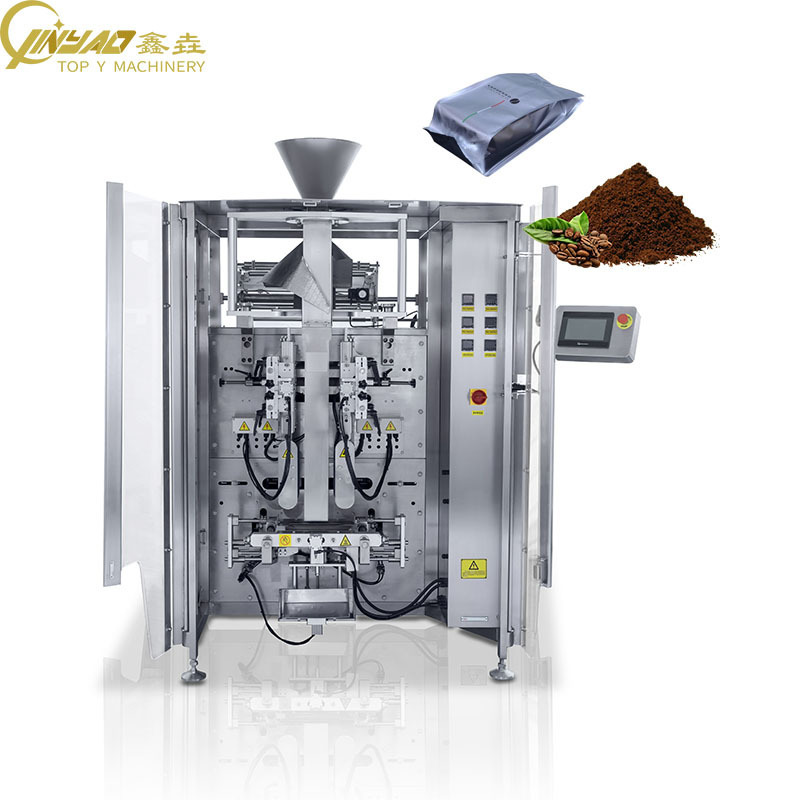

Packaging Machine Manufacturer Support OEM&ODM Service
It is suitable for packing a range of granular, powder and liquid products, and particularly suited to products that require high standards of package: aesthetically perfect, without any wrinkles, the flush seams are highly resistant and all four sides can be printed on.
Features:
* Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use.
* Use famous brand electric and pneumatic components, stable and long life circle.
* Use superior mechanical components, reduce the wear out loss.
* Easy to install film, auto correcting the excursion of the film.
* Apply advanced operating system, easy to use.
To be used on Top Y High quality machine, it makes your packing work easily and efficiently.
Specification of TOPY-VP Series Packaging Machine
|
Model No.
|
TOPY-VP420
|
TOPY-VP520
|
TOPY-VP620
|
TOPY-VP730
|
TOPY-VP800
|
|
Bag Width
|
60-200 mm
|
100-250 mm
|
100-300 mm
|
140-350 mm
|
150-400 mm
|
|
Bag Length
|
70-300mm
|
80-350 mm
|
80-350 mm
|
200-400 mm
|
250*400 mm
|
|
Bag Speed (Single motor)
|
10-70 bags/min
|
15-60 bags/min
|
15-60 bags/min
|
10-50 bags/min
|
5-30 bags/min
|
|
Film width
|
120-420 mm
|
220-520 mm
|
220-620 mm
|
300-720 mm
|
340-800 mm
|
|
Air Consumption
|
0.7 Mps
0.5m3/ min
|
0.8 Mps
0.4m3/ min
|
0.8 Mps
0.4 m3/ min
|
0.8 Mps
0.5 m3/ min
|
0.6 Mps
0.7 m3/ min
|
|
Film thickness
|
0.03-0.1 mm
|
0.04-0.1 mm
|
0.04-0.1 mm
|
0.05-0.12 mm
|
0.06-0.15 mm
|
|
Dimension (mm)
|
1530*970*1600
|
1430*1200*1700
|
1430*1200*1800
|
1340*1580*1950
|
1500*1680*2100
|
|
Weight (KG)
|
450
|
680
|
700
|
800
|
1000
|
|
Power Supply
|
2.2 kw
|
2.5 kw
|
2.5 kw
|
2.5 kw
|
3.0 kw
|
Advantage of TOPY-VP Series Packing Machine
1.PLC controller with touch screen interface.
2.Servo-driven film transport.
3.Pneumatic-driven and sealing jaws.
4.Hot printer and film feeding system synchronous.
5.Quickly changing one-piece bag former.
6.Eye mark sensor for film tracking.
7.Stainless steel frame.
Application and packing solutions for vertical form fill seal packing machine:
Solid Packing Solution
Combination multi-head weigher is specialized for solid filling such as candy, nuts, pasta, dried fruit and vegetable etc.
Granule Packing Solution
Volumetric Cup Filler is specialized for granule filling such as chemical, beans, salt, seasonings etc.
Liquid Packing Solution
Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup etc.
Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup etc.
Powder Packing Solution
Servo Screw Auger Filler is specialized for powder filling such as nutrients powder, seasoning powder, flour, medicinal powder etc.
Servo Screw Auger Filler is specialized for powder filling such as nutrients powder, seasoning powder, flour, medicinal powder etc.
