Quick Details
-
Table Travel (Z) (mm):
-
200
-
Brand Name:
-
WIN WIN
-
Voltage:
-
380
-
Weight (KG):
-
5000 KG
-
Application:
-
Industrial Metal Cutting
-
Type:
-
Waterjet Cutting Machine
-
Control system:
-
CNC Controller
-
Cutting material:
-
Metal.alloy.aluminum.stone.glass.or Soft Materials
-
MOQ:
-
1 Piece
-
After-sales Service Provided:
-
Engineers
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Table Travel (X) (mm):
-
4000
-
Table Travel (Y) (mm):
-
2000
-
Table Travel (Z) (mm):
-
200
-
Brand Name:
-
WIN WIN
-
Voltage:
-
380
-
Weight (KG):
-
5000 KG
-
Application:
-
Industrial Metal Cutting
-
Type:
-
Waterjet Cutting Machine
-
Control system:
-
CNC Controller
-
Cutting material:
-
Metal.alloy.aluminum.stone.glass.or Soft Materials
-
MOQ:
-
1 Piece
-
After-sales Service Provided:
-
Engineers
AC 5 Axis 4020 Waterjet Cutting Machine
WINWIN company supports color customization, this equipment is WW5060jet intensifier pump + 4020 AC 5 cutting table, full stainless steel protective structure, good protection, no rust, oil immersed structure, long service life of ball screw and linear guide, fully aluminum alloy cutting head, light weight, reduce the load of the cutting table, AC 5 axis head, cutting angle can reach ±68°, C axis can be 360° rotation
Product Parameters
|
Series
|
AC-4020Water Jet
|
Type
|
Gantry Cutting Table
|
|
Cutting Angle
|
0-±68 Degrees
|
Control Accurcy
|
±0.01mm
|
|
Table Size
|
3800mmx2200mmx200mm
|
Travel Of Z Axis
|
200mm
|
|
Cutting Precision
|
±0.1mm
|
RE-Positioning Accuracy
|
±0.05mm/m
|
|
Cutting Speed
|
11000mm/min
|
Certificate
|
CE ISO
|
|
Motor
|
30kw / 40HP
|
After-sales Service
|
Field Installation Online Service
|
|
MAX.Cutting Range
|
4000mmx2000mmx200mm
|
Material
|
Stainless steel
|
Product Description
The cutting table adopts an Oil-Immersed structure to reduce the wear of the lead screw and the slider. It has a long service life, a full-protection structure and better sealing. The use of stainless steel materials prevents metal corrosion. It is as new for ten years.

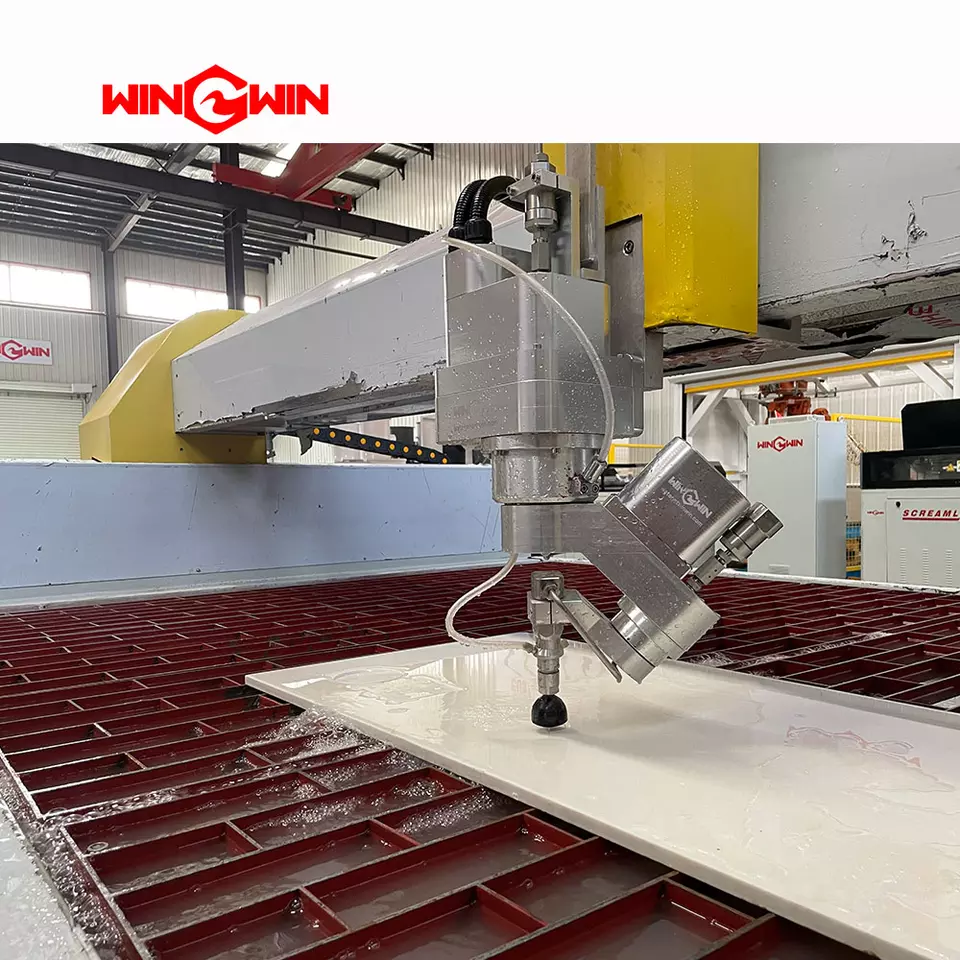

AC 5 axis cutting head
Swing angle ±68°, absolute encoder control system.
AC cutting head is equipped with high quality hardware, swing Angle can reach ±68°, equipped with Weihong system and servo motor, high precision, accurate calculation, with altimetry system, first choice waterjet equipment for cutting large Angle parts
AC cutting head is equipped with high quality hardware, swing Angle can reach ±68°, equipped with Weihong system and servo motor, high precision, accurate calculation, with altimetry system, first choice waterjet equipment for cutting large Angle parts
Choice a suitable intensifier pump
WW5060JET intensifier pump is highly versatile intensifier pump, American imported core components, Sandvik high pressure pipelines,Omron PLC electrical components. This pump is a basic, economic intensifier pump, widely used in the market, large wearing parts seller, simple to use, the pressure can be up to 330Mpa, often used in marble cutting, metal cutting, glass cutting, rubber cutting and other industries.
Weihong CNC Control System
17-inch industrial display, placed in the CNC control shield, good protection, wireless keyboard, mouse and wireless remote control handle, speed can be adjusted under any circumstances, large memory capacity, no delay, smooth operation
Other Components
Abrasive feeding system
Coolling system
Water Soften System
Optional Devices Abrasive Removal System
