Quick Details
-
Product name:
-

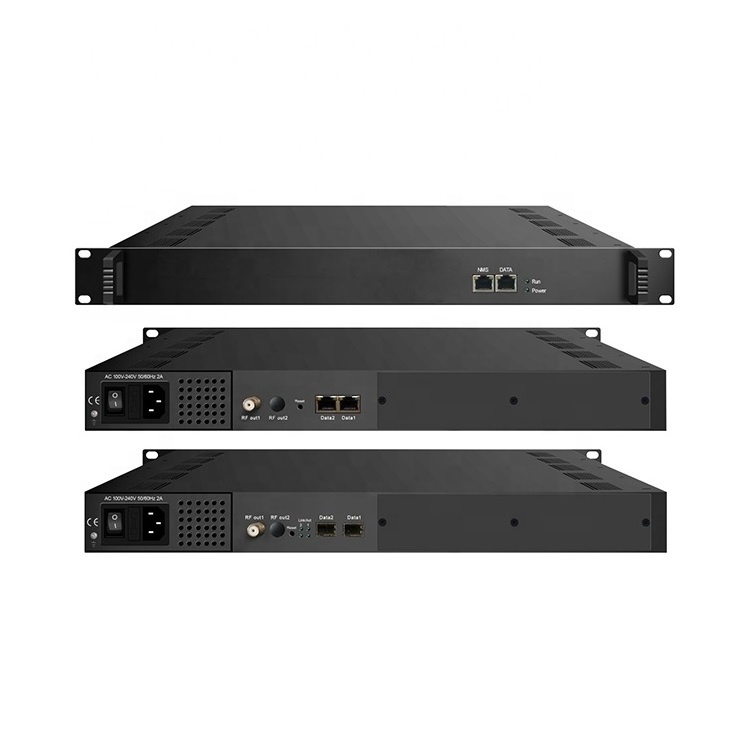

MMDS QPSK Modulator for MMDS Transmitting System
-
Input Interface:
-
ASI
-
output interface:
-
RF F-head
-
Modulation mode:
-
DVB-S/QPSK
-
Impedance:
-
75 ohm
-
Working Frequency:
-
450-950Mhz
-
Symbole Rate:
-
1-45MBaud/s
-
Output Level:
-
85-105dBv
-
Attenation range:
-
-20dBm-0dBm
-
Control:
-
RJ 45 100M
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Ustarlink
-
Model Number:
-
ET-108
-
Product name:
-
MMDS QPSK Modulator for MMDS Transmitting System
-
Input Interface:
-
ASI
-
output interface:
-
RF F-head
-
Modulation mode:
-
DVB-S/QPSK
-
Impedance:
-
75 ohm
-
Working Frequency:
-
450-950Mhz
-
Symbole Rate:
-
1-45MBaud/s
-
Output Level:
-
85-105dBv
-
Attenation range:
-
-20dBm-0dBm
-
Control:
-
RJ 45 100M
Product Overview
QPSK modulator supports ASI input to receive data of DVB transport stream from encoder, multiplexer, DVB gateway, scrambler, video server and other equipments, and then after RS coding, convolution interleaving and QPSK modulation channel processing, it gives RF DVB-S/QPSK signal output. It suits 1U rack and can be configured by front panel LCD and NMS (network management software) . Its high-integrated and cost-effective design makes it widely used in varieties of digital wireless broadcasting distribution systems .
Key Features
Specifications
Technical Details:
|
ASI Input |
1×ASI input, BNC interface |
|
|
RF Output
|
RF Range |
950 ~ 2150 MHz, 10KHz stepping |
|
Output Level |
-10.0 dBm~-41.5 dBm,0.5dBm Stepping |
|
|
MER |
≥26dB |
|
|
Connector |
N type, Impedance 50Ω |
|
|
Outer coding |
RS Coding |
|
|
Inner coding |
Convolution |
|
|
Constellation |
QPSK |
|
|
FEC/Convolution Rate |
1/2,2/3, 3/4, 5/6, 7/8 |
|
|
Roll-off Factor |
0.35 |
|
|
Symbol Rate |
0.05~45Msps |
|
|
System |
Web-based NMS |
|
|
Language: English |
||
|
Ethernet software upgrade |
||
|
Miscellaneous |
Dimension |
482mm×245mm×44mm (W*D*H) |
|
Temperature |
0~45℃(operation), -20~80℃ (storage) |
|
|
Power |
AC 100-240V, 50Hz-60Hz 2A |
|
