Quick Details
-
Output Speed:
-
1000
-
Warranty:
-
1 year
-
Weight (KG):
-
13 KG
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Lunyee
-
Model:
-
ZPT Series
-
Gear Ratio:
-
3-350
-
Emergency stop torque:
-
2 times Rated output torque
-
Average lifetime:
-
20000
-
Levels of protection:
-
IP65
-
Option size:
-
70, 90, 110, 140, 170
-
Efficiency:
-
97%
-
Maximum radial force:
-
950-2700N
-
Maximum axial force:
-
425-1350N
-
Lubricating:
-
Synthetic grease lubrication
Quick Details
-
Gearing Arrangement:
-
Planetary
-
Output Torque:
-
35-170N.m
-
Input Speed:
-
2000
-
Output Speed:
-
1000
-
Warranty:
-
1 year
-
Weight (KG):
-
13 KG
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Lunyee
-
Model:
-
ZPT Series
-
Gear Ratio:
-
3-350
-
Emergency stop torque:
-
2 times Rated output torque
-
Average lifetime:
-
20000
-
Levels of protection:
-
IP65
-
Option size:
-
70, 90, 110, 140, 170
-
Efficiency:
-
97%
-
Maximum radial force:
-
950-2700N
-
Maximum axial force:
-
425-1350N
-
Lubricating:
-
Synthetic grease lubrication
Product Features

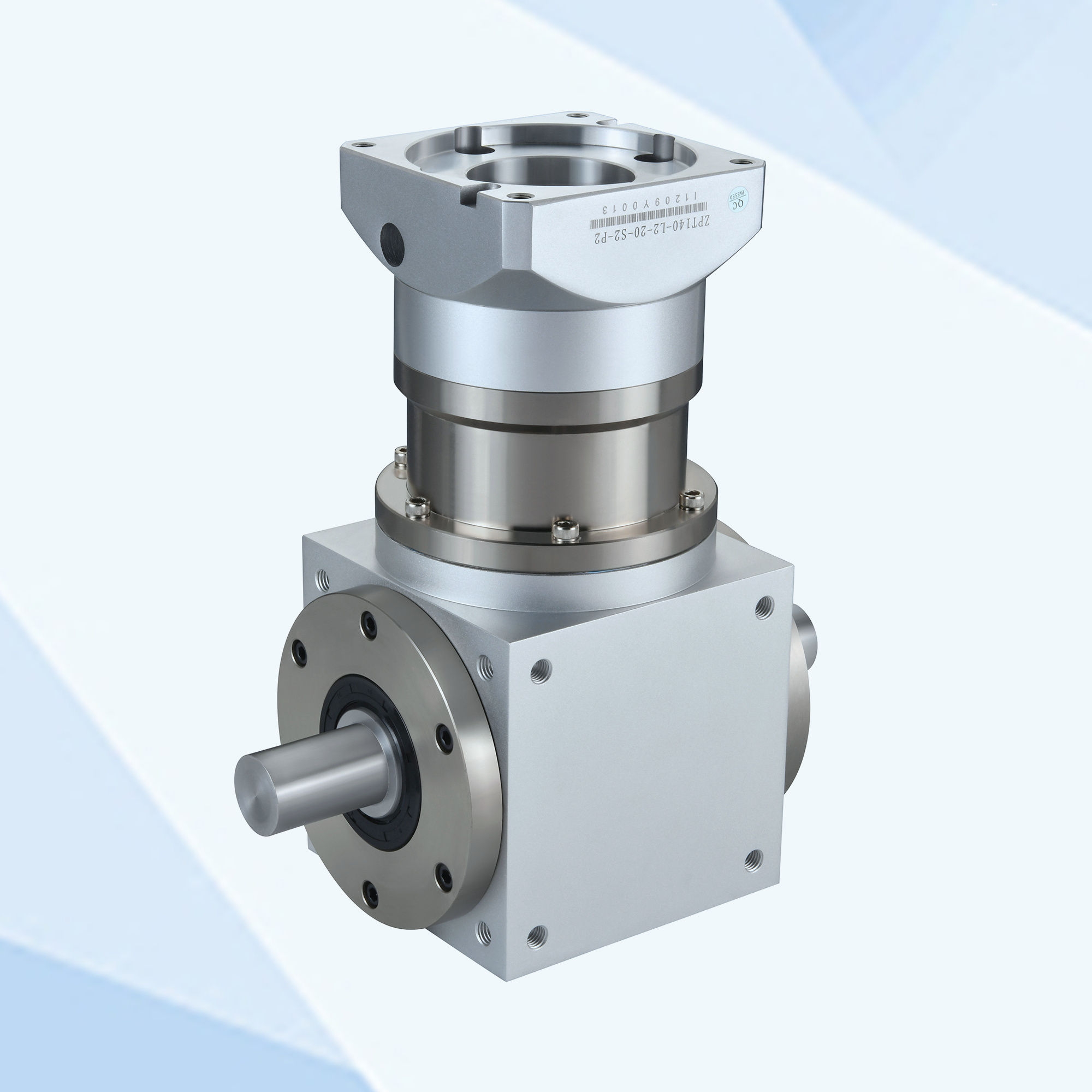

High Precision Planetary Gear Reducer Kit
PLF Series High Precision Planetary Gear Box
|
Model
|
ZPT Series
|
|
4 optional sizes
|
70mm, 90mm, 110mm, 140mm, 170mm
|
|
Rated Torque
|
35N.m-170N.m
|
|
Gear Ratio One-stage
|
3, 4, 5, 7, 10
|
|
Two-stage
|
12, 16, 20, 25, 28, 35, 40, 50, 70
|
Specification
Performance Information:
|
Model
|
Unit
|
ZPT070
|
ZPT090
|
ZPT110
|
ZPT140
|
Ratio
|
Stage
|
||||
|
Rated output torque
|
|
|
45
|
80
|
170
|
1
|
1
|
||||
|
|
|
35
|
|
|
|
2
|
|
||||
|
|
|
|
45
|
80
|
170
|
3
|
|
||||
|
|
|
|
45
|
80
|
170
|
4
|
|
||||
|
|
|
|
45
|
80
|
170
|
5
|
|
||||
|
|
|
|
45
|
80
|
170
|
7
|
|
||||
|
|
|
35
|
|
|
|
8
|
|
||||
|
|
|
35
|
45
|
80
|
170
|
10
|
|
||||
|
|
|
|
45
|
80
|
170
|
12
|
2
|
||||
|
|
|
35
|
|
|
|
14
|
1
|
||||
|
|
|
|
45
|
80
|
170
|
15
|
2
|
||||
|
|
|
|
45
|
80
|
170
|
16
|
|
||||
|
|
|
35
|
45
|
80
|
170
|
20
|
1
|
||||
|
|
|
|
45
|
80
|
170
|
25
|
2
|
||||
|
|
|
|
45
|
80
|
170
|
28
|
|
||||
|
|
|
|
45
|
80
|
170
|
35
|
2
|
||||
|
|
|
35
|
45
|
80
|
170
|
40
|
|
||||
|
|
|
35
|
45
|
80
|
170
|
50
|
|
||||
|
|
|
35
|
|
|
|
56
|
2
|
||||
|
|
|
35
|
45
|
80
|
170
|
70
|
|
||||
|
|
|
|
45
|
80
|
170
|
64
|
3
|
||||
|
|
|
35
|
45
|
80
|
170
|
80
|
|
||||
|
|
|
35
|
45
|
80
|
170
|
100
|
|
||||
|
|
|
|
45
|
80
|
170
|
125
|
|
||||
|
|
|
35
|
45
|
80
|
170
|
140
|
|
||||
|
|
|
|
45
|
80
|
170
|
175
|
|
||||
|
|
|
|
45
|
80
|
170
|
200
|
|
||||
|
|
|
|
45
|
80
|
170
|
250
|
|
||||
|
|
|
|
45
|
80
|
170
|
280
|
|
||||
|
|
|
|
45
|
80
|
170
|
350
|
|
||||
|
Emergency stop torque
|
N·m
|
2 times Rated output torque
|
|
|
|
|
|
||||
|
Norminal input speed
|
rmp
|
3000
|
2500
|
2000
|
2000
|
|
|
||||
|
Maximum input speed
|
rmp
|
4000
|
3500
|
3000
|
3000
|
|
|
||||
|
Maximum radial force
|
N
|
950
|
1450
|
2100
|
2700
|
|
|
||||
|
Maximum axial force
|
N
|
425
|
725
|
1050
|
1350
|
|
|
||||
|
Efficiency
|
%
|
Single [97%]
|
|
|
Double [95%]
|
|
|
||||
|
Average lifetime
|
h
|
20000
|
|
|
|
|
|
||||
Product Details
Using high-strength steel alloy materal. Not just hardening on gear surface,but hardening entire gear to insure the gear life time and maintain high accuracy.
For Rear transition flange screw hole,use rubber plug dust-proof design,effectively prevent dust, foreign body drop on the gearbox.
Use GB40Cr steel, hardness would beHB240-270after heat treatment. So that it's better to maintain the clamping strength and concentric degree.
Higher than conventional planetary gearbox;One stage is exceed 97%,Two stage is exceed 95%.
Dimensions
About other detail dimension, welcome to contact us freely!
Application area
Aerospace,military industries；
Medical heaith care, electronic information technology industry；
Industrial robot, production automation, CNC machine tool manufacturing industry；
Motor, textile, printing, food, metallurgical, environmental protection engineering warehouse and logistics industry.
Packing
Shipment: TNT, DHL, UPS, FedEx, By Sea are available. The other shipping ways are also available. Strict product packaging ensures that the motors is not damaged during transportation.
