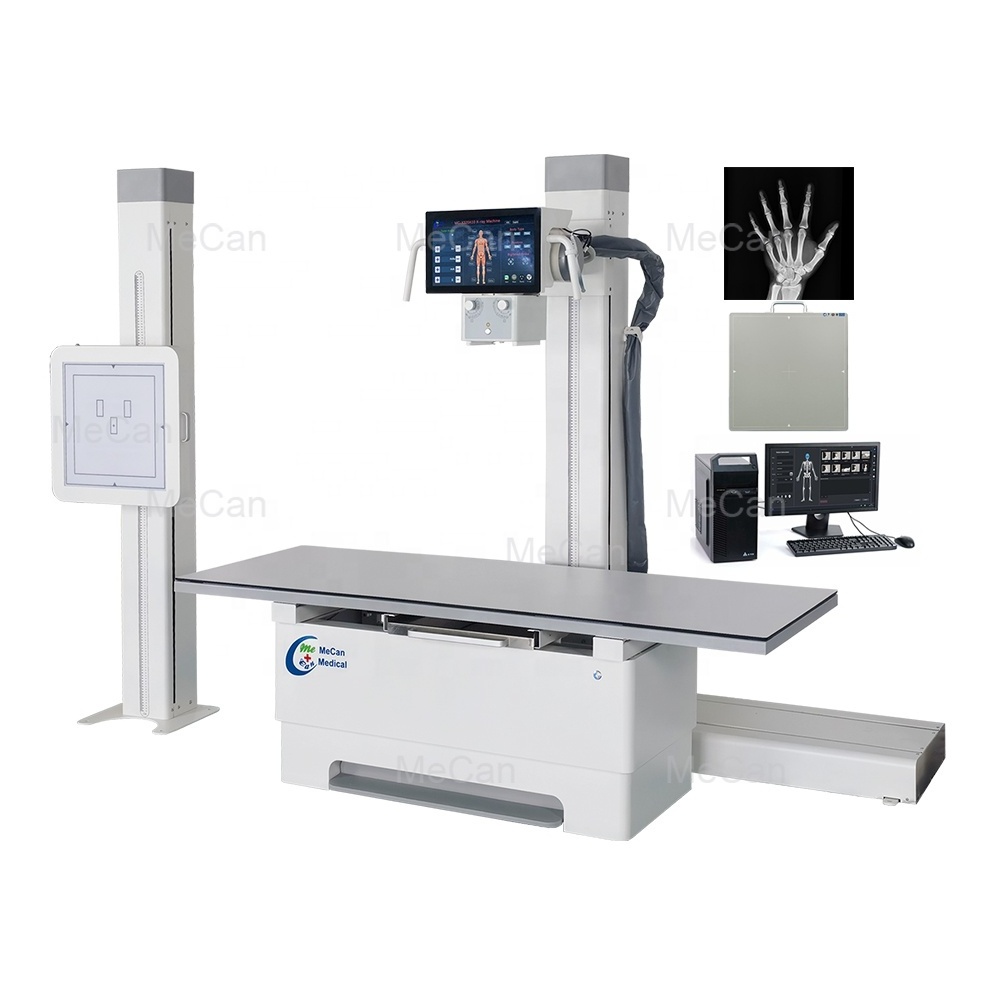

32KW 50KW Profesional 500MA Chest DR X Ray Prices Medical Radiology Diagnostic Digital Xray Equipment RX Digital X-ray Machine

32KW 50KW Profesional 500MA Chest DR X Ray Prices Medical Radiology Diagnostic Digital Xray Equipment RX Digital X-ray Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $1650

≥5 Sets

US $1200

≥10 Sets

US $1030

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: MeCan

Model Number:: MCI0015

Quality Certification:: ISO

Product name:: x ray machine

power:: 32KW

Name:: High Frequency X-ray

Application:: X-ray Room .Radiography Department ~

Function:: Medical Radiography

Type:: X-ray Radiography Machine

Usage:: Medical Radiology

Feature:: Durable

Package:: Wooden Case

Voltage:: 110V/220V

Quick Details

Warranty:: 1 Year

After-sale Service:: Online technical support

Place of Origin:: Guangdong, China

Brand Name:: MeCan

Model Number:: MCI0015

Quality Certification:: ISO

Product name:: x ray machine

power:: 32KW

Name:: High Frequency X-ray

Application:: X-ray Room .Radiography Department ~

Function:: Medical Radiography

Type:: X-ray Radiography Machine

Usage:: Medical Radiology

Feature:: Durable

Package:: Wooden Case

Voltage:: 110V/220V

Chest DR X Ray Medical Radiology Diagnostic Digital Xray Equipment RX Digital X-ray Machine

Product Description

Features:

X-ray generator: power requirement:Single phase 3 wire system 220 V/50HZ (line diameter >6 mm2; internal resistance <0.5Ω) focal spot size:0.6/1.2mm dual focus Speed and heat capacity:2800rpm/150KHU

Table model: 3543A(14*17 inch)/4343A(17*17 inch) Bed surface (width * length):73*200cm,move 40cm left and right, and 20cm back and forth

Details Images

Digital X-Ray Machine for Hospital

Use for body parts:

Preseted parameters for Head, Neck, Thoracic, Chart(Chest), Rib, Lumbar, Elbow, Forearm, Belly, Wrist, Pelvis, Femur, Knee and Foot.

Applications:

Hospital, disaster area, orthopedics, infirmary, private clinics, bailiff system, health monitoring, etc.

Optional Models:

MX-DR320A10: 32KW/400mA

MX-DR500A10: 50KW/630mA

MX-DR650B10: 65KW/800mA

Available with your logo

◆15.4 inch HQ LCD touch screen, real-time display for the tube rotation angle (details in the next picture)

◆Preseted parameters for 14 human body parts

◆KV, mA, S adjustable on the screen

◆OEM/ODM supported

◆ Easy control and simple installation

◆Professional Factory

Installation of our x-ray machine

◆Easy to install

◆Manual brake system for adjusting the chest stand and the tube to any height needed

◆Only 2 mins needed to exam 1 patient

◆Only 3 hours needed for installing the whole machine

◆Ca-non tube for option

Floating xray table with bucky

◆Only 5.5 cm between the table board and the detector for better image

◆Mobile table board in 4 directions controlled by footswitch

◆Separable column and bucky

◆Adjustable SID from 180cm for adults to 1 50cm for children

◆Space-saving design for installation in
rooms of only 3M wide

DR System and Workstation

◆ 14''x17'' or 17''x17'' Digital Flat Panel Detector

◆a-Si Technology

◆ Scintillator: GOS/CSI

◆ Laptop or PC workstation

◆Installed with software for human

◆On-line remote after-sale service available

◆Tube angle: 360° rotable

◆Up & down tube movement available

◆Left & right movement for both the column and the bucky

Multi-function xray machine:

◆Extra long floor rail of 2.1 M long, mobile tube column & table board to get easier examination for lower limbs

Customer Feedback

Packing of our xray machine:

Specification

Product name	High Frequency 32KW X-ray Machine
Power voltage	1-phase 220VAC ±10%，50Hz，16A；3-phase 380VAC± 10%
Maximum Working Frequency	≥30KHz
Nominal Electric Power：	32kw
KV range	40~125KV
mA range	10~400mA
mAs range	0.1~500mAs
Photoformy time	3ms~6300ms
Working voltage	40KV-125KV
Nominal value	Large focus 1.2，Small focus 0.6
