Quick Details
-
Model Number:
-
Cwlca2-2
-
Protection Level:
-
ip65
-
Max. Current:
-
10A
-
Operating Temperature:
-
5~+65C (with no icing)
-
Structure:
-
Extreme Limit Switch
-
Certificate:
-
TUV, ISO9001, CCC, CE
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
cntopsun/ODM
-
Model Number:
-
Cwlca2-2
-
Protection Level:
-
ip65
-
Max. Current:
-
10A
-
Operating Temperature:
-
5~+65C (with no icing)
-
Structure:
-
Extreme Limit Switch
-
Certificate:
-
TUV, ISO9001, CCC, CE
-
Certification:
-
CE

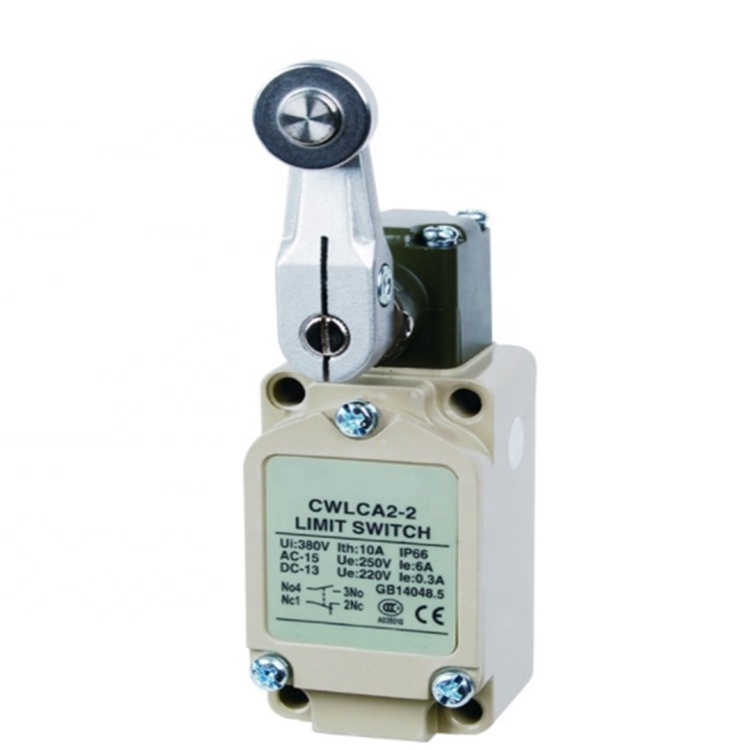

- Double-circle type of limit switch,is widely used
- With strong aluminum cast outer shell
- High mechanical strength
- Structure preventing oil,water and pressure
- Indicating plate with setting position is installed in it,so it is easy to maintain
- Various of actuators is taken convenience for using
- Built-in contact stand has double-spring,so it has long mechanical life
- Selective M20×1.5 cable gland
| Models | CWLCA2-2 | CWLD2 | CWLNJ | CWLNJ-S2 | CWLCA12-2-Q, CWLCA12-2-QD | CWLCL |
| OF(Max.) | 1360g | 2720g | 150g | 29g | 1360g | 142g |
| RF(Min.) | 227g | 910g | - | - | 227g | 28g |
| PT(Max.) | 20° | 1.7mm | 28mm | 28mm | 20° | 20° |
| OT(Min) | 30° | 5.6mm | - | - | 30° | 30° |
| MD(Max.) | 12° | 1mm | - | - | 12° | 12° |
| TF(Max.) | 2720g | - | - | - | 2720g | 200g |
| TT(Min.) | 50° | 6.5±0.8mm | - | - | 50° | 50° |
| Models | CWLCA32-41, CWLCA32-42 | CWLD | CWLNJ-2 | CWLNJ-30 | CWLD1 | CWLD3 |
| OF(Max.) | 1200g | 2720g | 120g | 80g | 2720g | 2720g |
| RF(Min.) | - | 910g | - | - | 910g | 910g |
| PT(Max.) | 55° | 1.7mm | 28mm | 28mm | 1.7mm | 1.7mm |
| OT(Min) | 35° | 6.4mm | - | - | 5.6mm | 5.6mm |
| MD(Max.) | - | 1mm | - | - | 1mm | 1mm |
| TF(Max.) | - | - | - | - | 2720g | 2720g |
| TT(Min.) | OP:90±10° | OP:34±2.8mm | - | - | 6.5±0.8mm | 9±0.8mm |
|
