Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
GENCIRCLE GENERATOR
-
Model Number:
-
P-700
-
Speed:
-
1500rpm or 1800rpm
-
Engine type:
-
Water cooled / water cooling
-
Fuel tank capacity:
-
8 hours continue running
-
Warranty:
-
1 year or 1000 wokring hours
-
Color:
-
White ,Blue ,Yellow ,Red, Grey ,Green Options
-
Type:
-
Open,Silent,Container ,Trailer ,Mobile Type
-
Cylinder:
-
2L ,3L,4L,6L,8L,12V cylinder
-
Alternator:
-
Original Stamford alternator or Copy Stamford or Mecc
-
Options:
-
Water heater , Oil heater , Glow plugs ,ATS ,Parallel system
-
Digital control panel:
-
Smartgen controller , Deepsea controller ,GENCIRCLE controller
-
Package:
-
Plywood package ,Plastic film package
Quick Details
-
Rated Voltage:
-
110/120/220/230/380/400V
-
Rated Current:
-
10--500Amps
-
Frequency:
-
50HZ/60HZ
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
GENCIRCLE GENERATOR
-
Model Number:
-
P-700
-
Speed:
-
1500rpm or 1800rpm
-
Engine type:
-
Water cooled / water cooling
-
Fuel tank capacity:
-
8 hours continue running
-
Warranty:
-
1 year or 1000 wokring hours
-
Color:
-
White ,Blue ,Yellow ,Red, Grey ,Green Options
-
Type:
-
Open,Silent,Container ,Trailer ,Mobile Type
-
Cylinder:
-
2L ,3L,4L,6L,8L,12V cylinder
-
Alternator:
-
Original Stamford alternator or Copy Stamford or Mecc
-
Options:
-
Water heater , Oil heater , Glow plugs ,ATS ,Parallel system
-
Digital control panel:
-
Smartgen controller , Deepsea controller ,GENCIRCLE controller
-
Package:
-
Plywood package ,Plastic film package
Product Description

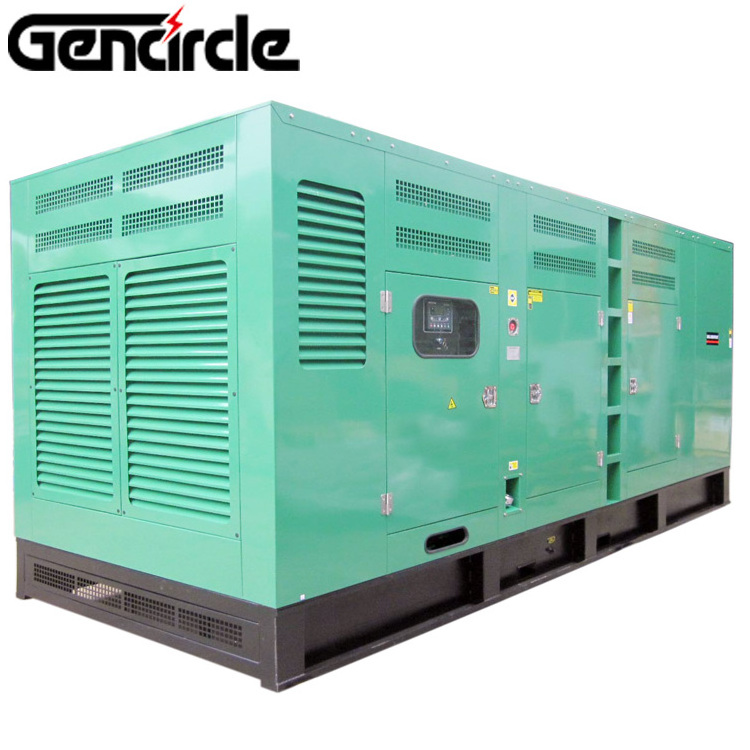

Electric generator silent type 500kw 650kva diesel genset price
Output:5KVA-2500KVA
Reliability quality and performance
Famous diesel engine
Warranty on global
Reliability quality and performance
Famous diesel engine
Warranty on global
Diesel generator set Silent / Soundproof type / Open type / Trailer type
Safety – Stability – Economy - Sufficient power
1. Our cooperate with famous diesel engine –different brand engine model .
2. Equipped with famous Brushless alternator – different brand alternator model .
3. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen .
5. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
6. Equipped with high density sound-absorbing material -- sound insulation, fireproofing
7. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.
8. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.
9. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker
10. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
11. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance
12. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.
13. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.
Safety – Stability – Economy - Sufficient power
1. Our cooperate with famous diesel engine –different brand engine model .
2. Equipped with famous Brushless alternator – different brand alternator model .
3. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen .
5. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
6. Equipped with high density sound-absorbing material -- sound insulation, fireproofing
7. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.
8. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.
9. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker
10. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
11. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance
12. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.
13. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.
More technical datas
Our gensets compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 Standard
Prime output power: 5KVA - 2000 KVA
Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc.
Phase/connecting: 3 phase, 4wire.
Rated frequency: 50Hz@1500rpm, 60Hz@1800rpm
Alternator excited type: Brushless, self excited or PMG
Insulation: Class H
Protection: IP21~IP23
Voltage regulation: AVR automatic control 1%
Altitude above sea level: ≤1000 meters
Ambient air temperature: ≤40°C
Relative air humidity: ≤ 90%
Prime output power: 5KVA - 2000 KVA
Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc.
Phase/connecting: 3 phase, 4wire.
Rated frequency: 50Hz@1500rpm, 60Hz@1800rpm
Alternator excited type: Brushless, self excited or PMG
Insulation: Class H
Protection: IP21~IP23
Voltage regulation: AVR automatic control 1%
Altitude above sea level: ≤1000 meters
Ambient air temperature: ≤40°C
Relative air humidity: ≤ 90%
Why Choose Us
Certifications
Warranty policy
Our product has guarantee for one year or 1000 hours whichever reach first from ex-factory date.
During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material.
After expiration, our provides cost spare parts maintenance of alternator .
