Quick Details
-
Material:
-
stainless steel or carbon steel
-
Suitable materials:
-
grain, liquid, powder
-
Maximum Size:
-
up to 90mm
-
Screen Mesh:
-
5-60mesh
-
Length:
-
1-9m
-
Power:
-
2.2-18.5 kw
-
Capacity:
-
1-30 t/h
Quick Details
-
Type:
-
Circular
-
Place of Origin:
-
Henan, China
-
Product name:
-
Trommel Roller Drum Screen
-
Material:
-
stainless steel or carbon steel
-
Suitable materials:
-
grain, liquid, powder
-
Maximum Size:
-
up to 90mm
-
Screen Mesh:
-
5-60mesh
-
Length:
-
1-9m
-
Power:
-
2.2-18.5 kw
-
Capacity:
-
1-30 t/h

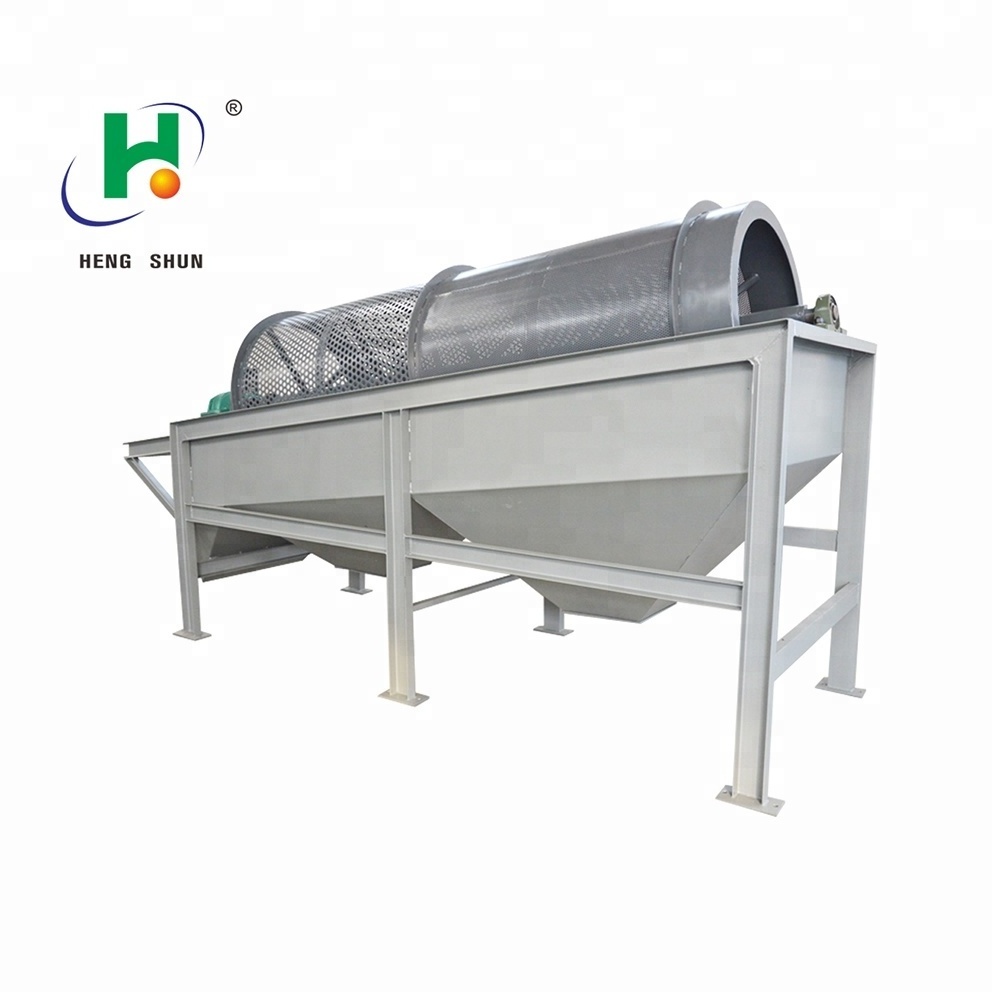

Compost Cylinder Sand Filter Small Round Rotary Trommel Roller Drum Screener Sieve Screen Sifter
Product Description
Drum screen consists of motor, decelerator, rotordrive, chassis, seal cap, inlet and outlet. )Material feeds into the drum, is lifted up by the rotation and aerated as it falls back down.The finer material passes through the screen openings while the larger material tumbles towards its eventual exit at the rear of the drum.
TECHNICAL PARAMETERS
| Model | Length(m) | Screen Sections | Screen Mesh | Maximum Size(mm) | Power(KW) | Speed(rpm) |
| GTS-600 | 2~4 | l~3 | 5~35 | 35 | 2.2~3.0 | 20 |
| GTS-800 | 2~4 | l~3 | 5~40 | 45 | 2.2~5.5 | 18 |
| GTS-1000 | 2~6 | l~4 | 5~45 | 60 | 3.0~7.5 | 16 |
| GTS-1200 | 2~8 | l~4 | 5~50 | 70 | 4.0~11 | 15 |
| GTS-1500 | 2~8 | l~4 | 5~55 | 80 | 4.0~15 | 12 |
| GTS-2000 | 2~9 | l~4 | 5~60 | 90 | 5.5~l8.5 | 8 |
