Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XIANFENG
-
Model Number:
-
swing door operator ZK300DC
-
Type:
-
Automatic Door Operators
-
Power supply:
-
AC 220V/50Hz
-
Motor Voltage:
-
DC 24V
-
Rated force:
-
1000N
-
Opening time:
-
20s
-
Max. Gate Section Weight:
-
300Kg
-
Certificate:
-
CE
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
NONE
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XIANFENG
-
Model Number:
-
swing door operator ZK300DC
-
Type:
-
Automatic Door Operators
-
Power supply:
-
AC 220V/50Hz
-
Motor Voltage:
-
DC 24V
-
Rated force:
-
1000N
-
Opening time:
-
20s
-
Max. Gate Section Weight:
-
300Kg
-
Certificate:
-
CE

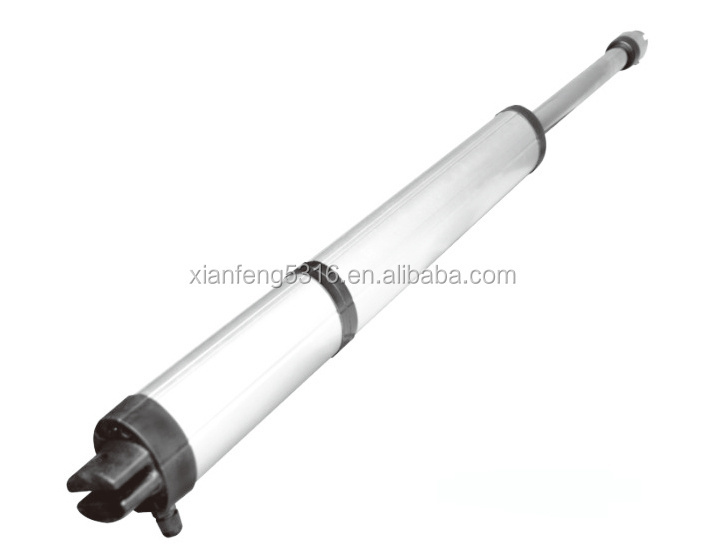

ZK300DC
Main features
-
The gate operator is intended for use with vehicular swing gate.
-
DC24V motor with storage battery keeps working about 10 cycles after power disruption.
-
Die-cast aluminum housing guarantees a long useful life, sturdy and durable.
-
Water-proof design.
-
Emergency release key in case of power failure.
-
An electric lock is provided to stop the door at the proper position.
-
Adjustable mounting bracket.
-
Wiring terminals for infrared photocells and alarm lamp.
-
Connecting with solar panel is available.
-
For your safety, the gate operator will stop if it encounters an obstruction during opening and closing, 0-24 level auto-stop force adjustable.
-
It also can be used as Linear Actuator, max. travel 330mm.
-
Comply with industry standard of the ministry of construction of the people 's republic of china ‘Sliding & Swing gate opener’.
Technical specification
|
Type |
ZK300DC |
|
Power supply |
A C220×(1±10%)V 50H z |
|
Motor voltage |
DC24V |
|
Motor speed |
2800 rpm |
|
Rated force |
1000 N |
|
90 ° opening or closing time (one gate leaf) |
20 s |
|
Working angle of gate |
90° or 105° |
|
Max. gate section weight |
≤300 kg |
|
Max. gate section width |
3 m |
|
Ambient temperature |
-20 ºC ~ +50 ºC |
|
Cycles per hour |
≤15 |
