Quick Details
-
Filling Accuracy:
-
>99%
-
Voltage:
-
220v / 380v
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
CHENGXIANG
-
Dimension(L*W*H):
-
2000*1000*1700MM
-
Weight:
-
800 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
SUS 316L+SUS304 Stainess steel
-
Filling volume adjustable:
-
Siemens touch screen+PLC(optional)
-
High accuracy:
-
316L piston pumps
-
Main motor:
-
ABB brand
-
Advantage:
-
Can be customized according to any shape/size bottle
-
Speed:
-
30-120b/m
-
Optional:
-
can connect labeling machine
-
Bottle:
-
5-120ml
Quick Details
-
Machinery Capacity:
-
4000BPH, 2000BPH
-
Packaging Material:
-
Plastic, Glass
-
Filling Material:
-
Oil, Juice
-
Filling Accuracy:
-
>99%
-
Voltage:
-
220v / 380v
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
CHENGXIANG
-
Dimension(L*W*H):
-
2000*1000*1700MM
-
Weight:
-
800 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
SUS 316L+SUS304 Stainess steel
-
Filling volume adjustable:
-
Siemens touch screen+PLC(optional)
-
High accuracy:
-
316L piston pumps
-
Main motor:
-
ABB brand
-
Advantage:
-
Can be customized according to any shape/size bottle
-
Speed:
-
30-120b/m
-
Optional:
-
can connect labeling machine
-
Bottle:
-
5-120ml
CX-LP Bottle unscramber
---Feeding empty bottles to filling machine automatically
Storage tank
---Can connect the filling machine,made of SUS316L stainless steel
Piston pumps
--- 5min do the cleaning,fit for 200+different liquid.Made of SUS316L stainless steel
Filling nozzles
---Anti-drip filling nozzles,made of SUS316L stainless steel
Cap vibrator + Mechanical arm suck caps
---Vibrator can feed different material cap automaticlly
---Mechanical arm suck different caps on bottle,Accuracy>99.5%,no damage on bottle&cap
Mechanical arm+pre-capping head
Vibrator slide to feed caps

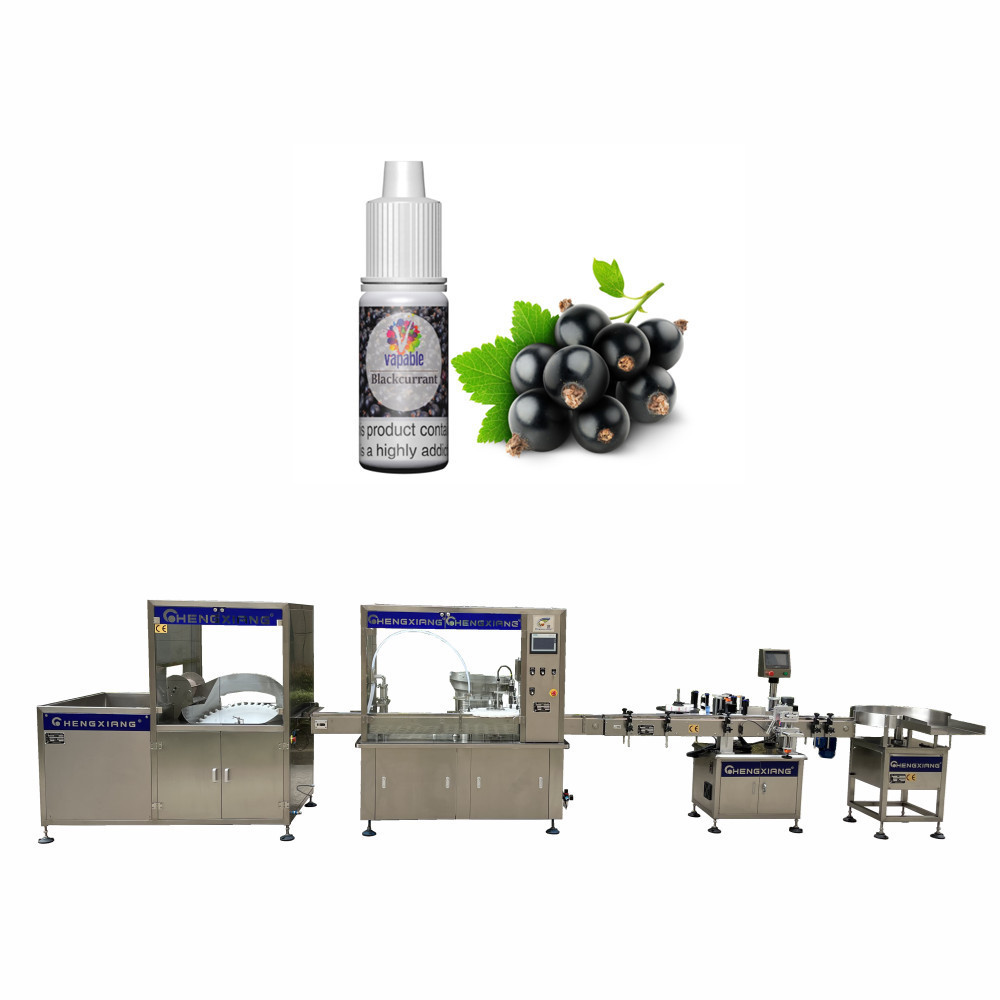

Filling covering capping 3 in 1 machine
Finished samples
CX-DTJ Automatic labeling machine
---Different bottle size,no replacement part.Servo motor controlled
CX-SP Bottle collecting turntable
---SUS316L stainless steel
Packing whole machine in wooden case,no need joint
Characteristic
1.The parts which contact liquid are SUS316L stainless steel and others are SUS304 stainless steel
2.Including feeder turntable,effective cost/space saving(optional)
3.It has intuitive and convenient operation, measuring accurate, positioning precision
4.Fully in accordance with the GMP standard production and passed CE certification
5.Siemens Touch screen/PLC+UK brand peristaltic pump+Servo motor control(optional)
6. No bottle no filling/plugging/capping( optional)
7.HS Code:84223090.90
Main Technical Parameters
|
Applied Bottle |
2-200ml |
|
Productive Capacity |
30-50pcs/min |
|
Filling Tolerance |
0-1% |
|
Qualified Stoppering |
≥99% |
|
Qualified cap putting |
≥99% |
|
Qualified capping |
≥99% |
|
Power Supply |
380V ,50HZ |
|
Power |
1.5KW |
|
Net Weight |
600KG |
|
Dimension |
2500(L)×1000(W)×1700(H)mm |
Famous brand electrical part
|
Machine frame |
SUS304 Stainless steel |
|
|
Main Motor |
ABB |
Switzerland |
|
Inverter |
Mitsubishi |
Japan |
|
Air Switch |
Schneider |
France |
|
Contactor |
Schneider |
France |
|
Relay |
Omron |
Japan |
|
OFA |
Autonics |
Korea |
|
Bearing |
IGUS |
Germany |
|
CAM indexer |
Shangdong |
China |
|
Turntable |
Plastic POM |
Japan |
|
Cylinder |
AIRTAC |
Taiwan |
|
Touch screen(optional) |
Siemens |
Germany |
|
PLC(optional |
Siemens |
Germany |
|
Servo motor |
Delta |
Taiwan |
