Quick Details
-
Model Number:
-
THS-156P-4BB
-
Certificate:
-
CE
-
Item name:
-
polycrystalline solar cell
-
Size:
-
156*156mm / 6*6 ''
-
Efficiency:
-
17.7-18.1%
-
Color:
-
dark blue
-
Chrged power (Wp):
-
4.3-4.4W
-
Imp (A):
-
8.6-8.8A
-
Vmp(V):
-
0.5V
-
Uoc(V):
-
0.59V
-
Isc(A):
-
9.46-9.68A
-
Busbar:
-
4BB
Quick Details
-
Type:
-
PERC
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
NSP
-
Model Number:
-
THS-156P-4BB
-
Certificate:
-
CE
-
Item name:
-
polycrystalline solar cell
-
Size:
-
156*156mm / 6*6 ''
-
Efficiency:
-
17.7-18.1%
-
Color:
-
dark blue
-
Chrged power (Wp):
-
4.3-4.4W
-
Imp (A):
-
8.6-8.8A
-
Vmp(V):
-
0.5V
-
Uoc(V):
-
0.59V
-
Isc(A):
-
9.46-9.68A
-
Busbar:
-
4BB
17.7%-18.1% high efficiency poly PV solar cells 156x156 with tabbing wire
Physical Characteristics
Thickness:200μm±20μm /
180μm±20μm
Dimension:156.75*156.75mm±0.25mm
1.PID-free.
2.Both efficiency and Impp sorting to enhance module output power.
3.100% in-line inspection of optiCal,Irev (<2.0A @-10V, <2.5A @-12V) and Rsh(>10 ohm).
4.Long term efficiency sability and excellent reliability.
5.ISO 9001,ISO14001 and OHSAS 18001 certified.

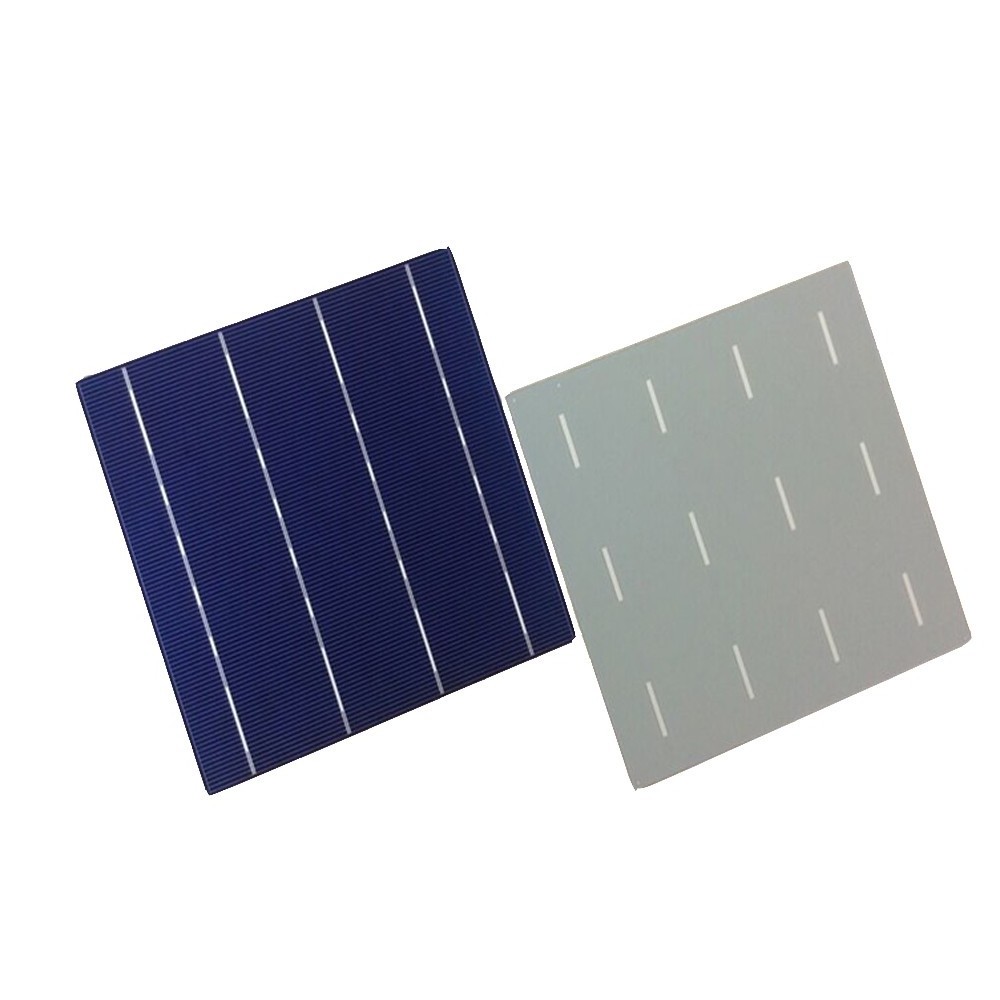

Front(-) Back(+)
blue nitride silicon antireflection coating Aluminum back surface field
1.5mm wide bus bars 2.0mm wide soldering pads
Electrical Characteristics of polycrystalline solar cell
| Efficiency(%) | 18 | 17.8 | 17.6 | 17.4 | 17.2 | 16.8 | 16.6 | 16.4 | 16.2 | 16 | 15.8 | 15.6 |
| Pmpp(W) | 4.33 | 4.29 | 4.24 | 4.19 | 4.14 | 4.09 | 4.04 | 3.99 | 3.94 | 3.9 | 3.86 | 3.82 |
| Umpp(V) | 0.53 | 0.527 | 0.524 | 0.521 | 0.518 | 0.516 | 0.514 | 0.511 | 0.509 | 0.506 | 0.503 | 0.501 |
| Impp(A) | 8.159 | 8.126 | 8.081 | 8.035 | 7.99 | 7.938 | 7.876 | 7.813 | 7.754 | 7.698 | 7.642 | 7.586 |
| Uoc(V) | 0.633 | 0.631 | 0.628 | 0.625 | 0.623 | 0.62 | 0.618 | 0.617 | 0.615 | 0.613 | 0.611 | 0.609 |
| Isc(A) | 8.709 | 8.677 | 8.629 | 8.578 | 8.531 | 8.478 | 8.419 | 8.356 | 8.289 | 8.22 | 8.151 | 8.083 |
High conversion efficiency resulting in superior power output performance.
Outstanding power output even in low light or high temperature conditions.
Optimized design for ease of soldering and lamination.
L ong-term stability, reliability and performance .
Low breakage rate.
Output power tolerance of +/- 3%.
100pcs in one carton, 12 cartons in one box.
Material in stock can be produced (procedure 5-20days) right away after pre-payment confirmation. COSCO Mearsk MSCship to worldwide for safe shipping, don't worry about package damage or loss. It takes about 15-40 days to worldwide, Please note us your contact details include your phone number for easy contacting from shipping company officer.
Quick Response
Any time and anywhere, reply clients' email and solve all problems happen in the work at
the first time.
Remove clients doubts and offer the best solution at the first time.
Give our clients the lastest news of the photovoltaic, update the newest stock
informtion.
Production and Quality Control
Precision cell efficiency sorting procedures
Stringent criteria for color uniformity and appearance
Reverse current and shunt resistance screening
ISO9001,ISO14001 and OHSAS 18001,TUV Certificated
Fastest and cost-optimal Delivery
We always giving our clients the most economical and fastest deliery method.
No matter the Air transportation / Ocean shipping / Internation express, our professional
logistic team will ensure cargo transportation Safe and High efficiency
Payment Terms
T/T, L/C are the payment methods we accept at present.
Feedback
1. Customer satisfaction is completely guaranteed. If for any reason you are unsatisfied
with your order, please contact us first before you leave the feedback.
2. We will do our best to take care of you and if you have any questions please do not
hesitate and feel free to contact us at any time.
