Since from founded ,we have gotten more than 10 patents and sold to over 20 provinces in china as well as exported to more than 30 countries like Russia、Uzbekistan、Thailand、Bangladesh、India、Nigeria、Philippines、Malaysia、Indonesia、Bhutan、Libya、Uruguay、Saudi arabia etc.We have gained trust from all customer because of innovating、stable quality、easily handled、long working life and easily maintained.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Xingyu
-
Voltage:
-
380V/50HZ
-
Power:
-
5.5kw
-
Dimension(L*W*H):
-
2470x950x680mm
-
Weight:
-
1030 kg
-
Features:
-
Easy Operation
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Precast automatic concrete wall panel / fence making machine
-
Product thickness:
-
90mm
-
Product width:
-
600mm
-
No of holes:
-
7
-
Shape of holes:
-
58
-
Electric power:
-
5.5kw
-
Vibrator power:
-
0.8kw
-
Molding speed:
-
1.5-1.8m/min
-
Color:
-
Blue and white
Quick Details
-
Application:
-
Building Materials Machinery
-
Production Capacity:
-
1.5-1.8m/min
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Xingyu
-
Voltage:
-
380V/50HZ
-
Power:
-
5.5kw
-
Dimension(L*W*H):
-
2470x950x680mm
-
Weight:
-
1030 kg
-
Features:
-
Easy Operation
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Precast automatic concrete wall panel / fence making machine
-
Product thickness:
-
90mm
-
Product width:
-
600mm
-
No of holes:
-
7
-
Shape of holes:
-
58
-
Electric power:
-
5.5kw
-
Vibrator power:
-
0.8kw
-
Molding speed:
-
1.5-1.8m/min
-
Color:
-
Blue and white
Product Description

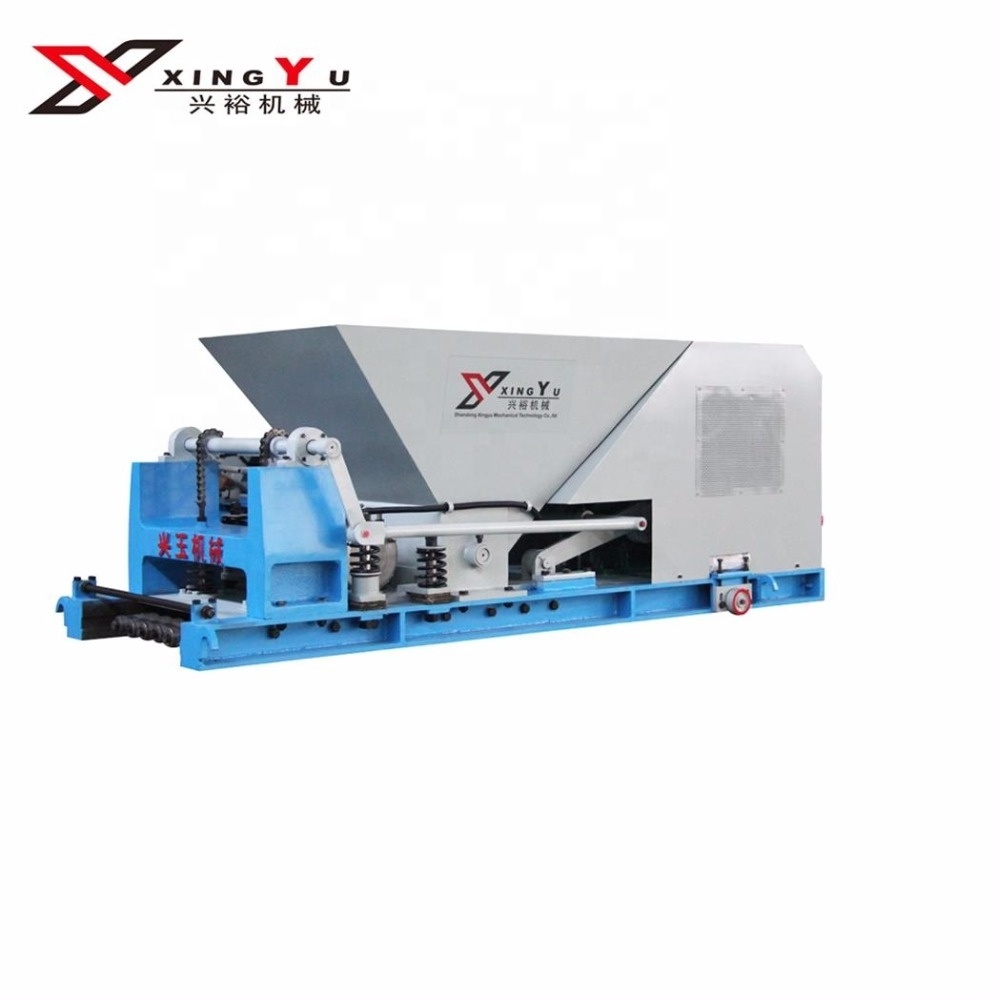

Precast automatic concrete wall panel / fence making machine
Precast automatic concrete wall panel / fence making machine
is our special developed products as results of our engineers research, with which 60%steel material will be saved compared with traditional revolving die method. Efficiency can be improved 3 to 5 times compared with conical die method, these machine are easy for operation and convenient for maintenance, products from these machines are in good quality, smooth appearance and accurate in size
Parameter for Precast automatic concrete wall panel / fence making machine
|
Model
|
Product thickness(mm)
|
Product width(mm)
|
Shape of hole
|
No.of holes
|
Electric motor power (kw)
|
Vibrator motor power(kw)
|
Total power(kw)
|
Molding speed(m/min)
|
|
ZB50-300
|
50
|
300
|
20
|
6
|
1.1
|
0.25
|
1.35
|
1.5-1.8
|
|
ZB90-600
|
90
|
600
|
58
|
5.5
|
5.5
|
0.8
|
6.3
|
1.5-1.8
|
Producing flow:
Detailed Images
Packing & Delivery
|
Name
|
Precast automatic concrete wall panel / fence making machine
|
|
Packing
|
Precast automatic concrete wall panel / fence making machine
|
|
Delivery date
|
Within 20 days
|
|
Term of payment
|
L/C T/T
|
|
Port
|
Qingdao
|
Our Company
Shandong Xingyu Mechanical Technology Co.,Ltd, was located in Zibo,Shandong Province and founded in 1996,specialized in Precast concrete machine,manufacture with a name brand of "Xingyu".We were authorized ISO9001:2000 quality system certificate and also nominated as 'Hi-New Technology Enterprise' by Shandong Science and Technology Administration in 2006.We also founded "Zibo Precast Concrete Machinery Research Institute"with Shandong Science and Technology University in 2007,and have successfully developed the non-circular hole slab forming machine and the Prestressed concrete slab extrusion machine.Now we can manufacture all kinds of slabs which allowed by our country,and so can completely satisfy on large national and civil architecture project.
Our main products:large span GLY concrete hollow core slab machine、light-weight wall panel machine、purline machine、lintel machine、column machine、hollow core slab cutting machine、concrete feeding dumper、high-strength steel wire tensioning machine,which amount to more than ten types and more than four hundred standards.We can design and manufacture various kinds of concrete forming equipments according to the customer demands.Meanwhile we can provide the whole plan and technology supporting for concrete precast component..
Our main products:large span GLY concrete hollow core slab machine、light-weight wall panel machine、purline machine、lintel machine、column machine、hollow core slab cutting machine、concrete feeding dumper、high-strength steel wire tensioning machine,which amount to more than ten types and more than four hundred standards.We can design and manufacture various kinds of concrete forming equipments according to the customer demands.Meanwhile we can provide the whole plan and technology supporting for concrete precast component..
Exhibition
Our Service
FAQ
1. When did your company established?
XingYu machine is established in the year 1996.
2. Where is your company situated?
XingYu machine is located in ZiBo city, ShanDong province, China.
You can arrive at Jinan airport by air, we will pick you up at Jinan airport.
3. What is your payment term?
You can transfer the payment via T/T. We will provide you the bank detail. Generally, 30% as deposit and the rest 70% should be paid before delivery.
