Quick Details
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DELI
-
Model Number:
-
DLTSL210
-
Certificate:
-
EN131
-
Max load:
-
150kg (330lbs)
-
Step:
-
10 steps
-
Thickness:
-
1.3-1.5mm
-
Step distance:
-
30cm
-
Color:
-
Silver
-
Packing:
-
1PC/Carton
-
Net Weight:
-
58kg
-
Height:
-
3m
-
Packing size:
-
90X80.5X45
Quick Details
-
Warranty:
-
3 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DELI
-
Model Number:
-
DLTSL210
-
Certificate:
-
EN131
-
Max load:
-
150kg (330lbs)
-
Step:
-
10 steps
-
Thickness:
-
1.3-1.5mm
-
Step distance:
-
30cm
-
Color:
-
Silver
-
Packing:
-
1PC/Carton
-
Net Weight:
-
58kg
-
Height:
-
3m
-
Packing size:
-
90X80.5X45
Product Description
Platform for use by one person. Raising and lowering of platform is quick and require little effort from the user.
The information and instructions included in this manual are provided to help you get the best possible service from your
Telescopic Scaffold.
To ensure that the tower is used safely and responsibly, we strongly recommend that these instructions are read by all users prior
to erecting and using the scaffold, and that the recommendations are followed at all the times.
Telescopic Scaffold operate a policy of constant improvement and reserve the right to change specifications without notice
FEATURES

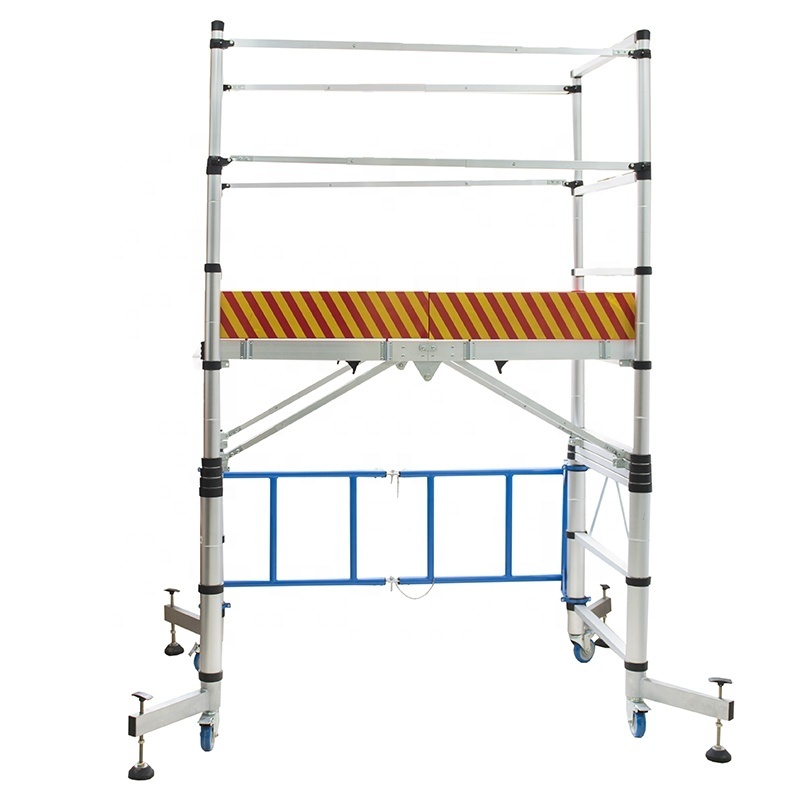

Telescopic scaffold ladde r
1. Telescopic mechanism allows 5 adjustable platform heights from 1.00m to 2.00m(working heights from 3.00 to 4.00m)
2. Can be transported in a small van or estate car.
3. Comprise only two parts-Tower and platform(no more leaving parts in the yard)
4. Large Folding Aluminum work platform(1.40mx0.60m)with climb through hatch.
5. Integral telescopic hand and knee rails.
6. Integral platform stabilisers.
7. Integral stabilising legs with 5 optional positions.
8. Lockable castors-single person operation.
9. Minimal product footprint for ease of transportation and storage.
10. Includes tower 32kg.platform 10kg,wheel set 8kg.
Specification
|
Item No
|
No.of step
|
Plate to ground (cm)
|
Folding size (cm)
|
Open size(cm)
|
N.W(kgs)
|
Packing size(cm)
|
20GP
|
40HQ
|
|
DLTSL210
|
2X10
|
200
|
88X78X43
|
300X145X91
|
56
|
90X80.5X45
|
84
|
209
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
