Quick Details
-
Voltage:
-
12V 24V
-
Current:
-
20A
-
Warranty:
-
18 months
-
Rated current:
-
20A
-
Weight:
-
0.5KG
-
Type:
-
12v 24v 48v 9v-60v 10a Pwm Dc Motor
-
Brand:
-
taxnele
-
Model:
-
Variable Speed Control Switch
Quick Details
-
Contact Load:
-
High Power
-
Place of Origin:
-
China
-
Application:
-
widely
-
Voltage:
-
12V 24V
-
Current:
-
20A
-
Warranty:
-
18 months
-
Rated current:
-
20A
-
Weight:
-
0.5KG
-
Type:
-
12v 24v 48v 9v-60v 10a Pwm Dc Motor
-
Brand:
-
taxnele
-
Model:
-
Variable Speed Control Switch
1.) parameter
| NAME | Variable Speed Control Switch |
DC Motor Speed Controller
Input supply voltage: DC 9 V~-60V
Max current: 20 A
Sustained current: 18 A
PWM frequency: 25 KHz
Adjustable speed range: 0%-100%
Speed adjustment way: Potentiometer
Output voltage: Linear under load
Speed control type: Basins
Size(L*W*H):90 x 50 x 35 mm
Cable Length: 130 mm
Features:
1.Suitable for the DC motor (or DC load) within 20A.
2.It with metal shell and connective label,very easy to install and use.
3.Potentiometer with adjust speed swtich function,and button swtich function.
Operating instruction:
Before you attempting to wire the controller, make sure power is off.
WARNING:
DO NOT REVERSE POSTIVE AND NEGATIVE POWER LOADS.THIS WILL DAMAGE THE CONTROLLER.
TO CHANGE MOTOR DIRECTION, INTERCHANGE THE POSITIVE AND NEGATIVE WIRES OF MOTOR.
1.Connect wires refer to the "wiring diagram"
2.Turn on the power.
3.Adjust the potentiometer.
Connection mode:
Red Line: Power + Black Line: Power -
Blue Line: Motor+ Green Line: Motor -

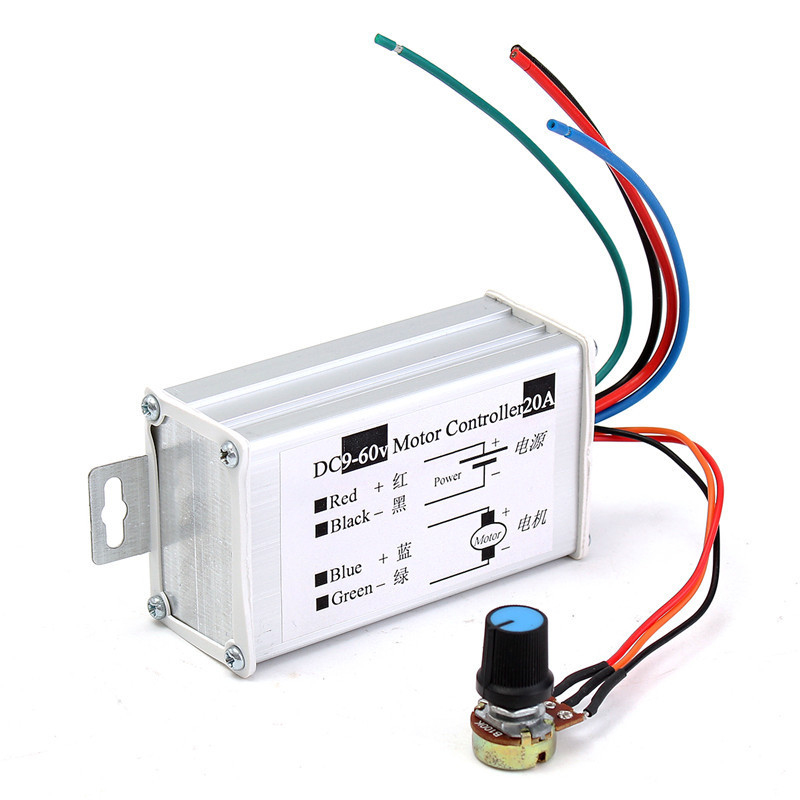

2.Product display
