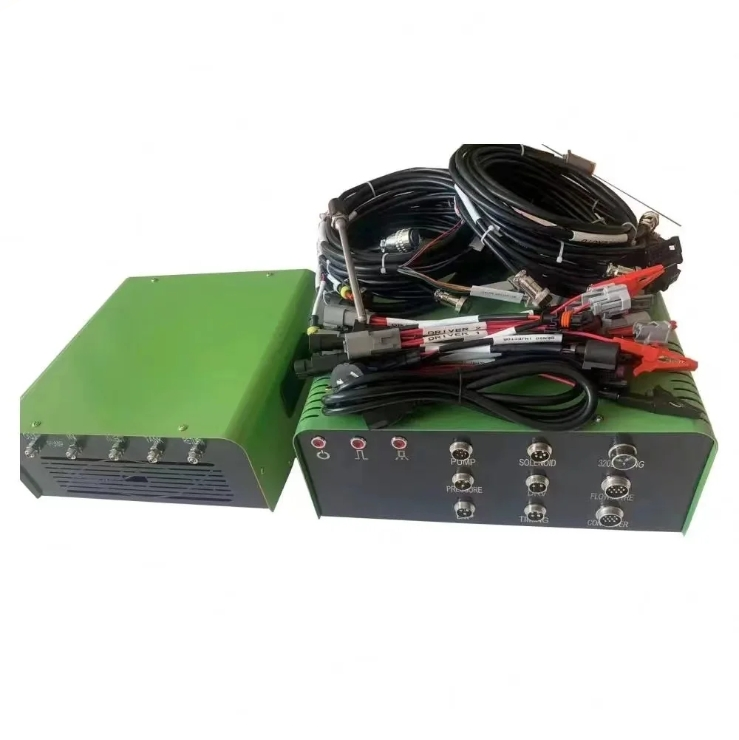

INTRODUCTION :

Function Introduction
(1) Test Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins, solenoid or piezo common rail injector and pump(Included the pump with 2 ZME metering units).
(2) Injector coding can be generated, including Bosch IQA / IMA / ISA, Denso 16/22/24/26/28/30/32QR, Delphi I2C / I3C, Siemens IIC and Cummins XPI(optional);
(3) Can test Bosch, Caterpillar, Cummins, Delphi EUI and EUP, including
Delphi E3 double solenoid EUI and Cummins M11 double pulsing EUI
(optional);
(4) Test HEUI injector and HEU pump (optional);
(5) Test Caterpillar 320D pump (optional);
(6) Test VP37,VP44,RED4,Denso V3/V4/V5 pump (optional);
(7) Test Cummins HPI injector,PT pump (optiona);
(8) Test Injector response time,EUI/EUP BIP;
(9) Test injector resistance and indctance.
(10) Test the armature lift of the injector solenoid valve (AHE).
(11) The test plan is consistent with the original data, and the test accuracy reaches the original factory standard;
(12) The database is fully open, the part number can be increased.
(13) Automatic network upgrade, test data and functions are kept up to date;

Characteristic:

It can be connected to the mechanical pump test bench and the measuring cup to measure the oil volume

2 Optional fuel measuring box for automatic test

A.Connect the tester to detect the fuel quantity,which can be tested automatically.
B. It can be used to generate injector coding.
C .Optional increase of pump flow detection function.

3.response time BIP

The time when the injector valve start to work until the injector start to inject;

Check the performance of the injector valve

4. Injector coding

Bosch IQA / IMA / IS
Denso 16/22/24/26/28/30/32QR
Delphi I2C / I3C
Siemens IIC
Cummins XPI
