Quick Details
-
Application:
-
Hospital
-
Design Style:
-
EUROPEAN
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MUMU DESIGN
-
Model Number:
-
JSGYB
-
Product name:
-
Soundproof Polyester Acoustic Panels
-
Name:
-
3D Acoustic Wall Panels
-
Type:
-
Polyester Fiber Pet Acoustic Panels
-
Feature:
-
Highly Effective Sound Absorption
-
Sound insulation effect:
-
30-50db
-
Function:
-
Noise Absorption
-
Acoustic Panel Type:
-
Acoustic Felt Polyester Acoustic Panels
-
Material:
-
MDF+Polyester Fiber
-
Usage:
-
Building Materials
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
3D model design
-
Application:
-
Hospital
-
Design Style:
-
EUROPEAN
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MUMU DESIGN
-
Model Number:
-
JSGYB
-
Product name:
-
Soundproof Polyester Acoustic Panels
-
Name:
-
3D Acoustic Wall Panels
-
Type:
-
Polyester Fiber Pet Acoustic Panels
-
Feature:
-
Highly Effective Sound Absorption
-
Sound insulation effect:
-
30-50db
-
Function:
-
Noise Absorption
-
Acoustic Panel Type:
-
Acoustic Felt Polyester Acoustic Panels
-
Material:
-
MDF+Polyester Fiber
-
Usage:
-
Building Materials
Products Description

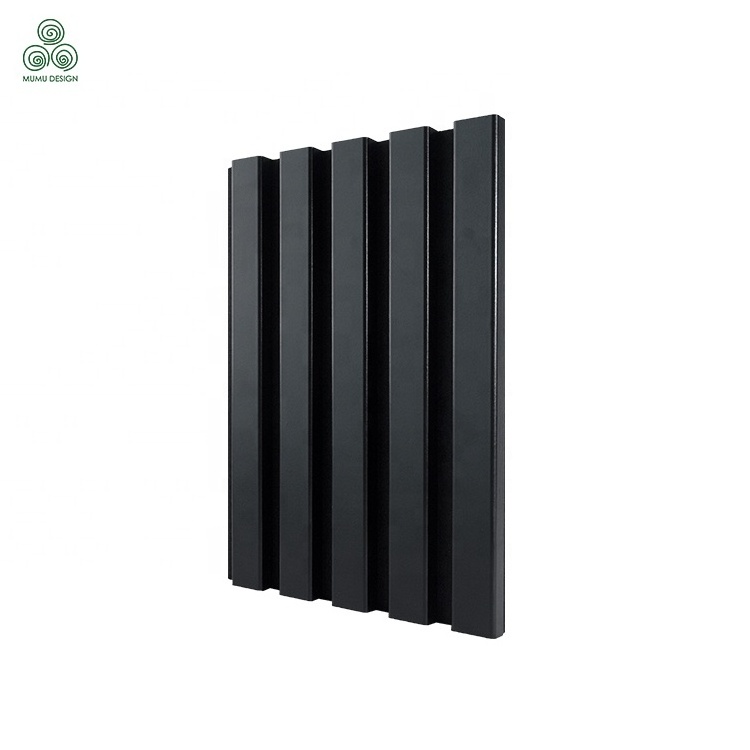

MUMU 2023design black 3d slat wood wall panels for inter easy installation acoustic panel
|
Surface Finishing
|
Veneer
|
|
Color
|
Customized
|
|
Formaldehyde
|
0
|
|
Sheet Size
|
600*21.5*2400mm
|
|
Composition
|
100% Polyester + MDF +Wood veneer
|
|
MOQ
|
20GP: 580pcs
40HQ: 1580pcs
|
Each panel measures 2400mmx 600mm and is formed from 12mm deepand 26mm wide lamellas. with a distance of 14mm in between each. These slats are then mounted on a base of 9mm thick acoustic felt. The panel is 21.5mm thick in total, including the slatsand the felt.
Details Images
Installation Instructions
How to install Slat panel.
There are 3 different options for installing Slat panel:
1. Gluing straight onto the wall:
A construction glue or grab adhesive is recommend for this.
2. Screwing directly into the wall:
By using Black Screws for the Black backing option or Silver or Grey screws for the Grey backed option the panels can be screwed directly into the wall through the acoustic felt.
We recommend a minimum for 8 screws per panel at 3.15" intervals across the width and 24H intervals down the length of the panel.
If installing into ceilings then make sure they are screwed into ceiling joists.
Please make sure the correct fixings are used if going into plasterboard for example.
3. Screwing the panels into 45mm timber battens
To achieve optimum sound absorption we recommend screwing 45mm timber batons to the wall and then screwing the panels directly into the batons through the acoustic felt.
When combined with Rockwool behind the panels in between the batons this will achieve Class A sound absorption.
Dimensions.
TH-STAR Acoustic Slat panel consists of a 9mm black PET Polyester Nonwoven fabric on which are mounted 26mm strips in colored black MDF veneered with real wood veneer. The strips are spaced 14mm apart.
Info:
Each box contains two panels both measuring 2400 x 600mm. These panels will join next to each seamlessly.
Properties of real wood veneer:
Real wood veneer can vary in color, grain structure and appearance from strip to strip and panel to panel.
How to cut the TH-STAR Acoustic Slat panel.
For width ways we recommend a sharp saw to cut through the slats and felt.
To cut length ways a craft knife can be used to cut through the felt.
Fire Rating.
This product is fire rated EU Class B-S1-d0
