Quick Details
-
Type:
-
Auto-focus Voice Coil Motor
-
Brand Name:
-
AICO
-
Panel Size:
-
8.0x18.0x10.0mm (without terminal)
-
Brand:
-
Auto-focus Voice Coil Motor
-
Interface:
-
M12
-
Operating Temperature:
-
-30℃~70℃ 10%~90%RH
-
Current - Supply:
-
0mA~180mA
-
Lens Diameter:
-
M12*p0.5mm
-
VCM Dimensions:
-
18.0x18.0x10.0mm (without terminal)
-
Absolute Max Current:
-
0mA - 180mA
-
Rate Current (Stroke=0.35mm):
-
100mA
-
Rate Current (Stroke=0.60mm):
-
150mA
-
Working Direction:
-
Along the Optical Axis
-
Insulation Resistance:
-
1MΩ or over at DC 50V, between the housing and contact
-
Lens Unit Mass:
-
≤8g
-
VCM Unit Weight:
-
≤5g (nominal without Lens)
-
Rated Stroke:
-
≥350μm
Quick Details
-
Application:
-
M12 lens
-
D/C:
-
ACVCM181210
-
Place of Origin:
-
Zhejiang, China
-
Type:
-
Auto-focus Voice Coil Motor
-
Brand Name:
-
AICO
-
Panel Size:
-
8.0x18.0x10.0mm (without terminal)
-
Brand:
-
Auto-focus Voice Coil Motor
-
Interface:
-
M12
-
Operating Temperature:
-
-30℃~70℃ 10%~90%RH
-
Current - Supply:
-
0mA~180mA
-
Lens Diameter:
-
M12*p0.5mm
-
VCM Dimensions:
-
18.0x18.0x10.0mm (without terminal)
-
Absolute Max Current:
-
0mA - 180mA
-
Rate Current (Stroke=0.35mm):
-
100mA
-
Rate Current (Stroke=0.60mm):
-
150mA
-
Working Direction:
-
Along the Optical Axis
-
Insulation Resistance:
-
1MΩ or over at DC 50V, between the housing and contact
-
Lens Unit Mass:
-
≤8g
-
VCM Unit Weight:
-
≤5g (nominal without Lens)
-
Rated Stroke:
-
≥350μm

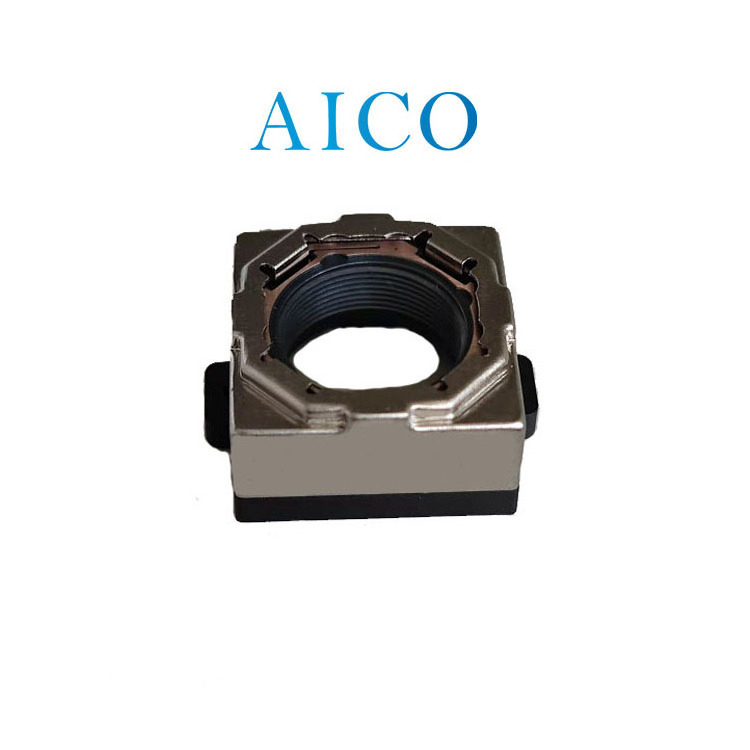

M12 VCM M12*p0.5 s mount lens voice coil holder actuator motor for auto focus driver m12xp0.5 m12x0.5mm camera lenses autofocus
|
VCM Dimensions: |
18.0x18.0x10.0mm (without terminal) |
|
Lens Diameter: |
M12*p0.5mm |
|
Rate Current (Stroke=0.35mm) Optical Axis: +Z |
100mA |
|
Rate Current (Stroke=0.60mm) Optical Axis: +Z |
150mA |
|
Absolute Max Current: |
0mA - 180mA |
|
Insulation Resistance: |
1MΩ or over at DC 50V, between the housing and contact |
|
Working Direction: |
Along the Optical Axis |
|
VCM Unit Weight: |
≤ 5g (nominal without Lens) |
|
Lens Unit Mass: |
≤ 8g |
|
Rated Stroke: |
≥ 350 μ m |
|
Terminal Resistance: |
28 ± 3 Ω |
|
Sensitivity: |
3~9 μ m/mA |
|
Hysteresis: |
± 10 μ m |
|
Dynamic Tilt: |
≤ 21 ′ |
|
Linearity: |
≤ 10µm |
|
Starting Current: |
35 ~ 55mA |
|
Torque: |
20-150 gf.cm |
|
Operating Environment: |
-30 ℃~ 70 ℃ 10% ~ 90%RH |
|
Storage Environment: |
-40 ~ 85 ℃ 10 ~ 90% Relative humidity |
|
Model: |
ACVCM181210 |
These specifications specify general requirement and performance of auto-focus Voice Coil Motor. These specifications may be changed for improvement after agreement between both parties.
All parts including glue and solder of this product fit into RoHS regulations.
