Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
2000 mm
-
Travel (Y Axis)(mm):
-
4000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Forsun
-
Voltage:
-
AC380V/50HZ, 3PH
-
Dimension(L*W*H):
-
3170*1920*1850mm
-
Power (kW):
-
12
-
Weight (KG):
-
2000
-
Weight:
-
1800KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Item:
-
cnc cutting router machine
-
Color:
-
white(any color u want)
-
Working area:
-
2000*4000*200mm
-
Spindle power:
-
9.0KW ATC air cooling spindle
-
Inverter:
-
11KW Delta Inverter
-
Drive and Motor:
-
Delta servo motors and drivers
-
Transmission:
-
XY-axis:rack and gear Z-axis:ball screw
-
controller:
-
DHTN PC Controller
Quick Details
-
Working Table Size(mm):
-
2000×4000
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
2000 mm
-
Travel (Y Axis)(mm):
-
4000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Forsun
-
Voltage:
-
AC380V/50HZ, 3PH
-
Dimension(L*W*H):
-
3170*1920*1850mm
-
Power (kW):
-
12
-
Weight (KG):
-
2000
-
Weight:
-
1800KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Item:
-
cnc cutting router machine
-
Color:
-
white(any color u want)
-
Working area:
-
2000*4000*200mm
-
Spindle power:
-
9.0KW ATC air cooling spindle
-
Inverter:
-
11KW Delta Inverter
-
Drive and Motor:
-
Delta servo motors and drivers
-
Transmission:
-
XY-axis:rack and gear Z-axis:ball screw
-
controller:
-
DHTN PC Controller

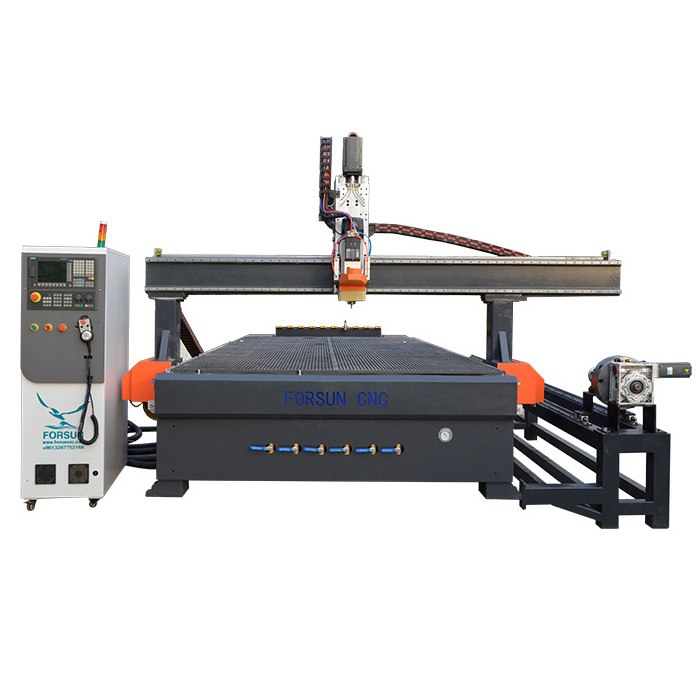

23% Discount 1325 4*8 foot ATC cnc router machine woodworking engrave machine
What is the feature of ATC CNC Router?
Ø Effective working area: 2000*4000mm*200mm
Ø 9kw ATC air cooling spindle
Ø 11kw Taiwan Delta inverter
Ø DHTN PC controller system
Ø1500W servo motor and driver
Ø Line ATC with 10 positions
Ø Vacuum & T-slot working table
Ø Press wheels to help locate material board
What is the technical Data of CNC Woodworking Machine?
| Technical Data | ||
|
NO |
Description |
Parameter |
|
1 |
Positioning Accuracy |
±0.03/300mm |
|
2 |
Max. Rapid Travel Rate |
70000mm/min |
|
3 |
Max. Working Speed |
35000mm/min |
|
4 |
Spindle Speed |
0-24000RPM |
|
5 |
Command Language |
G Code |
|
6 |
Flash Memory |
512M |
|
7 |
Collet |
ER32 |
|
8 |
X,Y Resolution |
<0.03mm |
|
9 |
Running Environment Temperature |
0 - 45 Centigrade |
|
10 |
Relative Humidity |
30% - 75% |
|
11 |
Packing Size |
4900*2280*2100mm |
|
12 |
N.W. |
2000KG |
|
13 |
G.W. |
2200KG |
Many Thanks for Below Customers’ Choice:
What is the advantages of our cnc wood router?
|
Spindle |
ATC Air Cooling Spindle
|
|
Inverter |
Taiwan Delta Inverter It can output 150% of rated torque at zero speed, and it can have “point to point” and relative distance control functions for position control. |
|
Motor |
1500W servo motor and driver high working efficiency and stable running promised |
|
Control system |
DHTN PC Controller
|
|
Working table |
T-slot and Vacuum Table
|
|
Tool magazine |
Line ATC with 10 positions Easy to operate and maintence |
What is the benifit of our cnc wood router?
1. Furniture industries : cabinet doors, wooden doors, solid woods, plates, antique furniture, doors, windows, desks and chairs.
2. Decoration industries : screens, wave boards, large-size wall hangings, advertising boards and sign making.
3. Arts & Crafts industries
: Engrave on artificial stones, woods, bamboos, marbles, organic boards, double-color boards and so on for achieveing effects of exquisite patterns and characters.
4. Processing material
: engraving, milling and cutting processing for acrylic, PVC, density boards,
artificial stones, organic glass, plastics and soft metal sheets such as copper and aluminum
What is the package of ATC Cnc Router?
What is the services of our cnc router machine?
Guarantee:
1.5 years warranty for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1. Technical support by phone, email or WhatsApp/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/WhatsApp/tel etc
Customer visit of our cnc router:
FAQ of our CNC Cutter:
1) This is the first time I use this kind of machine, is it easy operate?
There are guide video that show how to use machine and english instruction book send to you with machine.
If there is still have any question, we will provide free professinal guide for you until you could use machine well.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
