- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ITC
-
Model Number:
-
TV-620HC
-
Warranty:
-
3 years
-
HD:
-
1080P/60
-
Low latency:
-
Less than 200ms
-
Low bandwidth:
-
Ultra-low bandwidth, 1M for 1080P HD Conference
-
limited capacity:
-
one machine 16 users, can be seamlessly upgraded to 120 user
-
Support:
-
H.264 (highest: High profile)
-
Operating voltage:
-
100VAC ~ 240VAC
-
Operating frequency:
-
50Hz ~ 60Hz
-
Application:
-
Multi Conference System
-
Certificate:
-
CE / FCC / ROHS /ISO 9001
Quick Details
-
Type:
-
Audio Conference System, Video Conference System
-
Function:
-
VIDEO
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ITC
-
Model Number:
-
TV-620HC
-
Warranty:
-
3 years
-
HD:
-
1080P/60
-
Low latency:
-
Less than 200ms
-
Low bandwidth:
-
Ultra-low bandwidth, 1M for 1080P HD Conference
-
limited capacity:
-
one machine 16 users, can be seamlessly upgraded to 120 user
-
Support:
-
H.264 (highest: High profile)
-
Operating voltage:
-
100VAC ~ 240VAC
-
Operating frequency:
-
50Hz ~ 60Hz
-
Application:
-
Multi Conference System
-
Certificate:
-
CE / FCC / ROHS /ISO 9001
ITC video conferencing system 1080P Full HD motion sensor video conference camera
Camera TV-620HC
Embedded software: V2.0 embedded software for HD video conferencing camera
(20X, 1080P Full HD, wide viewing angle, multi interface s , multi protocol s )

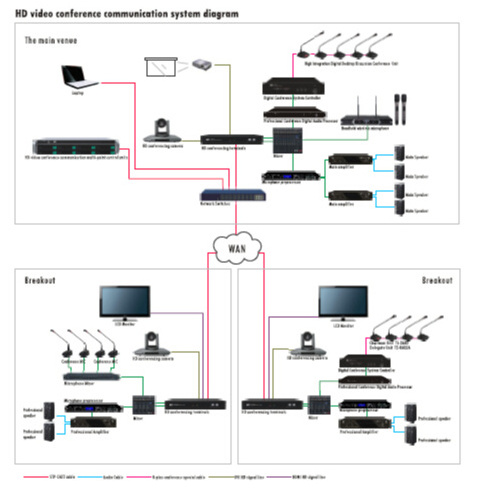

System Diagram
Description
* With completed function, excellent performance, rich interface;Advanced ISP processing technology and algorithms to make vivid image, uniform screen brightness, better light layering, high definition, good color reducibility. Support H.265 / H.264 encoding to make the picture more smooth and clear with low bandwidth . Applicable to remote education, teaching recording and broadcasting, conference system, remote training, telemedicine, trial system, emergency command system , etc .
Feature
* Full HD image:adopt1/2.8 inch high-quality image sensor, the max resolution up to 1920×1080, the output frame rate up to 60 FPS.
* Leading auto-focus technology: advanced auto-focus algorithm makes the lens fast, accurate and stable to complete auto focus.
* Low noise high SNR: low noise CMOS effectively ensures the camera's video ultra-high SNR. Adopt advanced 2D, 3D noise reduction technology, further reduce the noise while ensuring image resolution.
* Audio input interface: support 16000,32000,44100,48000 sampling frequency, support AAC, MP3, G711 audio coding.
* Super mute PTZ: adopt high-precision stepper motor and precision motor drive control to ensure PTZ low speed operation smoothly without noise .
* Various video output interface: support DVI (HDMI), 3G-SDI, wired LAN; 3G-SDI support 1080P60.
* Various video compression standard: support H.265 / H.264 video compression; support compression up to 1920x1080 resolution 60 FPS; support 2×1920×1080 resolution 30 FPS.
* Various network protocol s : support ONVIF, GB/T28181, RTSP, RTMP protocol, RTP multicast, meanwhile support RTMP push mode, easy link streaming media server (Wowza, FMS)
* Low power consumption sleep function: support low power consumption sleep / wake up, power consumption less than 400mW when sleep.
* Various control protocol: support VISCA, PELCO-D, PELCO-P protocol, support automatic identification protocol. Support network full command VISCA control protocol.
* Multiple Preset Bits : Support up to 255 presets (remote control setting adjust to 10).
|
Model |
TV-620HC |
|
Image Sensor |
1/2.8 inch high quality CMOS sensor. |
|
Effective Pixels |
2.07 million,16: 9 |
|
Video Signal |
ST interface video format: 1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/30/25/59.94/29.97 |
|
Lens Zoom |
20× optical zoom, f= 4.7~94mm. 10× digital zoom |
|
Perspective |
2.9° (narrow angle) ~55.4° (wide angle) |
|
Aperture Coefficient |
F1.6 ~ F3.5 |
|
Min Illumination |
0.5Lux(F1.8, AGC ON) |
|
Digital Noise Reduction |
2D 3D DNR. |
|
White Balance |
Automatic/ manual/one key white balance 3000K/ 4000K/5000K/6500K |
|
Focus |
Automatic/ manual/one key focus |
|
SNR |
>55dB |
|
Video Interface |
DVI( HDMI ), 3G-SDI , LAN |
|
Image Stream |
Dual stream output |
|
Video Compression Format |
H.265, H.264; Dual stream output. |
|
Control Signal Interface |
RS-232, with loop RS-232 output |
|
Control protocol |
VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps |
|
RS485 Interface |
1 C hannel RS485 C ontrol I nterface |
|
Audio Input Interface |
A-IN, Dual channeltwo channel 3.5mm line input |
|
Audio Compression Format |
AAC, MP3 , G.711 . |
|
Network Interface |
100M network interface(10/100 BASE-TX), support network VISCA control protocol |
|
Network Protocol |
RTSP, RTMP, ONVIF, GB/T28181, RTP multicast |
|
Power Interface |
HEC3800 power socket (DC12V) |
|
Horizontal Rotation |
-170°~ +170° |
|
Pitching Rotation |
-30°~ +90° |
|
Horizontal Control Speed |
0.1 ~ 100°/s |
|
Pitch Control Speed |
0.1~ 45°/s |
|
Power Adapter |
Input AC110V-AC220V,Output DC12V/1.5A |
|
Input Current |
1A( MAX ) |
|
Power Consumption |
12W(MAX) |
|
Working Temperature |
-10℃~ +50℃ |
|
Working Humidity |
20%~ 80% No n condensing |
|
Size( W*H*D ) |
258mm×172mm×169mm |
|
Weight |
1.54kg |
