Quick Details
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
L4200 x W2000 x H2900mm
-
Power (kW):
-
55KW
-
Weight (KG):
-
2500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Machine type:
-
PU FoamMachine
-
Power:
-
380V 50HZ 35-60kw
-
Raw material:
-
isocyanate and polyol
-
Output:
-
10-5000g/s
-
Application:
-
PU products
-
machine type:
-
high pressure
-
Weight:
-
2500KG
-
Certification:
-
CE
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
Marketing Type:
-
New Product 2020
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LINGXIN
-
Machine Type:
-
pu foam machine
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
L4200 x W2000 x H2900mm
-
Power (kW):
-
55KW
-
Weight (KG):
-
2500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Machine type:
-
PU FoamMachine
-
Power:
-
380V 50HZ 35-60kw
-
Raw material:
-
isocyanate and polyol
-
Output:
-
10-5000g/s
-
Application:
-
PU products
-
machine type:
-
high pressure
-
Weight:
-
2500KG
-
Certification:
-
CE
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
Marketing Type:
-
New Product 2020
Technical Parameter:
Injection output: 2-5000g/s
Material tank volume: 30L-500L
Mixing ratio range: 100:40-200
Mixing head: 2800-5000rpm, forced dynamic mixing
Compressed air needed: dry, oil free, P:0.6-0.8MPa Q:600NL/min(customer-owned)
Nitrogen requirement: P:0.05MPa Q:600NL/min(customer-owned)
Temperature control system: heat:2×3KW
Input power: three-phase five-wire 380V 50HZ Other power customizable
Rated power:8KW-12KW
Color( customizable): White/Red/Blue
Weight: 2000-2500Kg
Dimension: 4200(L)*2000(W)*2900(H)mm

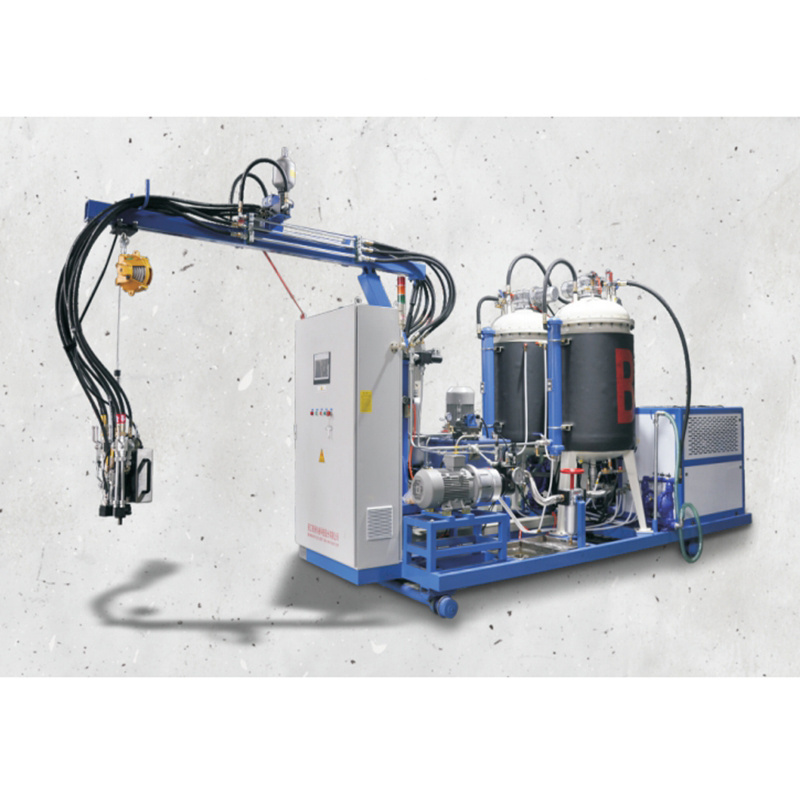

Equipment Overview:
PU foaming machines have wide application in the market, which have features of economy and convenient operation and maintenance,etc. The machines can be customized according to customers' requirement for various output and mixing ratio.
Application Cases :
Pillow, chair, seat cushion,wheel, crown molding, wall panel, steering wheel, bumper, integral skin, fast rebound, slow rebound, toys, knee pad, shoulder pad, fitness equipment, thermal insulation material filling, bicycle cushion, car cushion, hard foaming, refrigerator material, medical appliance, insole etc.
