copper core motor
International copper core motor
Voltage can be customized
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DZJX
-
Voltage:
-
220~~580
-
Weight (KG):
-
50 kg
-
Product name:
-
grain suction machine
-
After Warranty Service:
-
Online support
-
After-sales Service Provided:
-
Video technical support
Quick Details
-
Power:
-
Other
-
Warranty:
-
1 Year
-
Width or Diameter:
-
Other
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DZJX
-
Voltage:
-
220~~580
-
Weight (KG):
-
50 kg
-
Product name:
-
grain suction machine
-
After Warranty Service:
-
Online support
-
After-sales Service Provided:
-
Video technical support
Product Description

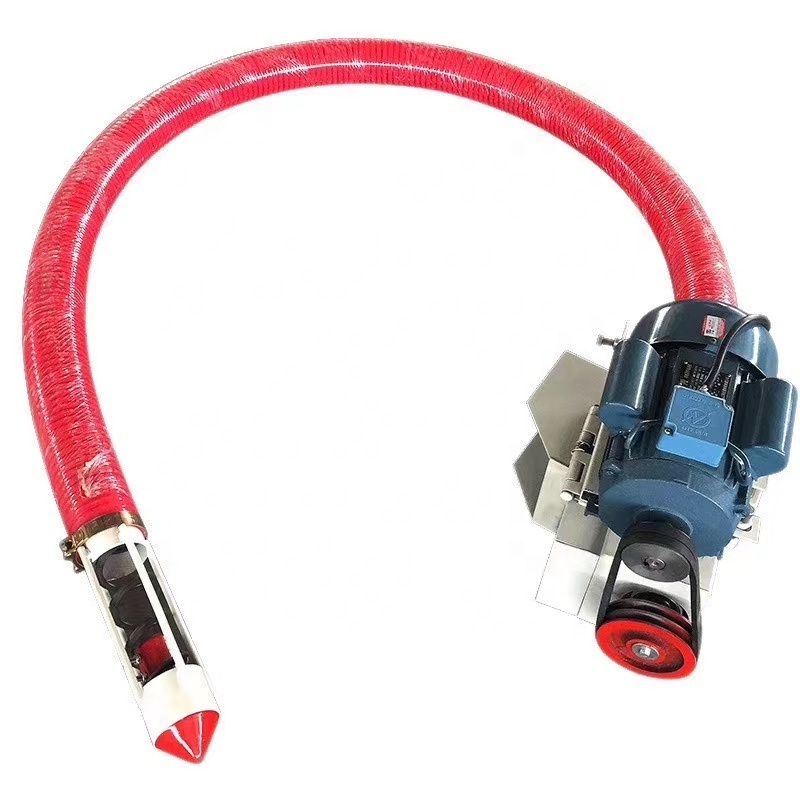

DZ Flexible Screw Conveyor
Working principle
Flexible Screw Conveyor uses revolving screw to move the conveyor material in fixed casing, the bearings of head and tail are moved to shell, hanger bearing adopts sleeve bearing, which have dust proof sealing device, bearing bush usually adopts powder metallurgy,convey concrete adopts felt bushing, hanger shaft and screw shaft are connected by slider.
Flexible screw conveyor can transport crops (corn, wheat, rice, beans, etc.), cement, sand, plastic and wood chips and other materials, easy to move, high efficiency and low energy consumption. The conveying distance is 3-30 meters .
WHY CHOOSE US
DETAILS DISPLAY NOT AFRAID TO ENLARGE THE DISPLAY
Thicken PVC tube
30 degrees below zero doesn't harden
.
Uniform color
Not easy to rust
Good toughness
Good wear resistance
The outer edge through special treatment, smooth and will not cause damage to the pipe wall .
Import spiral
Durable
Feed smoothly
True view from Factory
Application
The flexible screw conveyor are suitable for continuously conveying loose materials such as powder, granular and small piece material, which includes: corn, wheat, beans, wood chips, clay powder, pulverized coal, cement, sand, grain, small piece of coal, cobble and cast iron filings, etc.
Technical parameter
|
Model
|
DZ100
|
DZ120
|
DZ160
|
|
Spiral diameter(mm)
|
100
|
120
|
160
|
|
Length(m)
|
3-30
|
3-30
|
3-30
|
|
Power(kw)
|
2.2-5.5
|
2.2-5.5
|
4-5.5
|
Packing & Delivery
1. The inner packaging:stretch film; outer packaging:standard export fumigation-free wooden box(
FOR FREE
)
2. According to customer requirements
