- Product Details
- {{item.text}}
Quick Details
-
Installation:
-
External
-
Brand Name:
-
OEM
-
Model Number:
-
ZHE-MSR90
-
Place of Origin:
-
Guangdong, China
-
Item Name:
-
Magnetic Card Smart Card Reader Writer
-
Standard:
-
ISO7811-12, AAMVA
-
Directional:
-
Bi-directional
-
Tracks:
-
1/2/3
-
Power supply:
-
DC 5V 5%
-
Head Funcition:
-
Read 1.5mm
-
Card Thickness:
-
PVC 0.76±0.08mm
-
Operating Speed:
-
15~120cm/sec
-
Head Life:
-
800,000 card passes
Quick Details
-
Type:
-
Memory Stick Card, SD Card
-
Interface:
-
usb
-
Card Slots:
-
All in 1 / Multi in 1
-
Installation:
-
External
-
Brand Name:
-
OEM
-
Model Number:
-
ZHE-MSR90
-
Place of Origin:
-
Guangdong, China
-
Item Name:
-
Magnetic Card Smart Card Reader Writer
-
Standard:
-
ISO7811-12, AAMVA
-
Directional:
-
Bi-directional
-
Tracks:
-
1/2/3
-
Power supply:
-
DC 5V 5%
-
Head Funcition:
-
Read 1.5mm
-
Card Thickness:
-
PVC 0.76±0.08mm
-
Operating Speed:
-
15~120cm/sec
-
Head Life:
-
800,000 card passes

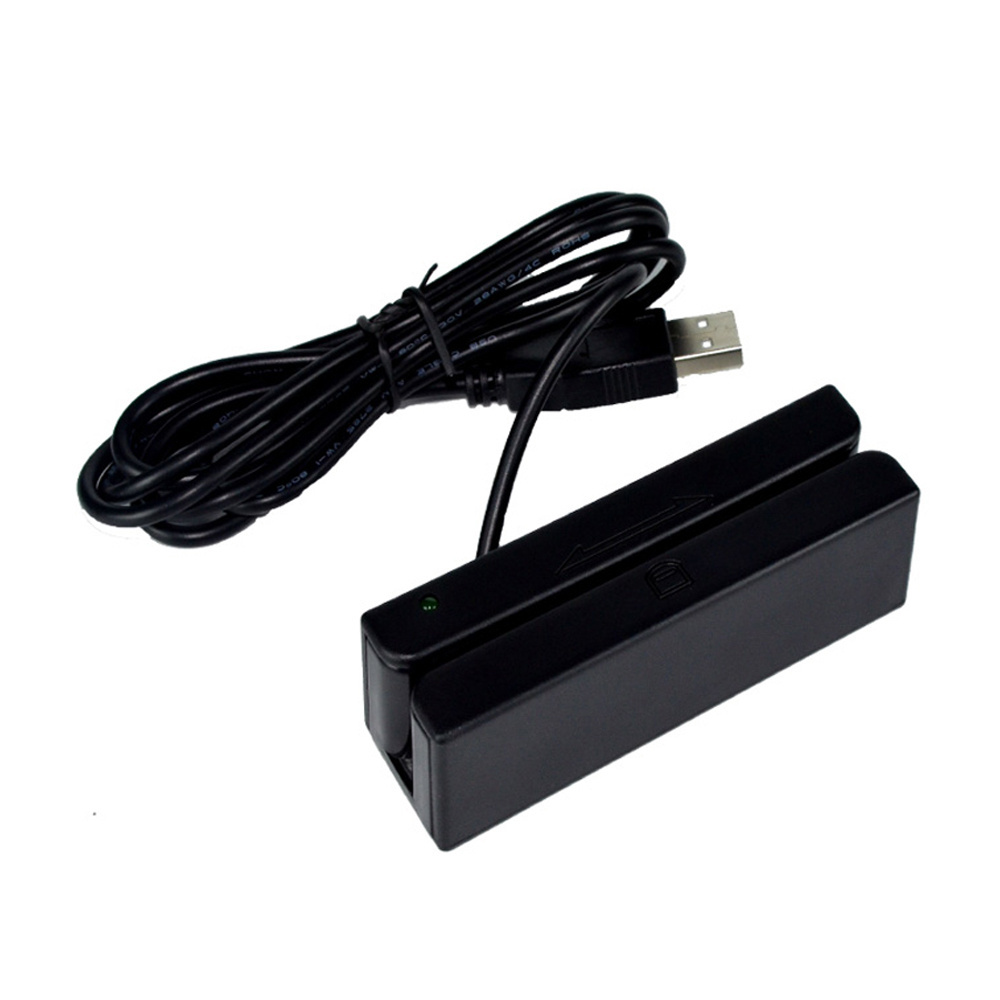

MSR USB Interface Magnetic Card Smart Card Reader Writer
MRS90/ MSR135 is a card swipe reader in small size with low power consumption and strong compatibility. It can identify magnetic cards with different recording density made according to different standards. It supports USB,RS232 and PS2 keyboard interfaces. Power supply: DC5V.
Features
- Small in size, easy to handle
- Bi-direction read capability
- Reads up to 3 tracks of data with a single swipe in either direction
- Reads High and Low coercivity magnetic stripe cards
- Can read ISO7811/7812 and other data format
- 1,000,000 Card swipe long life read head
- USB interface, RS232 interface and PS2 interface optional
- Power is soured from PC keyboard
Specification
| Item | Description | ||
| Item No | ZHE-MSR90 / ZHE-MSR135 | ||
|
Standard |
ISO7811/7812 |
||
| Track Position |
ISO1(1ATA) |
ISO2(ABA) |
ISO3 ( MINTS) |
|
Recording Density |
210BPI |
75BPI |
210BPI |
|
Recording Capacity |
79 characters |
40 characters |
107 characters |
|
Power Supply |
DC+ 5 V±5% |
||
|
Operating Speed |
15 ~ 120cm/sec |
||
|
Identification ef f ective rate |
Above 99.5% |
||
|
Power Supply |
DC+ 5 V±5% |
||
|
Electric Current |
65mA(max) |
||
|
Interface |
USB / RS232 / PS2 interface | ||
|
Operating Location |
Indoors | ||
|
Head Life |
800,000 card passes | ||
| Temp & Hum for Operating | -20°C ~ 70°C, 0 ∼ 90%RH | ||
| Temp & Hum for Storage | -30 °C ~ 70 °C lower 90%RH | ||
| Product Dimension |
90mm*27mm*28mm/135m m*37mm*42mm |
||
| Package Dimension |
140mm*40mm*65mm/170mm*60mm*80mm |
||
| Weight | A pprox 82g / 150g | ||
