Quick Details
-
Wire Diameter:
-
0.3-1.5mm
-
Min inner diameter of winded coils:
-
30mm
-
Max Outter diameter of winded coils:
-
130mm
-
Height of winded coil:
-
60mm
-
Input power:
-
220V/50/60Hz AC
-
Engineers:
-
rich experience and research team
-
Motor:
-
3 phase 750W/220V
-
Magazine diameter:
-
300mm
-
winding machine models:
-
11 different models
-
winding speed:
-
100RPM
Quick Details
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
YIBO or OEM
-
Model Number:
-
YF-130A
-
Wire Diameter:
-
0.3-1.5mm
-
Min inner diameter of winded coils:
-
30mm
-
Max Outter diameter of winded coils:
-
130mm
-
Height of winded coil:
-
60mm
-
Input power:
-
220V/50/60Hz AC
-
Engineers:
-
rich experience and research team
-
Motor:
-
3 phase 750W/220V
-
Magazine diameter:
-
300mm
-
winding machine models:
-
11 different models
-
winding speed:
-
100RPM
1.YF-130A current transformer toroidal winding machine applications:
YF-130A current transformer toroidal winding machine is a high-speed device developed according to the technology requirement of small inner of miniature transformer, small wire diameter, many turns and great number.
2.YF-130A current transformer toroidal winding machine technical parameters:
| Model No. |
YF-130A
|
| Wire Diameter |
0.3-1.5mm
|
| Min finished inner coil |
30mm
|
| Max finished outter coil | 130mm |
| Height of winded coil | 60mm |
| Max Winding Speed |
100rpm
|
| Power |
0.75KW
|
|
Size of Machine |
50 0*800*10 000mm |
3.current transformer toroidal winding machine features:
1.Japan Mitsubishi PLC control High productive ,human-computer interaction.
2.Stepping motor speed control for accurate winding, Winding speed can be specified using the front panel keys.
3.User friendly control console with touch screen
4.High-tech shuttle for highest efficiency.
5.Microprocessor based controls, easy for program-setting and handling for operator.
6.Large memory capacity for storing steps of winding.
7.Password protection for administrative settings as well as operators setting.
8.Easy programming of multi-step, multi-speed settings.
9.Heavy machine weight design to avoid machine shaking while winding.
10.Automatically laying wire, change winding direction.
11.Realize dual-wire, multi-wire winding , forward and backward winding, preset 100 different kinds of wire data in machine.
4.Yibo company advantages:
1.The only manufacturer who can professional supply all kinds of winding machines in transformer industry , such as current transformer winding machine, voltage transformer winding machine winding machine for mirco-transformer etc ,with best factory price.
2.Professional rich experience engineers and research team, our engineers have 25 experience who serviced many years in ABB, many patented products are owned by us.
3.Have a line and lab special for producing CT and PT we can winding samples and test in our lab, our principle is we promise make qualified products, testing in our lab first, then delivery machines to clients.
4.Professional Technique training, our engineer available training technique overseas or you send engineers learn technique from our factory.
5. Best and full range of service :
Before service: We supply winding samples first and test it in our lab.
Mid- service: We promise adopts good quality materials and electronic components to supply best machine to clients.
After-service: We guarantee 12 month quality warranty period, and we responsible for training clients control winding ability.
5.FAQ:
1.Winding machine species: 11 kindds,Current transformer winding machine,Voltage transformer winding machine,rectangular winding machine,fast speed winding machine,Mini winding machine ect
2.Warranty: 15 months.
3.Delivery time: 7-15days
4.Payment terms: T/T L/C
5.Customized service: yes
6.Supporting service: We supply APG machine,APG molds,casting molds,Laser marking machine,foil winding machine,equipments service for electric industry.

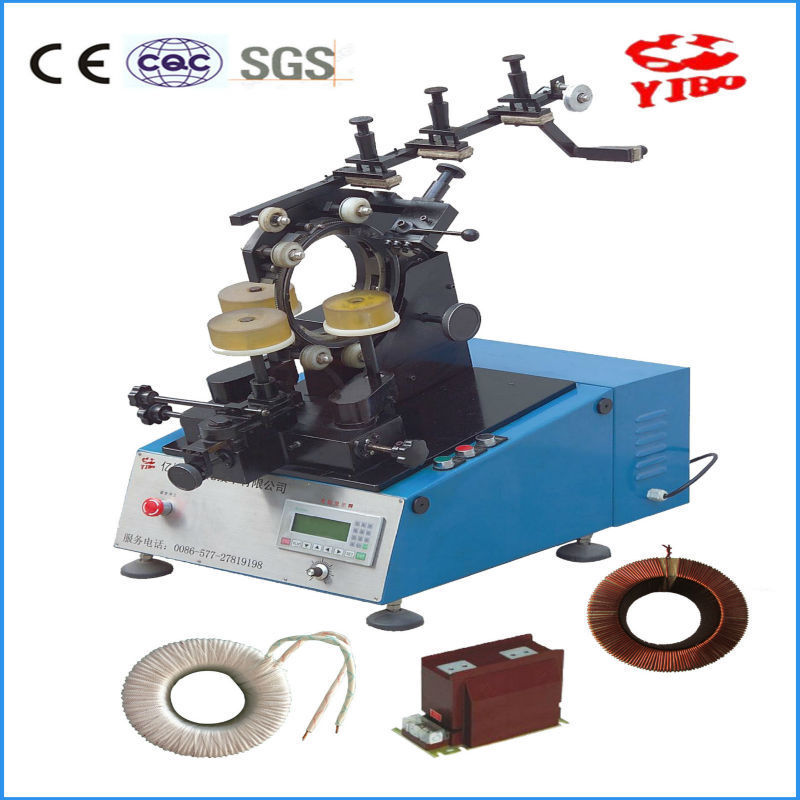

6.YF-130A toroidal winding machine images:
